Do you find that pesky chatter is disrupting your machining projects, making it hard to achieve the precision you need? Chatter, those annoying vibrations during machining, can be a real headache. But fear not!
This guide will answer your machining troubles with ten straightforward solutions. From choosing the right tools to adjusting cutting speeds, we'll show you how to conquer chatter and make your machining work precise and efficient.
So, read the article to eliminate the chatter for precision in your projects!
Chatter in machining is a pervasive and troublesome issue that can significantly hinder machining operations' precision, efficiency, and quality.

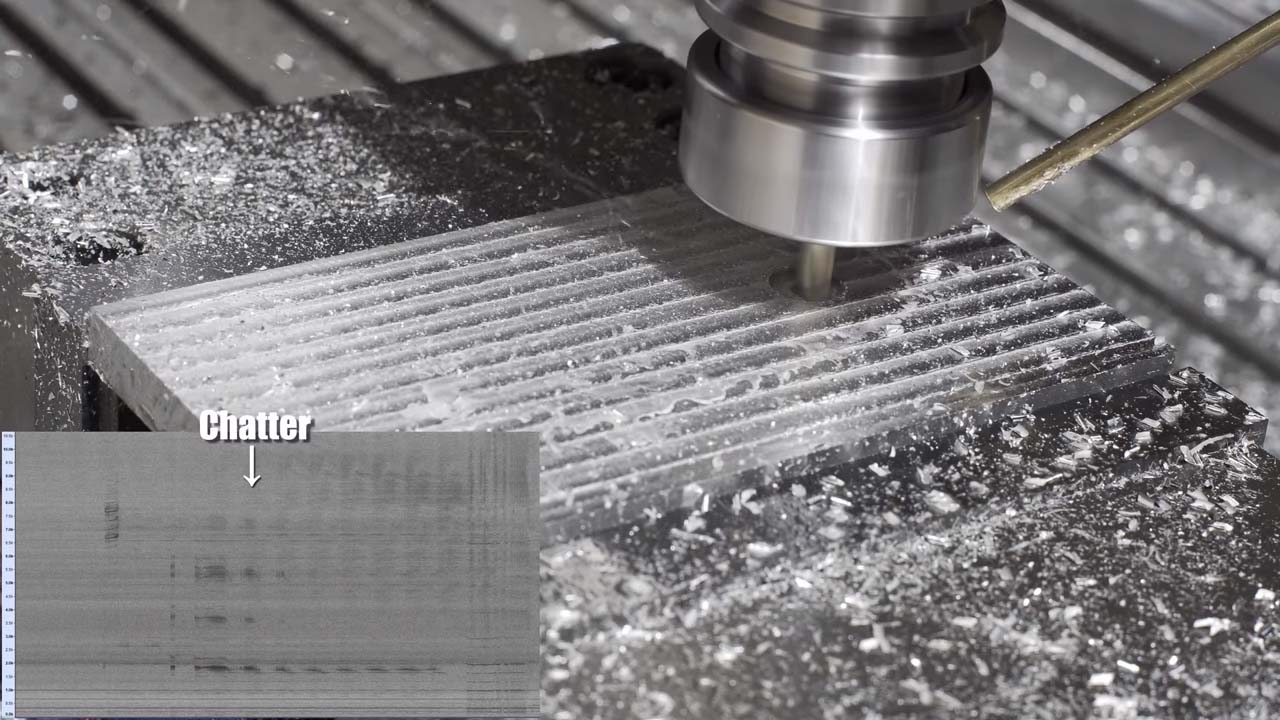

At its core, chatter is characterized by the unwanted, erratic vibrations that plague the machining process. These vibrations manifest as rapid, small-scale motions of the cutting tool and workpiece that occur uncontrolled. As a result, the outcome is far from the precise, smooth finish that machining endeavors to achieve.
The analogy to shaky handwriting is quite apt. Just as your handwriting becomes illegible and jagged when your hand quivers while writing, the workpiece's surface in machining becomes marred with irregular and unsightly patterns due to the uncontrolled shaking and vibrations by chatter.
These vibrations can emanate from various sources within the machining system, such as the cutting tool, the machine tool itself, or even the material being worked on. When these elements are not properly synchronized and harmonized, the resulting vibrations can harm the machining process.
The consequences of chatter extend beyond mere aesthetic concerns. They delve into the realm of functionality, cost, and efficiency. Chatter can lead to premature wear and damage to cutting tools, necessitating frequent replacements and increasing operational costs.
It can compromise the dimensional accuracy of machined parts, rendering them unusable for critical applications. Furthermore, chatter often forces operators to reduce cutting speeds and feed rates, prolonging machining times and diminishing overall productivity.
Chatter comes in different forms, and understanding these types is essential for effective mitigation:
Regenerative chatter is a tool chatter that occurs due to a cyclic interaction between the cutting tool and the workpiece. Imagine a scenario where the tool's cutting-edge encounters the workpiece material at a specific frequency.
If the vibrations generated by this interaction match the natural frequency of the machine or the tool itself, a self-reinforcing cycle of chatter can ensue. This means the tool continuously re-engages with the workpiece at the same problematic spot, leading to amplified vibrations. Regenerative chatter often produces a distinctive, rhythmic pattern on the machined surface.
Another type of tool chatter is friction-induced chatter. In this case, the chatter arises due to the stick-slip motion between the tool and the workpiece. When there's an imbalance in the forces involved in the cutting process, the tool can momentarily stick to the workpiece and then suddenly release, causing vibrations. These irregular vibrations lead to erratic tool movement and surface finish.
Modal chatter, or structural chatter, is primarily linked to the machine tool's and the workpiece's inherent resonant frequencies. When the machining conditions align with one of these natural frequencies, it triggers a resonance effect.
This resonance results in intensified vibrations, which, if left unaddressed, can lead to significant machining problems. Modal chatter is typically characterized by low-frequency vibrations that affect the entire machine structure.
Forced chatter occurs when external forces, such as an unbalanced workpiece or irregular clamping, induce vibrations in the workpiece. These vibrations can propagate through the workpiece, causing irregularities on the machined surface. Unlike modal chatter, which involves internal machine and workpiece dynamics, forced chatter stems from external influences.
Avoiding or reducing chatter in machining is not just about achieving a smoother process; it brings a multitude of benefits that impact the quality, efficiency, and cost-effectiveness of your operations. Here are some key advantages:
· Enhanced Surface Finish: Chatter-free machining results in a superior surface finish on the workpiece. This is particularly crucial in industries like aerospace and medical, where precise and smooth surfaces are non-negotiable.
· Extended Tool Life: Reduced tool wear and prolonged tool life are natural byproducts of chatter avoidance. This means fewer tool replacements, lower tooling costs, and increased machining efficiency.
· Improved Dimensional Accuracy: Chatter can lead to dimensional inaccuracies in machined parts. Avoiding chatter ensures that components meet stringent tolerances and specifications, reducing the risk of rejected parts and rework.
· Increased Productivity: With chatter out of the equation, machining processes can run at higher speeds and feeds, resulting in shorter cycle times and increased productivity.
· Cost Savings: The cumulative impact of reduced tool wear, improved productivity, and minimized rework leads to significant cost savings over time.
The chatter in machining is more than just an irritating noise; it has a cascade of adverse effects that can compromise the machining process's quality, efficiency, and economics. Understanding these consequences is crucial for machinists and manufacturers to appreciate the significance of addressing chatter-related issues. Here are the primary consequences of chatter in machining:
· Irregular Surface Finish: Chatter-induced vibrations result in erratic tool movement, leaving irregular and unwanted patterns on the machined surface. This negatively affects the aesthetics of the finished product, making it unsuitable for high-precision applications.
· Surface Roughness: Chatter can cause micro-level roughness on the workpiece's surface, which is unacceptable in applications requiring smooth and polished surfaces, such as automotive parts, aerospace components, and medical devices.
· Reduced Tool Life: The vibrations generated during chatter increase tool wear rates, reducing the lifespan of cutting tools. Frequent tool changes result in increased tooling costs and machine downtime.
· Edge Chipping and Breakage: Chatter can cause localized stresses on the tool edge, leading to chipping or breakage. This not only necessitates tool replacement but can also result in scrapped workpieces.
· Slower Machining Speed: To mitigate chatter, machinists often reduce cutting speeds and feed rates, slowing the machining process. This prolonged cycle time decreases overall productivity.
· Increased Cycle Time: The need for additional passes to rectify chatter-induced surface defects contributes to longer cycle times, affecting production schedules and delivery commitments.
Avoiding or minimizing chatter in machining is crucial for achieving optimal results in precision manufacturing. Here are ten effective strategies to help you address and mitigate the disruptive effects of chatter, ensuring that your machining processes run smoothly and efficiently.
One of the foundational steps in chatter avoidance is selecting the right tool for the job. The tool's material, geometry, and condition play a significant role in vibration control. Ensure that your tools are pristine with sharp cutting edges and proper geometries to minimize the likelihood of chatter.
A well-maintained and properly set up machine is essential for chatter reduction. Regularly inspect and maintain your machining equipment to guarantee stability and rigidity. Checking the alignment of machine components, such as the spindle, is crucial to minimize vibrations that can lead to chatter.
By keeping your machine in top-notch condition, you minimize the risk of unwanted vibrations that can lead to chatter. It's like having a sturdy workbench for a craft; a wobbly table won't do. Pay special attention to the alignment of critical machine components, such as the spindle, as their proper alignment is crucial in minimizing vibrations and ensuring a smooth, chatter-free machining experience.
Securely clamping or fixturing the workpiece is paramount to prevent any undesired movement during machining. Proper work-holding techniques, such as soft jaws, help evenly distribute clamping forces, reducing the risk of chatter-induced disruptions.
Fine-tuning cutting parameters is a key aspect of chatter avoidance. Adjusting cutting speed, feed rate, and depth of cut to optimal values is critical. Following recommended cutting parameter guidelines for specific materials and tooling is essential for chatter-free machining.
Effective planning of toolpaths can prevent chatter. Avoid sudden changes in direction, as these can induce vibrations. Utilizing adaptive toolpaths and smoothing algorithms ensures that the tool maintains consistent engagement, reducing the chances of chatter.
Investing in anti-vibration tool holders and damping systems is a proactive measure to absorb and mitigate vibrations. These systems act as shock absorbers, reducing the impact of chatter on the machining process. Additionally, using tuned mass dampers or vibration isolators can minimize resonance effects.
Properly applying coolants and lubricants serves two purposes: reducing friction and dissipating heat. Both factors can contribute to chatter. Maintaining an effective cooling system ensures temperature stability, mitigating chatter risks.
Reducing tool overhang, the distance between the tool holder and the cutting edge enhances tool stability. Longer tool overhangs are more prone to deflection and vibrations. Using shorter tool holders is an effective strategy.
Equipping operators and machinists with the skills to recognize and address chatter issues is paramount. Training programs emphasizing chatter recognition and resolution techniques are essential for proactive chatter management.
Implementing advanced chatter detection systems, such as sensors and monitoring software, can identify chatter as it occurs. Real-time control systems that adjust machining parameters on the fly to mitigate chatter are also valuable additions to your machining setup. These systems allow for adaptive responses to changing machining conditions, ensuring that chatter-related disruptions are kept at bay.
Tool selection and setup are pivotal in the battle against chatter during machining processes. Think of it as choosing the right brush and canvas for a masterpiece; the wrong tools can lead to a chaotic and frustrating experience. Here's a closer look at the importance of tool selection and setup in avoiding or reducing chatter:
Different materials require different tools. Selecting the right tool material and geometry for the material you're machining is crucial. Just like using the right brush for a particular type of paint, the tool should match the material's properties to minimize the risk of chatter.
Some cutting tools come equipped with vibration-damping features. These features act like shock absorbers, reducing the impact of vibrations on the tool. Choosing tools with such attributes can greatly contribute to chatter reduction.
Ensuring that the tool is installed correctly is fundamental. It's like setting up your canvas on an easel; a stable foundation is essential for precision. Properly securing the tool in the toolholder and making sure it's correctly aligned reduces the chances of tool vibrations that can lead to chatter.
Unbalanced toolholders can exacerbate chatter. Balancing toolholders by adding counterweights or using precision-balanced toolholders helps maintain stability during machining, preventing chatter.
By paying meticulous attention to tool selection and setup, you can equip yourself with the right "brushes and canvas" for your machining masterpiece. This proactive approach not only minimizes the risk of chatter but also sets the stage for smoother, more precise, and efficient machining operations.
Our CNC vertical machining centers are not just machines but your allies in the battle against chatter. These machines' exceptional stability, precision, and advanced control systems work harmoniously to prevent chatter-related disruptions.
With our products, you can trust that your machining processes will run smoothly, delivering high-quality results without the headaches of chatter-induced defects. Invest in our CNC machining centers and experience the difference in chatter-free machining.
CNC machining uses computer-controlled tools to precisely shape and cut materials. Chatter is a concern in CNC machining because it refers to the unwanted vibrations that can affect the quality of the finished product. These vibrations can lead to surface irregularities, tool wear, and reduced machining efficiency.
Chatter can have several negative effects on machined parts. It can result in irregular surface finishes, dimensional inaccuracies, and even tool damage. These issues can lead to rejected or subpar components, increased production costs, and delays.
What Are Some Common Signs Of Chatter During CNC Machining?
Signs of chatter include unusual machine noises, tool vibrations, erratic tool movement, and surface finish defects. Operators may also notice tool wear or premature failure, indicating chatter-related problems.
How Can CNC Machining Centers Help Mitigate Chatter?
CNC machining centers with advanced control systems, rigidity, and stability can help mitigate chatter. These machines offer precise control over cutting parameters, tool engagement, and toolpath planning. Additionally, some machines are equipped with chatter detection and suppression mechanisms to address chatter as it occurs.
Are There Specific Materials More Prone To Chatter In CNC Machining?
Yes, some materials are more prone to chatter due to their properties. For example, materials with low thermal conductivity, high hardness, or flexibility can be more challenging to machine without inducing chatter. Machining strategies and tooling may need to be adjusted for such materials.
