Applications

Double Column Vertical machining adapts to the characteristics of traditional double-column machines with high rigidity, symmetrical structure, and high stability. Through element analysis, optimizing the structure of basic components, and improving the dynamic performance of the product we obtain the perfect combination of high power, high torque, high efficiency, and high precision processing. It is suitable for large and heavy processing fields such as shipbuilding, metallurgy, and petrochemical.

VMCs are automated machine tools for metalworking applications where the main spindle is aligned vertically. Nowadays professional machine shops and manufacturing plants mostly use CNC-controlled machine tools. A VMC is a machine suitable for machining operations such as milling, drilling, boring, tapping, thread cutting, and more.

The drilling and tapping machining center series is widely used for rapid drilling, tapping, and milling of small parts such as electronics, sanitary ware, automobiles, parts, medical equipment, etc.; it is also suitable for small molds and precision copper processing.

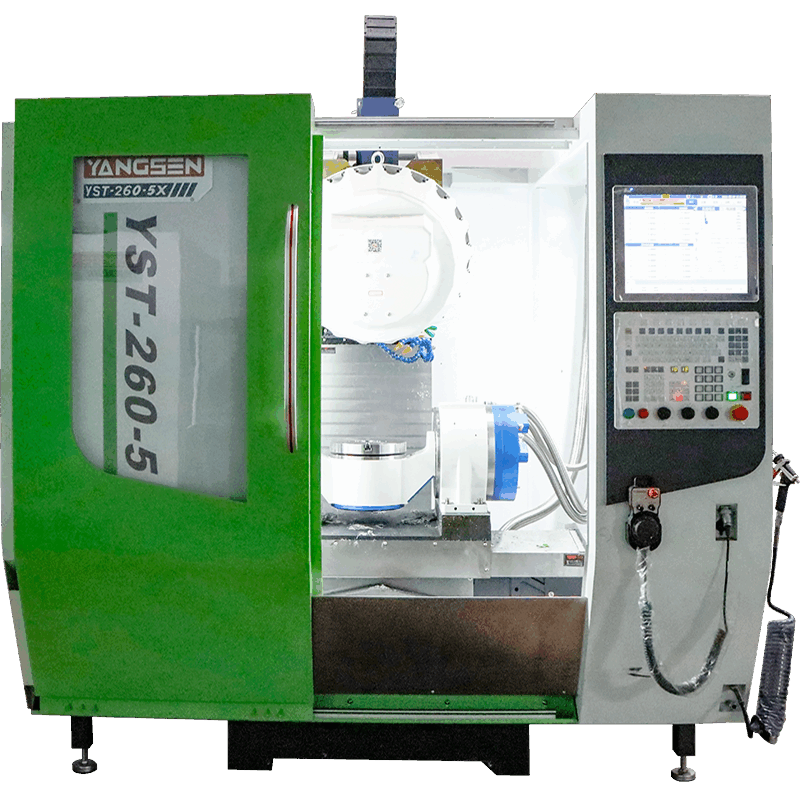

A 5-axis machine is an advanced CNC machining device with five independently moving axes that can be precisely controlled in the X, Y, Z, A and B directions, thereby achieving efficient and high-precision machining of complex parts. This machine tool adds two rotating axes (usually A and B axes) so that the tool can approach the workpiece from any angle, greatly improving the flexibility and efficiency of machining. The main advantages of 5-axis machine tools: high efficiency, high precision, extended tool life, suitable for complex parts

5-Axis Machine YSMT-6042-5X Gantry CNC Machining Center Planer Milling Machine CNC machining centers are ideal for composite materials, aluminum, and metals processing. The advanced design of its structures, result of Yangsen Advanced Materials Technology’s continuous investments in research and development, and the sophisticated technological solutions adopted provide rigidity, precision over time, speed and flexibility,

5-axis machining provides infinite possibilities as to the part sizes and shapes you can effectively process. The term “5-axis” refers to the number of directions in which the cutting tool can move. On a 5-axis machining center, the cutting tool moves across the X, Y and Z linear axes as well as rotates on the A and B axes to approach the workpiece from any direction. In other words, you can process five sides of a part in a single setup.

5-Axis Machining Center YSMD10052-5A Planer Milling Machine The 5-axis Gantry milling center is a very large machine that allows machining operations on 5- axis and 5-sides to be carried out in one setup part clamping, from roughing to finishing. It is particularly suitable for large complex parts intended for machining molds, dies, stamping tools, models and precision parts. The choice of fixed Portal architecture makes it possible to offer a machine with maximum rigidity for extremely accurate machining in various and hard materials. The modular design and the many alternatives and equipment offered make it easy to meet all customer requirements.

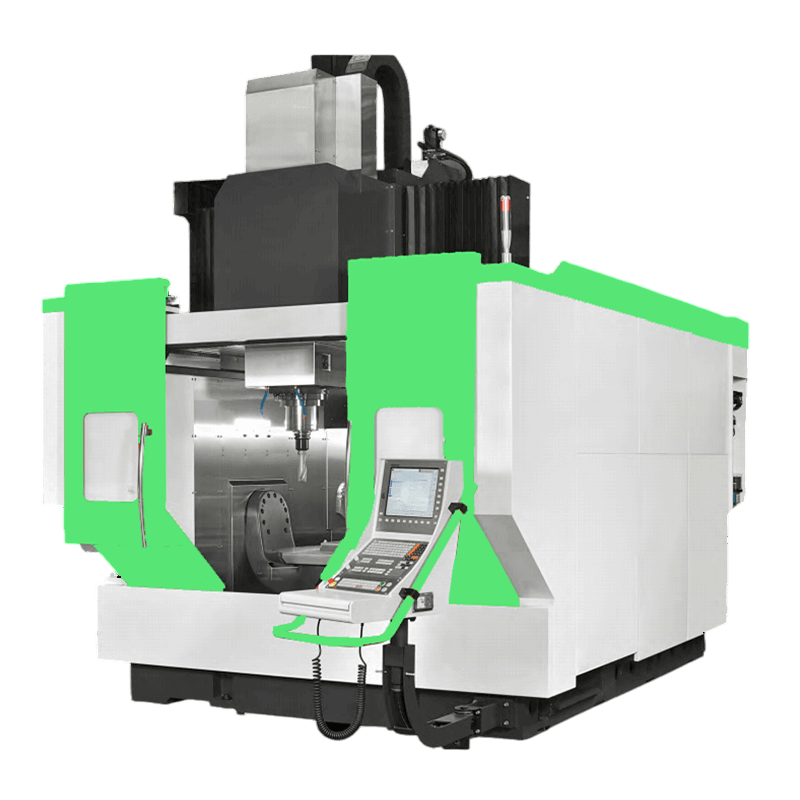

5-Axis Machining Center YSMD-8045-5A Gantry Machine Double Column CNC Machine A 5-axis gantry machining center is a highly advanced and versatile machine tool that enables precision milling and drilling operations with enhanced efficiency and accuracy. This type of machining center offers the capability to move the cutting tool along five different axes simultaneously, enabling complex machining tasks.

The Gantry Moving 5-Axis CNC Machine is a cutting-edge machine designed for precision and versatility in the woodworking and manufacturing industries.

Large gantry 5 axis CNC machine is heavy duty industrial CNC router machine used for trimming formed parts, molds, patterns, composites, automotive, large envelope parts, other 3D surface milling and 3D shape cutting projects.

Large 5 axis CNC machine, CNC gantry milling machine for sale, 5-Axis Gantry Type Milling Center. The YSMV3018 is a 5-axis gantry mill designed for complex, large-part machining, such as airframe components, layup molds, and composite structures.

A horizontal machining center (HMC) is a machining center with its spindle in a horizontal orientation. This machining center design favors uninterrupted production work. One reason for this is that the horizontal orientation encourages chips to fall away, so they don't have to be cleared from the table. Our HMCs cut down operating costs by decreasing the number of damaged parts produced, increasing the repeatability, and accomplishing the most precise cuts with the assistance of rapid tool change-out.

The overall layout of Gantry Double Column Machining is a fixed-beam beam structure, with the workbench moving forward and backward; the left and right columns and the bed are distributed on both sides of the workbench. The gantry worktable moves forward and backward on the X axis, the ram moves vertically on the skateboard in the Z direction, and the skateboard and the ram move horizontally on the beam in the Y direction.

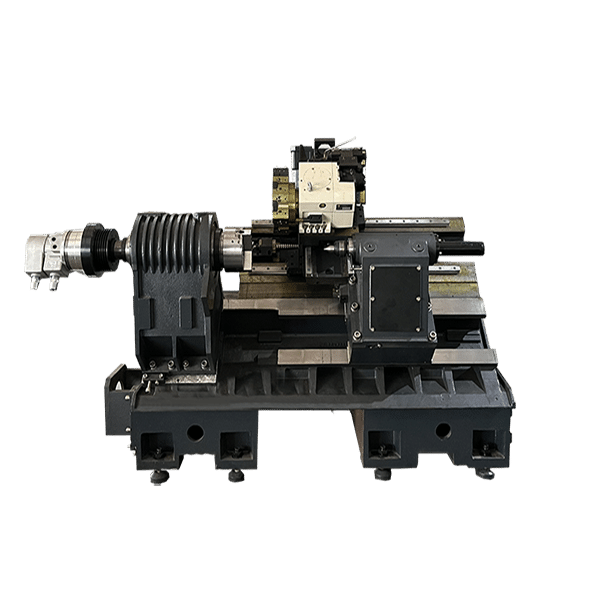

Horizontal Lathe Machine CNC Lathe YSC-580 adopts linear rolling guide imported from Taiwan to meet high-speed and high-efficiency requirements, reduce frictional resistance and temperature rise deformation, improve machining accuracy, and ensure long-term stability of cutting machining accuracy. The inclined bed CNC lathe adopts domestic or imported high-rigidity horizontal hydraulic servo turret tool holder, which has high positioning accuracy, fast tool change speed and small deformation in heavy cutting. The inclined bed CNC lathe adopts a 45-degree overall inclined bed structure, which can still maintain the stability of the machine tool precision during heavy cutting.

Vertical lathes, or VTLs, are one of the most traditional machine types. They are ideal for heavy-duty machining of medium to large parts. With different technologies, vertical lathes are also becoming more and more multifunctional. Our vertical lathe increases productivity by providing stable machining of thin and odd-shaped workpieces. The box-type base and column make a highly dependable, highly rigid structure and the headstock with flange construction minimizes the effects of thermal deformation and vibration, which ensures stable, accurate cutting.

The workbench of the vertical machining center is usually a cross slider T-slot workbench structure, two sets of vertical motion mechanisms are responsible for the movement direction, and the X-direction feed table cover is responsible for the Y-direction feed guide rail. Workbench, horizontal machining center is only designed for movement in the X direction or Y direction. The form of the workbench is generally a grid screw hole workbench and a rotary workbench. It is relatively easy to switch between the two workbenches. YSV-855-5X is customized, combined with 5-axis system by YSV-855. Used in the medical industry.

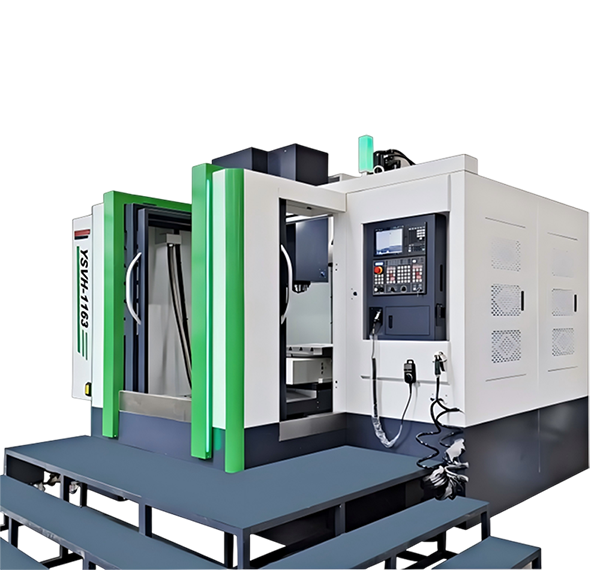

Vertical machining center is a machining center whose spindle axis and worktable are set vertically. It can perform various vertical processing, such as milling, drilling, boring, tapping, cutting and other operations. It is mainly suitable for processing complex parts such as plates, discs, molds and small shells.

The double column machining center is mainly used for the processing of large boxes, complex surface molds, large-shaped parts, and plate parts.

High-Precision Gantry Machining Center Double-Column Heavy-Duty Turning/Milling/Grinding/Cutting/Drilling Hardware Machining Center

The structures of major components for double-column machines have been designed with the finite element method. We refine our design and improve product quality. provides stability, and power required to deliver super-sized precision for meticulous industries such as electronics, and automotive. The solid double-column construction ensures greater rigidity and closer tolerances, making this machine well-suited for the efficient machining of general parts and rapid die & mold jobs.
