Application of Gantry Machining Center

Introduce:

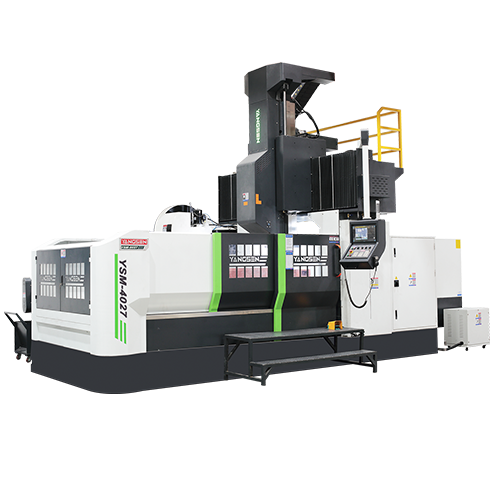

A gantry machining center is a machine tool used in various industries for precision machining operations. It has a unique design characterized by a bridge-like structure supported by two columns forming a gantry. Horizontal beams or gantry span the distance between columns and move along a vertical axis. This design provides stability and rigidity, making the gantry machining center suitable for high-precision machining of large and heavy workpieces.

The Main Functions and Components :

Bridge Structure:

The horizontal bridge or beam is a distinguishing feature of this machine and houses the spindle and cutting tools. It moves along the X-axis, providing horizontal movement during machining operations.

Column support:

The gantry is supported by two vertical columns, which guide the vertical movement of the beam along the Y-axis. The stability provided by the columns is critical to achieving accurate and consistent machining results.

Workbench:

The workbench is located under the gantry and can move along the Z-axis to provide vertical movement for the workpiece. Some gantry machining centers also feature turntables for multi-axis machining capabilities.

Spindle and cutting tools:

The spindle is mounted on the beam and accommodates cutting tools for various machining processes such as milling, drilling and forming. Gantry machining centers are often equipped with high-speed spindles to facilitate efficient material removal.

Control system:

Gantry machining centers are equipped with advanced control systems, usually using computer numerical control (CNC) technology. CNC systems can precisely control the movement of gantry, table, and spindles to enable complex machining operations.

Application of Gantry Machining Center

Car manufacturer:

In the automotive field, gantry machining centers are used in the production of molds and various parts. Their high-speed machining capabilities, combined with the ability to handle large workpieces, help increase the efficiency and precision required for automotive parts production.

Mold making:

Gantry machining centers are widely used in the mold manufacturing industry for the precise production of complex molds. The machine's stability and rigidity enable it to achieve tight tolerances and fine surface finishes, which are critical in the manufacture of plastic injection molds and stamping dies.

Energy sector:

For the manufacture of components used in the energy sector, gantry machining centers are used to process large and complex parts, such as turbine components, generator components and structural elements of power plants. The machine's rugged construction ensures reliable performance in heavy-duty machining applications.

Heavy machinery manufacturing:

Industries involved in the production of heavy machinery, such as construction equipment and industrial machinery, benefit from the capabilities of gantry machining centers. These machines are used to process large and heavy components, ensuring precision and efficiency in the manufacturing process.

Marine industry:

In shipbuilding and offshore engineering, gantry machining centers are used to process ship components, propellers and other critical parts. The machine's versatility enables efficient and high-precision production of a wide range of marine components.

Medical device manufacturing:

In medical device manufacturing, precision is critical in producing components such as orthopedic implants, surgical instruments and medical devices. Gantry machining centers help produce these parts with high precision and repeatability, meeting the stringent quality standards required by the medical industry.

Die Casting and Casting Applications:

Gantry machining centers are used in die casting and foundry applications for machining large molds and cores used in the casting process. These machines help achieve precise dimensions and surface finish on these molds, ensuring the quality of cast parts in industries such as automotive, aerospace and general manufacturing.

General metal processing:

In addition to specific industries, gantry machining centers are also used in general metal processing for tasks such as milling, drilling and cutting various metal components. Their versatility makes them suitable for a variety of metal fabrication applications, helping to increase the efficiency and precision of metal processing processes.

Research and development:

In an R&D environment, gantry machining centers are used for prototyping and experimental machining. These machines provide researchers and engineers the flexibility to create and test complex components so that new products and technologies can be developed and improved.

Conclusion:

As technology evolves, Gantry Machining Centers continue to evolve in tandem, expanding their applications across a broad spectrum of industries. From rapid prototyping to machining composite materials and serving educational purposes, these machines remain at the forefront of innovation in precision machining. Their versatility, accuracy, and efficiency make Gantry Machining Centers indispensable in shaping the landscape of modern manufacturing.
