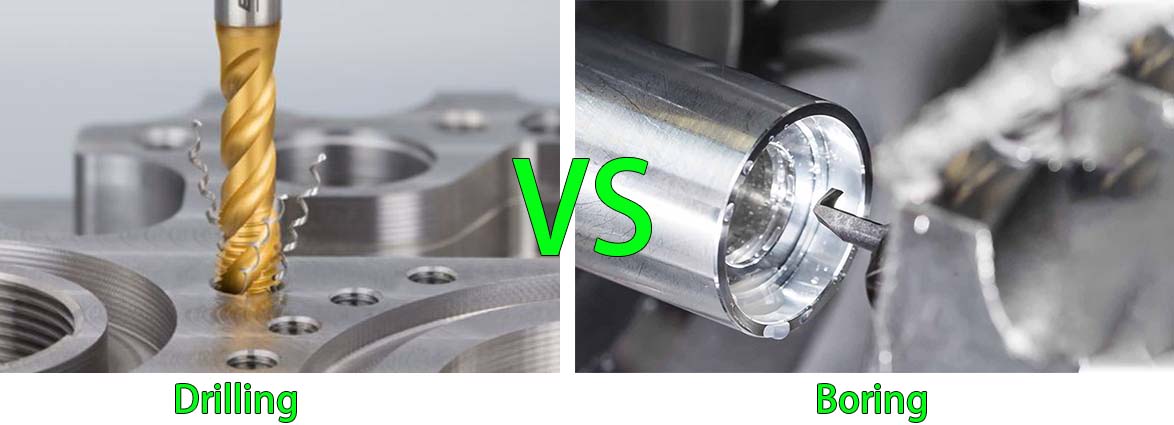

Boring Vs Drilling in CNC Machining

In the realm of CNC machining, precision and efficiency are paramount. When it comes to creating holes and cavities in workpieces, two primary techniques take the spotlight: boring and drilling.

In this article, we will delve into the nuances of boring vs. drilling machining processes, explore their applications, and shed light on the products offered by CNC Yangsen that can revolutionize your machining operations.

The Drilling Process

Drilling is a fundamental machining process in the world of CNC (Computer Numerical Control) machining. It involves the creation of holes in workpieces using a rotating tool known as a drill bit. This process is versatile and widely used across various industries due to its efficiency and simplicity.

Types of Drilling Machines

Drilling machines are versatile tools used for creating holes in various materials. They come in different types, each designed for specific applications and industries. Here are some common types of drilling machines:

● Portable Drilling Machine: These are lightweight and compact machines designed for easy mobility. They are suitable for drilling holes in various locations and are commonly used in construction and maintenance work.

● Bench Drilling Machine: Typically fixed to a workbench, these machines provide stability and accuracy. They are favored for general-purpose drilling tasks in workshops and small-scale manufacturing.

● Pillar Drilling Machine: These machines offer greater rigidity and precision, featuring a sturdy pillar or column for support. They are ideal for drilling holes in larger workpieces and are commonly found in industrial settings.

● Radial Drilling Machine: A radial drilling machine features an adjustable arm that can be rotated around the column, providing exceptional versatility in drilling positions. These machines are particularly well-suited for handling large and heavy workpieces, making them indispensable in industries like construction and metalworking.

● Gang Drilling Machine: Gang drilling machines are purpose-built to drill multiple holes in a single workpiece simultaneously. Their efficiency shines in high-volume production settings, and they are frequently employed in manufacturing automotive components and printed circuit boards.

● Multi-Spindle Drilling Machine: TMulti-spindle drilling machines are equipped with multiple spindles, enabling them to drill several holes simultaneously. These machines find widespread use in mass-production industries, significantly enhancing efficiency and reducing cycle times.

● Deep Hole Drilling Machine: Deep hole drilling machines specialize in creating extremely deep and precise holes. They are essential in aerospace and firearms manufacturing industries, where deep holes with tight tolerances are required.

Applications of Drilling in Various Industries

Drilling is a versatile machining process with applications in numerous industries. Here are some key sectors where drilling plays a crucial role:

Automotive Industry

In the automotive industry, drilling is essential for creating holes in engine components, transmission parts, and chassis components. These holes serve various purposes, from mounting bolts to fluid passageways. Drilling is an integral part of engine manufacturing, ensuring the assembly of critical components.

Electronics Manufacturing

In electronics manufacturing, drilling is fundamental for creating holes in printed circuit boards (PCBs). These holes accommodate electronic components and allow for electrical connections. The precision of drilling in PCB manufacturing is crucial to make sure the proper functioning of electronic devices.

Construction

Drilling plays a vital role in the construction industry, creating holes in concrete, masonry, and wood. These holes are necessary for anchor installation, electrical wiring, and plumbing applications. The speed and efficiency of drilling are valuable in construction projects.

Advantages and Disadvantages of Drilling

Advantages of Drilling

Drilling offers several advantages that make it a preferred machining process in various situations:

● Speed: Drilling is generally fast, making it ideal for applications where speed is crucial, such as mass production. The efficient removal of the material allows for quick hole creation.

● Versatility: Drilling is a versatile machining process with various materials, including metals, wood, plastics, and ceramics. This adaptability makes it the preferred choice for numerous machining tasks across different industries.

● Cost-Effective: Drilling is often a cost-effective solution for creating holes in workpieces due to its simplicity and efficiency. The equipment and tooling required for drilling are relatively affordable compared to more specialized machining processes.

Disadvantages of Drilling

While drilling has many advantages, it also has its limitations:

● Precision: While suitable for many applications, drilling may not achieve the same level of precision as other machining processes like boring. Drilling may not be the best choice if extremely tight tolerances are required.

● Surface Finish: The surface finish produced by drilling may not be as smooth and precise as that achieved by more specialized processes. This can be a limitation in applications requiring a high-quality surface finish.

The Boring Process

Boring is a precision machining process crucial in achieving exceptional accuracy and surface finish in CNC (Computer Numerical Control) machining. Unlike drilling, which creates holes, boring enlarges existing holes with meticulous precision.

Types of Boring Machines

Here's a concise overview of the different types of boring CNC machines:

● Precision Boring: A single-point cutting operation that enlarges existing openings to produce precise internal cylindrical surfaces. It can straighten and enlarge holes while removing material like small chips.

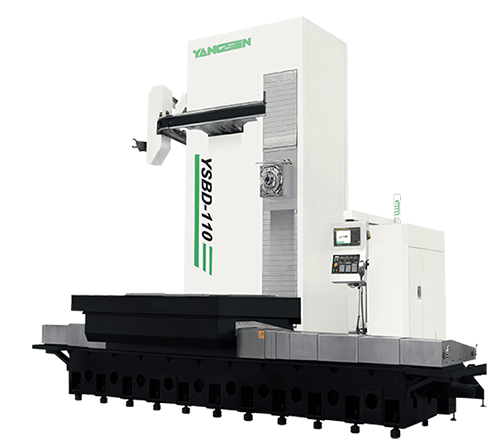

● Horizontal Boring: Utilizes a single-point cutting tool to enlarge existing workpiece openings accurately. It offers milling, drilling, reaming, and tapping versatility, especially for heavy workpieces. Horizontal boring machines come in various styles, including table type, planer type, floor type, and multiple spindle machines.

● Jig Boring: Creates precise internal cylindrical surfaces by enlarging existing openings. It utilizes a single-edge cutter advanced parallel to the hole's axis inside a stationary workpiece, often featuring a rigid setup for deep hole boring.

● Lathe Boring: Used to produce conical and cylindrical surfaces. It enlarges existing openings by moving a cutting tool parallel to the workpiece's axis of rotation.

● Vertical Boring: Produces accurate internal cylindrical or conical surfaces by enlarging openings. Workpieces rotate about a vertical axis while the tool advances vertically and horizontally.

Applications of Boring in Various Industries

Boring is an indispensable machining process in industries where precision and accuracy are paramount. Here are some key sectors where boring find critical applications:

Aerospace

In aerospace manufacturing, where safety and performance are non-negotiable, boring is essential. This process is used to create precision holes in aircraft components, ensuring that they meet the stringent requirements of the aerospace industry. Boring guarantees the precise alignment of critical parts.

Automotive Industry

The automotive industry relies on boring to achieve the precise tolerances required for engine block cylinder bores. Boring ensures engine components fit together perfectly, contributing to optimal engine performance and longevity. In an industry where reliability is key, boring plays a vital role.

Advantages and Disadvantages of Boring

Advantages of Boring

Boring offers several distinct advantages, making it the preferred choice in specific machining scenarios:

● Precision and Accuracy: Boring excels in achieving extremely tight tolerances, making it ideal for applications where precision is paramount. The ability to meet strict dimensional requirements is a hallmark of the boring process.

● Surface Finish: One of the most significant advantages of boring is the exceptional surface finish it provides. The machined surface is smooth, precise, and free of imperfections. This attribute is crucial in industries like medical device manufacturing, where hygiene and product quality are critical.

● Roundness: Boring can significantly improve the roundness of a hole. This ensures that the machined components meet the desired specifications, particularly in applications where components must rotate smoothly, such as in producing bearings and gears.

Disadvantages of Boring

While boring offers remarkable precision and surface finish, it also has its limitations:

● Size: Creating holes in hard-to-reach areas with boring techniques can be challenging.

● Material compatibility: Some materials may be too hard or brittle for the cutting tools used in boring machines.

● Shapes: The process may not be suitable for creating complex internal shapes or very small holes.

Boring's effectiveness depends on tool selection, machine capabilities, and workpiece characteristics.

Comparison and Contrast: Boring Vs. Drilling.

Drilling and boring are two distinct machining processes that serve different purposes in CNC (Computer Numerical Control) machining. Below, we provide a detailed boring vs. drilling comparison and contrast, highlighting their key differences:

Factors to Consider When Choosing Between Drilling and Boring

When deciding between drilling and boring for your CNC machining project, it's essential to consider several critical factors to ensure that you achieve the desired results. Here are the key factors to take into account:

Tolerances and Specifications

Tolerances and specifications are fundamental aspects of any machining project. They dictate the allowable deviation from ideal dimensions and determine the precision required for the finished product. Here's a more detailed breakdown:

Desired Surface Finish and Dimensional Accuracy

Dimensional accuracy and surface finish are crucial for the functionality and aesthetics of machined parts. Consider how these factors align with your project's objectives:

Type of Material

Different materials present varying machining challenges and characteristics. The choice of material influences the suitability of drilling or boring:

Hole Depth and Size

Consider the depth and size of the holes you need to create. These factors impact the choice between drilling and boring:

Production Volume and Speed

The production volume and required speed of your machining operation are pivotal considerations:

Available Equipment and Tooling

Ensure that you have the necessary equipment and tooling for your chosen machining process:

Conclusion

In CNC machining, the choice between boring and drilling hinges on the delicate balance between precision and efficiency. Boring excels in achieving tight tolerances and impeccable surface finishes, while drilling is the go-to option for rapid hole creation.

CNC machinists and engineers must carefully assess project requirements to make the right choice and produce high-quality parts for many industries. As technology advances, CNC machining techniques will evolve, offering even greater precision and efficiency in boring and drilling operations.

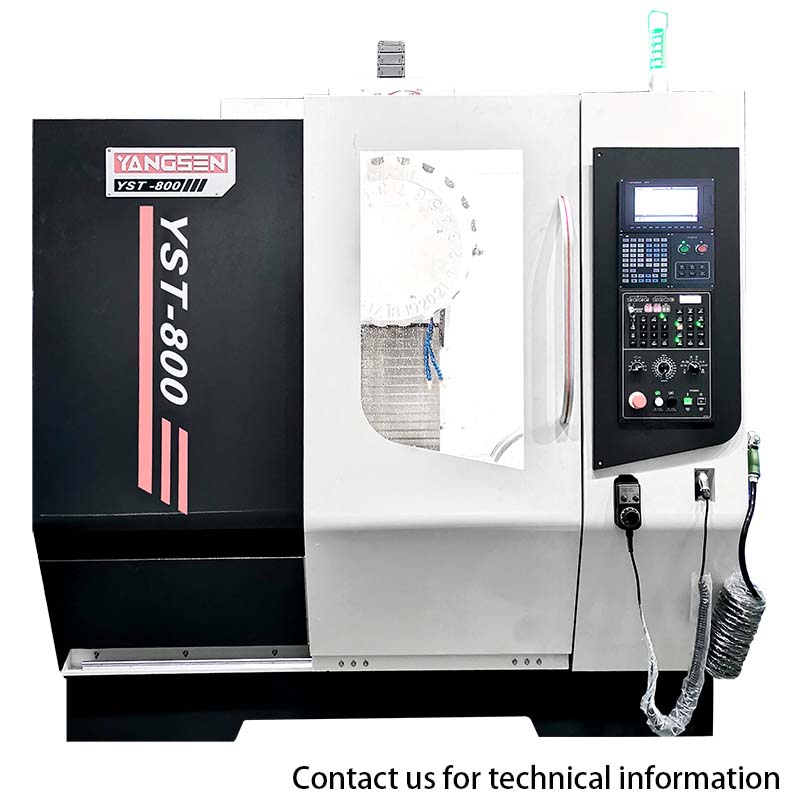

CNC Yangsen is your trusted partner in this journey, offering a wide range of precision tools and unwavering support. With CNC Yangsen by your side, you can unlock the true potential of CNC machining, achieving levels of precision and efficiency that were once unimaginable.
