CNC machine bearings are core components in the field of modern industrial precision machining. They are mainly used to support the spindle, ball screw and general transmission shaft of machine tools. Its main function is to reduce the friction resistance generated during mechanical rotation, thereby improving the operating efficiency and machining accuracy of the machine.
The performance of CNC machine bearings directly affects key indicators such as the reversal accuracy, rigidity, and anti-vibration and oscillation cutting functions of the machine. In CNC machine, spindle bearings are particularly important because they determine the speed, load capacity, accuracy and rigidity of the machine tool. In addition, bearings also affect the operating temperature, vibration and noise of the spindle, so they must be very precise and reliable to achieve a high level of productivity. The steel balls and ceramic balls in CNC machine bearings refer to the rolling elements used inside the bearings, which play a role in reducing friction and supporting loads during the operation of the bearings.
Manufacturing and processing: Steel balls are usually made by rolling, which is an efficient processing method that can process multiple steel balls at the same time, thereby improving production efficiency. Steel balls have a high hardness, usually 64~64HRC, and have high precision and roundness (tolerance and roundness within 0.0025mm).
Function: Steel balls are mainly used to transmit force and reduce friction in mechanical transmission. They can withstand considerable pressure and impact, while effectively reducing friction between mechanical parts under high-speed friction conditions. Steel balls are widely used in equipment such as spherical ball bearings and linear guides, which can improve the rotation efficiency and durability of the equipment.
Manufacturing and processing: Ceramic balls are usually made of ceramic materials and have higher temperature resistance and chemical corrosion resistance.
Function: Ceramic balls are widely used in the design of high-speed precision spindles. Compared with steel bearings of the same specifications and precision, the speed of ceramic bearings can be increased by 20%, the temperature rise can be reduced by 35% to 60%, and the life can be increased by 3 to 6 times. Ceramic ball bearings have the advantages of low vibration, low noise and low heat generation, and are suitable for scenes with large direct transmission power.
The most important role in mechanical transmission is to transmit force and reduce friction. By changing sliding friction into rolling friction, the friction in the power transmission process can be significantly reduced, thereby improving the rotation efficiency and durability of mechanical equipment.
Withstand considerable pressure and impact, which allows them to remain stable under high-speed friction conditions and ensure smooth operation between mechanical parts.
Disperse the load through multiple contact points, which can reduce the pressure at a single contact point and extend the service life of the bearing. This design usually uses multiple small steel balls to distribute the load.
With the characteristics of high precision and standardization, this is especially important for CNC machine tools that require high precision and high stability. Steel ball bearings can provide very precise rotational motion, ensuring the accuracy and stability of the processing process.
Steel ball: Steel ball made of bearing steel is usually used. This material has high hardness and strength, but it will generate more heat and friction at high speed.

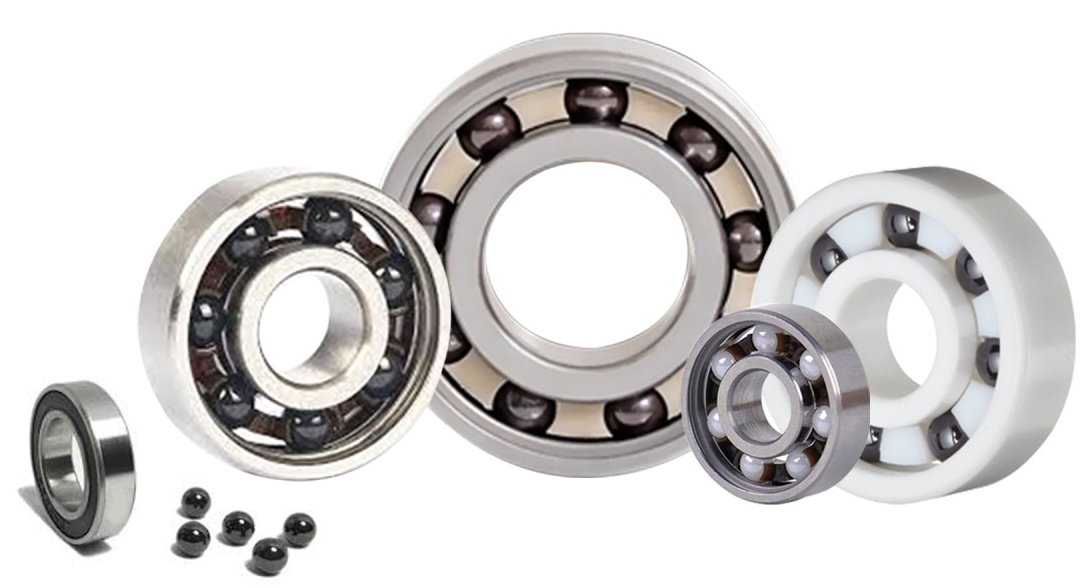

Ceramic ball: Ceramic ball made of ceramic material is used. Ceramic material has lower density and higher temperature resistance, so it can reduce heat generation at high speed, thereby improving the overall performance of the bearing.
Temperature control: Ceramic ball bearings can better control temperature at high speed because ceramic material has better temperature resistance than steel. This makes ceramic ball bearings more stable when running at high speed.
Load capacity: Ceramic ball bearings usually have better load capacity than steel ball bearings at high speed. Ceramic material has a lower elastic modulus, which makes it perform better when subjected to impact force.
Noise: Ceramic ball bearings usually make less noise than steel ball bearings when running, because ceramic material has a lower friction coefficient.
Speed requirement: For spindles below 12000rpm, steel ball bearings are usually used. For spindles above 12000rpm, ceramic ball bearings are required to meet the performance requirements at high speed.
Lubrication and cooling: At high speeds (such as above 18,000 rpm), the grease and cooling methods used by ceramic ball bearings are completely different from those of steel ball bearings, which further improves their performance.
| Feature/Difference | Steel Balls | Ceramic Balls |
|---|---|---|
| Material | Typically made from high carbon chromium steel | Typically made from zirconia (ZrO2) or silicon nitride (Si3N4) |
| Hardness | Relatively low | Very high, usually harder than steel balls |
| Density | High (steel density is about 7.85 g/cm³) | Low (zirconia about 5.6-6.1 g/cm³, silicon nitride about 3.2 g/cm³) |
| Thermal Expansion Coefficient | High | Low |
| Friction Coefficient | Relatively high | Relatively low |
| Corrosion Resistance | Generally, can be improved by surface treatment | High, ceramic materials inherently have good corrosion resistance |
| Temperature Resistance | Good, but has limits | Excellent, high temperature resistant |
| Insulation | Not insulating | Good insulation properties |
| Manufacturing Cost | Low | High |
| Application Scenarios | General industrial use, for occasions with not high requirements | Special occasions requiring high speed, high temperature, high load, low friction, and corrosion resistance |
Ceramic bearings have significantly higher fatigue life than steel ball bearings. The fatigue life of all-ceramic bearings can be 10-50 times longer than that of all-steel bearings, and the life of hybrid ceramic bearings is also about 3-5 times higher than that of all-steel bearings. This means that under the same operating conditions, ceramic bearings can provide longer service life, thereby reducing the frequency of replacement, which is an important consideration for maintenance costs.
Ceramic balls are rounder, lighter, harder, smoother and less porous than steel balls, which can reduce friction and energy loss, allowing equipment to operate more efficiently and for longer. The lower coefficient of friction means that ceramic bearings may generate less heat and energy loss during operation, further improving their cost-effectiveness.
Although hybrid ceramic ball spindle bearings are more expensive than traditional spindle bearings, they are indeed more cost-effective. This shows that although the initial investment is higher, ceramic bearings may provide better economic returns in the long run due to their longer service life and lower maintenance requirements.
The market prospects of ceramic bearings in China are very promising. Although the price is relatively high, the comprehensive economic benefits are very significant under the same working conditions. This shows that the market demand for ceramic bearings is strong, indicating that its cost-effectiveness may be further improved in the future.
