Introduction

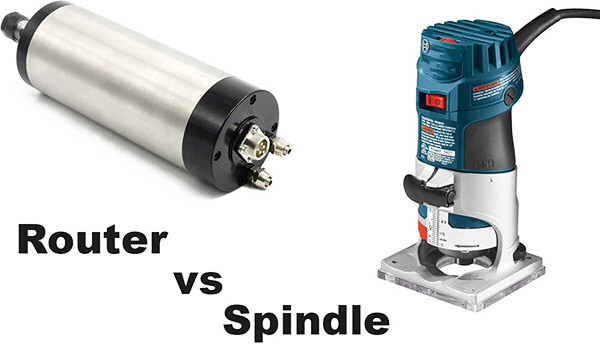

CNC spindle vs router is a common inquiry. For the precise cutting, sculpting, and carving of different materials, the field of computer numerical control (CNC) machining provides a wide range of equipment and technology. The CNC spindle and router are two common machines used in CNC machining. While the functionality of both of these tools overlaps, they each have unique qualities that make them suited for particular purposes.

Understanding CNC Spindles

Cutting tools like end mills, drills, and taps are held and driven by revolving devices called CNC spindles. It provides high-speed rotation and fine control over cutting processes, making it an essential part of CNC milling machines and machining centers. CNC spindles offer great rigidity and accuracy and are often built for heavy-duty applications. CNC spindles' essential features include:

Power and Speed

Power ratings for CNC spindles vary, providing flexibility to accommodate the unique needs of machining tasks. Higher power spindles, ranging from several hundred watts to several kilowatts, are intended for heavy-duty cutting, whilst lower power spindles, typically in the range of a few hundred watts, are ideal for lighter machining activities. The capacity for cutting and the effectiveness with which material can be removed are directly influenced by the spindle's power.

CNC spindles provide a wide variety of rotational speeds in addition to power. High-speed spindles have the capacity to spin at rates of 10,000–40,000 RPM or even more. The quick material removal and lower machining times are made possible by the high rotational speeds. Additional flexibility for optimizing cutting parameters based on the material and desired machining outcomes is provided by CNC spindles with adjustable speed settings.

Precision and Stability

The ability of CNC spindles to give accuracy and stability during cutting operations is one of their key features. Precision is the capacity to provide precise machining results and tight tolerances. Low runout is a feature of CNC spindles that reduces the spindle's deviation or swaying during rotation. Low runout is essential for obtaining precise cuts and keeping the dimensions of machined workpieces constant.

Another crucial component of CNC spindles is stability. The stability provided by spindles' axial and radial rigidity during cutting minimizes the possibility of vibration and deflection. High stiffness enables more controlled and precise machining, which leads to improved surface polish and dimensional correctness. Low runout and high stiffness work together to give CNC spindles reliable and consistent machining performance.

Tool Compatibility

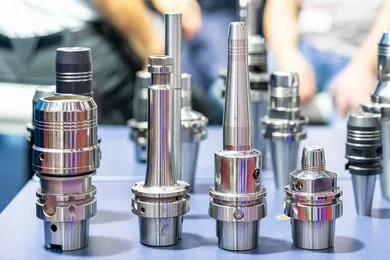

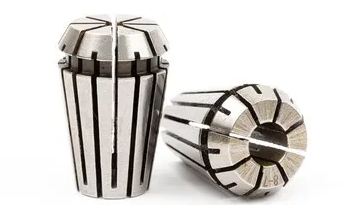

When it comes to tool compatibility, CNC spindles are flexible, enabling a variety of cutting operations. They can hold a variety of cutting tools, including drills, reamers, end mills, and more. Collets or tool holders are used to enable secure and accurate tool clamping, effectively conveying cutting forces.

It is more flexible to choose the best tool for a given machining work when the machine can handle many cutting tools. CNC spindles make a variety of operations possible, such as milling, drilling, tapping, and other processes. Due to their adaptability, customers are able to handle a variety of machining needs without the need for several specialist machines.

Cooling and Lubrication

Many CNC spindles have cooling and lubrication systems to guarantee optimum performance and increase tool life. These systems aid in controlling the heat produced during operation, preventing thermal damage to the workpiece and cutting instruments. Cooling systems, including air or liquid cooling, disperse heat from the spindle and keep the operating temperature under control.

In order to reduce friction between the rotating components of the spindle, lubrication systems offer the necessary lubricating fluids. In order to ensure smooth operation and lower the danger of premature failure, proper lubrication lowers wear and increases the lifespan of the spindle components. In CNC spindles, the combination of cooling and lubricating systems aids in maintaining performance, precision, and dependability during prolonged periods of use.

Exploring Routers in CNC Machining

Routers are adaptable cutting tools that are frequently used in woodworking, the production of signs, and other applications that require delicate carving, engraving, or material shaping. While CNC routers and CNC spindles have some similarities, they also have unique features that meet different needs. Among the essential traits of CNC routers are:

Versatility

CNC routers are incredibly adaptable devices that can work with a variety of materials and applications. They are skilled in working with soft metals, foam, plastic, and wood. The capacity of routers to produce elaborate designs, 3D carvings, and fine engravings benefits the woodworking industry. Because of their adaptability and ability to be customized, routers are common in sectors like furniture manufacture, cabinet building, and prototyping. With the use of routers, users may easily and precisely build intricate forms, artistic accents, and personalized designs.

Size and Power

Because routers come in a variety of sizes, customers can select one that best fits their workspace and individual application needs. Smaller desktop routers and bigger industrial-grade versions are available in a variety of sizes. Because of its adaptability in terms of size, routers can be used in multiple situations, from small workshops to massive production plants.

Compared to CNC spindles, routers run at lower RPMs but provide more torque. For operations requiring cutting through thicker stock or creating deeper cuts in woodworking applications, this high torque output is useful. The need for many passes is decreased, and material removal is made more effective thanks to the increased torque.

Spindle Options

According to the required application and cutting requirements, CNC routers give users the option to select from a variety of spindle types. Air-cooled spindles and water-cooled spindles are two popular spindle types used in routers. Spindles that are air-cooled are often utilized for lighter-duty applications and offer adequate cooling while in use.

They are frequently easier to maintain and more cost-effective. The better cooling capacities of water-cooled spindles, on the other hand, make them ideal for more difficult operations that need prolonged operation times. As a result of the water-cooling system's assistance in dissipating heat produced during operation, consistent and dependable performance is possible. The right spindle option should be chosen based on the amount of use, desired cutting speeds, and required material properties.

Dust Collection

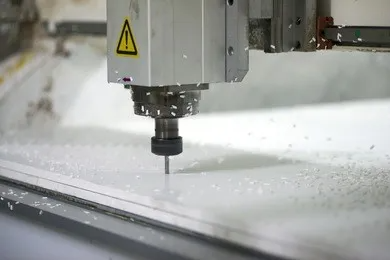

Oftentimes, dust collection devices are integrated into CNC routers, especially those used in woodworking applications. These systems are made to reduce the buildup of wood chips, dust, and other waste materials produced during cutting operations. A cleaner and safer workplace is created thanks to the dust-collecting mechanism, which collects the particles and guides them away from the work area.

Effective dust collection helps maintain the performance and longevity of the cutting tools while also increasing the visibility of the workpiece. Dust-collecting systems improve cutting outcomes by lowering the likelihood of debris buildup and clogging and guarding against potential router component damage.

Applications and Strengths

CNC Spindles:

• CNC spindles excel in precision machining tasks that require high-speed cutting, such as milling, drilling, and tapping in materials like metals, composites, and harder plastics. Their high rotational speeds and power enable efficient material removal, resulting in faster production times.

• They are ideal for applications where rigidity, accuracy, and repeatability are paramount, such as aerospace components, automotive parts, and industrial tooling. The precision and stability of CNC spindles allow for tight tolerances and consistent machining results, ensuring the quality of the final product.

• CNC spindles offer superior performance when dealing with heavy-duty cutting operations, enabling efficient material removal and extended tool life. Their robust construction and high-power capabilities make them suitable for applications that require substantial force and resistance to vibration.

Routers:

• CNC routers are well-suited for applications that involve intricate designs, 3D carving, and engraving, making them popular in woodworking, signage manufacturing, and artistic projects. Their versatility allows for the creation of complex shapes and decorative elements with precision and ease.

• They are highly versatile, capable of working with a vast variety of materials, including wood, plastic, foam, and soft metals. This flexibility makes routers suitable for industries such as cabinetry, furniture manufacturing, and prototyping, where creativity and customization are essential.

• CNC routers offer the advantage of higher torque, which enables efficient cutting in softer materials. This feature makes them ideal for tasks like routing intricate details, shaping curves, or creating chamfers. Their ability to generate high torque allows for precise cuts in thicker materials, reducing the need for multiple passes.

Limitations and Considerations

CNC Spindles:

• While CNC spindles offer exceptional precision and power, they may not be as versatile as routers when it comes to handling different materials and intricate designs. Their primary focus is on high-speed, high-precision machining, making them less suitable for applications that require artistic or decorative elements.

• The high rotational speeds and cutting forces generated by CNC spindles require robust machine structures and appropriate tooling, making them more suitable for heavy-duty applications. The cost of acquiring and maintaining CNC spindles may be higher compared to routers, particularly for high-power and high-precision models.

• CNC spindles can be more complex to set up and operate, requiring specialized knowledge and expertise. Achieving optimal performance from a CNC spindle involves factors such as selecting the correct cutting parameters, tooling, and appropriate feeds and speeds. Proper maintenance and calibration are also crucial for ensuring consistent accuracy and prolonging the spindle's lifespan.

Routers:

• While routers are versatile and excel in intricate work, they may not offer the same level of precision and power as CNC spindles in heavy-duty applications or materials. The lower rotational speeds of routers may limit their efficiency when it comes to high-speed material removal or working with harder metals that require more cutting force.

• The higher torque generated by routers allows efficient cutting in softer materials, but it may limit their ability to work with harder metals or achieve the same level of accuracy. While routers can produce impressive results in woodworking and softer materials, they may not provide the same level of precision required for industries that demand tight tolerances, such as aerospace or automotive manufacturing.

• Despite incorporating dust collection systems, routers may still produce a significant amount of debris during operation. This necessitates regular cleaning and maintenance to ensure optimal performance and prevent clogging or damage to the cutting tools.

CNC Spindle VS Router

User Friendliness

Due to its precision and power, CNC spindles typically require a longer setup time. Setting up a CNC spindle for use requires careful alignment, tool mounting, and calibration. For precision machining, users must also be careful to measure tool length accurately and adjust tool offset. For more complex CNC spindle models, the setup procedure could call for specialized knowledge and skill.

On the other hand, compared to CNC spindles, routers often have an easier setup procedure. The main setup activities involve mounting the proper router bit, modifying depth settings, and securing the workpiece. Tables and guides for routers can make setup easier and guarantee accurate and reliable cutting.

In order to operate, routers frequently require more streamlined software interfaces and control panels. Some routers even have user-friendly GUIs that make toolpath generation and programming simpler. Typically, while programming a router, the cut parameters—such as feed rate and depth—are specified using a relatively simple procedure.

Cost and warranty

Spindles are made for heavy-duty CNC machining, are meant to run faster than routers, and are often much more expensive than routers. The cost of repairing spindles rises as they get more sophisticated, feature-rich, and fast. As a result, regular maintenance is necessary for optimal functioning. The majority of spindles have a one-year warranty from the date of shipment, which is also a positive feature.

Routers are an excellent option if you're on a tight budget or want to focus on carpentry. They are affordable and simple to replace. When starting out with CNC work, beginners will find that learning to use routers is considerably simpler than learning to use spindles. For projects with modest demands that don't require constant operation, you might also think of using routers. A further benefit is that all routers come with a one-year servicing warranty.

Noise Levels

In comparison to routers, CNC spindles often make less noise. In order to reduce noise emissions, spindles, particularly those made for high-speed machining, are frequently constructed with noise-reduction features and materials.

On the other hand, because of the cutting and shaping of materials like wood, routers, particularly those used in woodworking applications, may produce greater noise. It's crucial to remember that the noise levels can differ based on particular models, cutting parameters, and other elements. For both CNC spindles and routers, appropriate maintenance and the use of noise-reducing techniques can assist in reducing noise levels.

Which One to Choose

Depending on particular needs, such as material type, desired precision, and design complexity, one may choose between a CNC spindle and a router. In contrast to routers, which are adaptable instruments that encourage creativity and modification in woodworking and creative applications, CNC spindles are best suited for demanding jobs that place a premium on power and precision.

Manufacturers and craftsmen can make wise selections and improve their CNC machining operations by being aware of the variations and taking into account the benefits and drawbacks of each tool. Both CNC spindles and routers contribute to the wide range of capabilities of CNC machining, whether it be accomplishing high-speed material removal or producing complicated designs.
