Modern manufacturing and CNC (also known as Computer Numerical Control) machines go hand in hand. These machines offer great precision and automation to the manufacturing of complex parts making the entire process efficient. The cutting tool which is of critical importance to the entire manufacturing process is placed on the spindle. The spindle can vary in configuration, the major factor regarding the spindle is the length of the nose; long versus short. In this article, you can get an in-depth understanding of the spindle nose, its characteristics, and the difference between a long nose and VS short nose along with the factors you should consider while choosing the length of a spindle nose. Read through the end and master the knowledge you require to efficiently run CNC machining Center for precise manufacturing.
The size and design of the spindle nose can affect the efficiency and precision of CNC machines which is why it is of critical importance. It is because it plays an important role in the holding and usage of cutting tools. Wondering what is spindle nose? In simple words, it can be explained as the end part or rotating axis of the CNC machine where you attach a cutting tool to work on your workpiece. It impacts the precision, speed, and quality of CNC processing. Majorly, a spindle nose is characterized as a long VS short nose. Both long and short nose spindles have their advantages and disadvantages. There is no one-size-fits-all-all formula when it comes to choosing a spindle nose as it differs according to the processing needs which we will discuss in detail at the end of this article.
Let's start with understanding what a short spindle nose is and its advantages as well as disadvantages in CNC processing.
Characteristics: As the name suggests, the short spindle nose has a smaller shaft which means that the cutting tool is attached close to the spindle body. The short nose offers enhanced rigidity and stability.

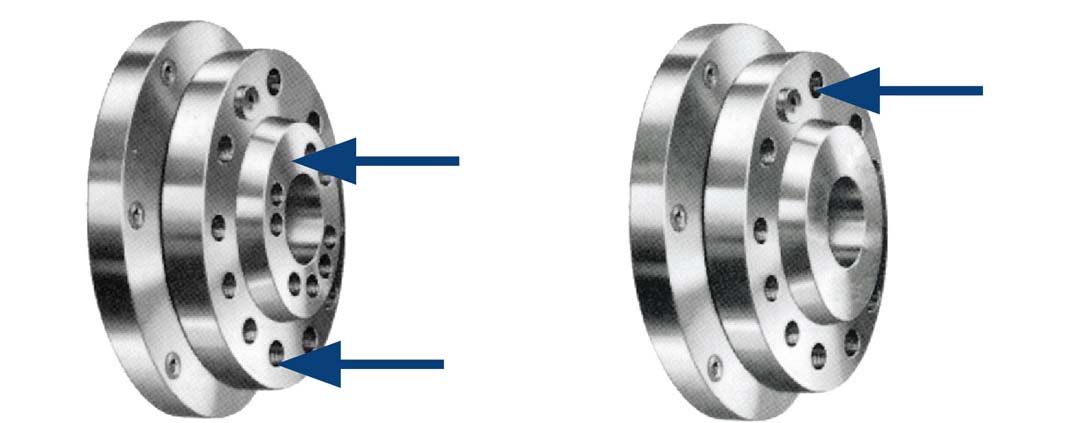

Short nose spindles are available in 2 basic designs, one with holes to attach tools on both inner and outer circles (left), while the other one with holes to attach tools only on the outer circle (right). You can closely monitor the design of short spindles in the image below:
Advantages: Here are the major advantages that short spindle nose offers
• Elevated speed: Short nose spindles offer more stability and efficiency which allows them to work at a higher speed.
• Low overhang: The short length enhances the rigidity of the spindle minimizing the overhang. Low overhang leads to accurate and precise processing. The high rigidity also helps in reducing vibration during the processing/cutting of the workpiece which ensures a smother surface finish and enhanced life of the tool you are using.
• Higher capacity to bear load: Short length nose is designed in a way that it can bear a higher load which ensures that the machine can handle heavier workpieces while maintaining higher performance.
• Low maintenance requirement: The shorter size and simple design require low maintenance while offering optimum performance. It also adds to the useful life of the equipment keeping it useful for CNC operations for a longer time.
Disadvantages: Along with advantages, there are some associated disadvantages as well which you should be aware of.
• Not suitable for large workpieces: Since the clamping support and space are limited in short nose spindles it can be quite tricky to attach large workpieces with it.
• Lower reach: Due to short length, these spindles cannot reach the complex parts of workpieces which can limit their application to certain processing requirements.
• Reduced flexibility: Short nose spindle limits the type of tools you can attach which reduces its flexibility restricting its usage in certain applications.
Let us explore the characteristics, advantages, and disadvantages of a long spindle nose.
Characteristics: As the name suggests, the long spindle nose offers an elevated shaft for the tool to attach. The attached tool is therefore at a significant distance from the spindle body. This design makes it easy for the tool to reach complex parts of the workpiece with better reach and higher efficiency.

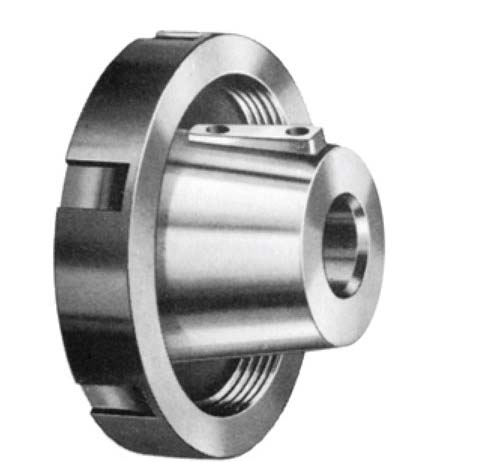

The long spindle nose is available in two designs. One is a plain shaft (right) while the other is of threaded plates (left). Both these designs are shown in the image below:
Advantages: Here are the main advantages long spindle nose offers
• Better reach: The major advantage a long-nose spindle offers is better reach to complex and deeper parts of the workpiece that a short-nose spindle can't reach. This makes the long nose spindle great for usage when workpieces have undercuts or require reaching to intricate parts.
• Suitable for curved workpieces: Long nose spindles have the advantage of long length which makes them suitable for workpieces in concave or curved shapes.
• Visibility: The long length makes it possible to view the cutting area while processing. This better visibility allows for improved inspections and precision during the cutting process.
• Wide applicability: These spindles are suitable for various types of tools ranging from shallow to deep cavities which makes them highly flexible and widely applicable.
Disadvantages: Here are the disadvantages that you should be aware of.
• Lower rigidity: The longer length of the spindle nose increases the chances of deflection while lowering rigidity. Low rigidity implies that such spindles are not suitable for processing high-intensity workpieces and harder materials as they fail to offer the desired precision and quality to such workpieces.
• High maintenance needs: The complex design ( especially of threaded pleats) and long length demands high maintenance. Without continuous maintenance, they can get affected by daily wear and tear and result in poor performance and a shorter life span of the spindle nose.
• Lower speed: To deal with the vibrations and deflections owing to the long length of the spindle nose, these spindles work at lower speeds (as compared to short nose spindles) which lowers the overall efficiency of processing.
Now that you know about the characteristics, advantages, and disadvantages of both types of spindles, it is better to give you a comparative analysis. The major features of both long VS short nose spindles are shared below for better understanding.
Reach:
• Long Nose: Longer length allows better reach to complex parts of workpieces making it more suitable for intricate CNC machining.
• Short Nose: Short length limits the reach of the cutting tool to deeper parts of workpieces.
Stability:
• Long Nose: Long length leads to lower stability and increased chances of vibration and deflection
• Short Nose: Short length keeps the cutting tool more stable offering great rigidity along with lower chances of vibration and deflection
Tool specifications:
• Long nose: if the tools are quite complex but lighter in weight then the long nose spindle can process them with great efficiency.
• Short nose: For tools with complex and intricate designs, short nose spindles cannot offer great efficiency. Although it works great for simple but heavier tools.
Maintenance requirements:
• Long Nose: Complex design and long length require more maintenance and chances of daily wear and tear are high.
• Short Nose: The simple design of a short spindle nose doesn’t require much maintenance and can be used for extended useful life.
Speed of performance:
• Long Nose: To lower the impact of deflection and vibrations, these spindles work on lower speed which majorly affects performance efficiency.
• Short Nose: Can work at maximum speed with great performance efficiency.
Versatility in application:
• Long Nose: It can accommodate many different types of tool holders offering great versatility in application for multiple tools.
• Short Nose: These spindles are not suitable only for limited types of cutting tool holders and are not versatile in application.
Cost consideration:
• Long nose: Though the initial cost of long nose spindles can be low the cost of maintenance and replacement is quite higher which should be kept in mind.
• Short nose: The initial cost of installation of short nose spindles can be higher but they can be used for extended periods with low maintenance cost which makes them worthwhile.
Applications:
• Long nose: The characteristics and design of long nose spindles make them great for application in aerospace, medical device processing, mold, and die manufacturing.
• Short nose: By design and features, these spindles are best for applications in automotive, electronics, and general product manufacturing.
The key factors to consider while deciding between the length of the spindle are shared below to help you make an informed decision.
• Precision demand: If you require precise results with a high surface finish, and low impact of deflection and vibration then a short nose spindle is the preferred pick for you.
• Maintenance requirements: Long-nose spindles need more maintenance than short-nose spindles.
• Tool specifications: The long nose spindle is perfect if the tool holders you use are versatile in nature and design.
• Workpiece characteristics: If your workpiece requires intricate processing and has a complex structure then a long nose spindle is the best fit for you. On the contrary, if the workpiece is heavy and harder then you must go for a short nose spindle for efficient processing results.
• Required production efficiency: For speedy and efficient production. A short-nose spindle is more useful than a long nose spindle.
CNC machines are truly making a mark in modern manufacturing. Spindle nose size and characteristics play a huge role in ascertaining the precision and performance of a CNC machine. Both short and long spindle nose has their advantages and disadvantages which make them suitable for certain manufacturing conditions. If you want precise and speedy results with low impact of vibration and deflection, do not require tool versatility, and work on heavy workpieces with low maintenance requirements then a short spindle nose is perfect for you. On the contrary, if your production can bear the impact of vibration and deflection, versatile tool holder placement, intricate and complex processing, with bearing high maintenance cost then a long spindle nose is the most suitable for you.
