Hand Scraping VS Machine Scraping

Jun 03, 2024

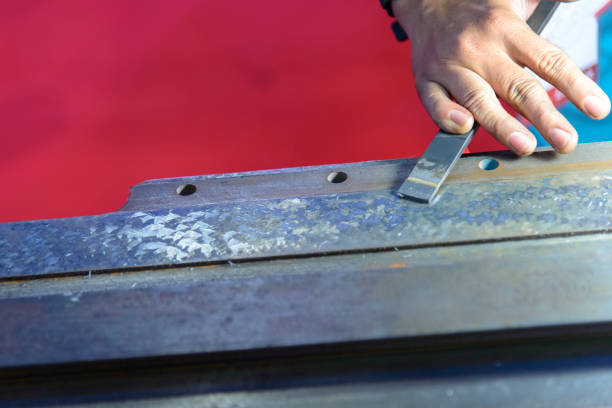

In the field of machine tool manufacturing, the scraping process is a key step to ensure the accuracy and performance of machine tools. Hand scraping is a manual process of truing and providing texture to mated surfaces in a machine tool. It is most often performed using a flat scraper, which is a hand tool with a flat-edged tip similar to a wood-carving tool. The tip of the scraper is generally an inch wide or smaller, matching the width of the metal shaft—which can be of various lengths—for rigidity. The person operating holds the tip of the scraper firmly against the surface to be worked with one hand while grasping the tool handle with the other, thrusting the tool against the surface with powerful strokes using the body’s weight to create a pattern. Other tools used for hand scraping include a three-corner scraper, which is often used to deburr holes, and a curved scraper that can treat the surface of bush bearings.



Features of Hand scraping

1. Personalization and flexibility

Hand scraping allows craftsmen to make personalized adjustments and optimizations according to the specific needs of the machine tool. This flexibility is difficult to match with machine scraping, especially when dealing with complex or non-standardized machine tools.

2. Experience and intuition

Experienced craftsmen can fine-tune the scraping process with intuition and experience to achieve the best contact conditions and smoothness of movement. This intuition and experience cannot be replicated by machines.

3. High precision and detail processing

Hand scraping can achieve extremely high precision, especially when dealing with small unevenness and irregularities of machine tools. Craftsmen can ensure that every detail of the machine tool is in the best condition through meticulous manual operation.

4. Adaptability

When faced with unexpected situations in the machine tool manufacturing process, hand scraping can quickly adapt and adjust strategies, while machine scraping may need to be reprogrammed or adjusted, which may cause delays in emergencies.



Features of machine scraping

1. Production efficiency

The biggest advantage of machine scraping is its high efficiency. Automated equipment can complete a large amount of scraping work in a short period, which is particularly important for large-scale production.

2. Consistency and repeatability

Machine scraping can ensure the consistency of each operation, which is crucial for standardized production processes. The machine's repeatability also means that the machine tools produced have a high degree of consistency.

3. Reduce human errors

Machine scraping reduces the possibility of human operating errors and ensures the stability of scraping quality.



Advantages of hand scraping

Although machine scraping has advantages in efficiency and consistency, hand scraping shows its irreplaceable advantages in the following aspects:

1. The ultimate pursuit of precision

When pursuing the ultimate precision of machine tools, hand scraping can provide fineness and personalized adjustments that are difficult for machines to achieve.

2. Ability to cope with complexity

Faced with the complexity and variability in machine tool manufacturing, hand scraping has flexibility and adaptability that machine scraping does not have.

3. The embodiment of craftsmanship

hand scraping is a technology and a manifestation of craftsmanship, which has irreplaceable value in machine tool manufacturing.

4. Creation of long-term value

Although hand scraping may be less efficient in the short term, in the long run, it can bring higher performance and longer service life to machine tools, thereby creating greater value.



Conclusion

Hand scraping and machine scraping each have their applicable scenarios. However, in the field of high-end manufacturing that pursues machine tool precision and performance, hand scraping shows its unique advantages with its personalization, flexibility, experience intuition and fine treatment of details. With the development of machine tool manufacturing technology, hand scraping will continue to play an indispensable role in machine tool manufacturing, providing strong guarantees for the performance and precision of machine tools.
