In this guide, we delve into the essentials of High Speed Machining Speeds and Feeds. Our focus is to help optimize CNC operations. Comprehensive insights await, enhancing your machining practices efficiently.
High-speed machining (HSM) is a cutting process used in manufacturing. It involves high spindle speeds and feed rates. This method uses RPMs (Revolutions per Minute) often exceeding 10,000. Feed rates can range above 1,000 millimeters per minute (mm/min).
In HSM, cutting tools move fast, reducing cycle times. This process suits metals like aluminum and stainless steel. Tools like end mills and drills are common in HSM. Key parameters include cutting speed, feed rate, depth of cut, and tool material. HSM ensures precise, efficient metal removal. It's ideal for industries needing quick, accurate part production.
High-speed machining (HSM) excels in quick material removal. This process involves cutting at speeds of 500 to 1500 meters per minute. It reduces cycle times significantly. Metals like aluminum and steel get shaped faster.
HSM utilizes dynamic tool paths. These paths are efficient, reducing air cutting time. Tools move in optimized patterns, enhancing overall machining efficiency. This approach saves time and improves part quality.
Deflection reduction is crucial in HSM. Tools experience less vibration, enhancing precision. This stability is vital for achieving superior surface finishes. Less deflection means higher accuracy in finished parts.
Spindle speeds in HSM are extremely high. Speeds often exceed 10,000 revolutions per minute (RPM). These speeds enable faster cutting, reducing production time. High RPMs are essential for effective HSM processes.
HSM features rapid feed rates. Rates can reach up to 300 millimeters per minute. This rapid movement contributes to shorter machining times. Fast feed rates are key to HSM’s efficiency.

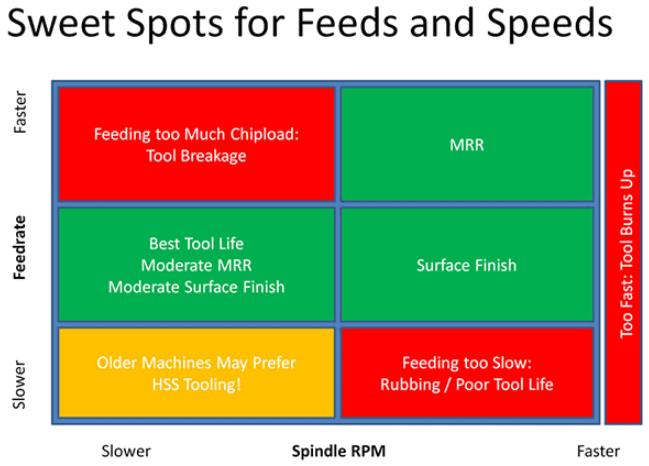

In CNC machining, speed refers to the RPM of the cutting tool. RPM stands for Revolutions per Minute. This is how fast the tool spins. Feed relates to the movement of the tool across the material. It's measured in IPM, Inches per Minute.
For High Speed Machining, these figures are crucial. They dictate the cutting efficiency and quality. Adjusting them optimizes machining operations. Proper settings reduce wear on tools. They also improve surface finish and accuracy. High Speed Machining demands precise control of these numbers for optimal results.
In CNC machining, Spindle RPM (Revolutions per Minute) is crucial. It defines how fast the cutting tool spins. High RPM leads to faster machining. It's a key factor in high-speed machining.
Tool Diameter impacts cutting speed. Smaller diameters require higher RPM. This ensures the cutting edge works effectively. It's vital for precise, high-speed operations.
Chip Load refers to the thickness of material removed per tooth. It's measured in inches. Proper chip load extends tool life and improves cut quality. It's essential for efficient machining.
SFM measures cutting speed. It's calculated by tool diameter and spindle RPM. High SFM values mean faster cutting speeds. This is important for high-speed CNC machining.
IPR indicates the distance a tool travels per revolution. It's crucial for determining feed rates. Proper IPR ensures optimal material removal rates. This is key for efficient high-speed machining.
High Speed Machining (HSM) ensures exact cuts in materials. Speeds and feeds must be precise. This precision affects the final product's quality. HSM uses RPM (revolutions per minute) and IPM (inches per minute) for accuracy.
Correct speeds and feeds extend tool life. This prevents frequent tool replacements. Tools last longer when HSM parameters are optimized. This saves time and reduces downtime in CNC operations.
Surface finish depends on HSM speeds and feeds. Higher speeds with appropriate feeds produce smoother surfaces. This is crucial for parts where surface finish is key.
Efficiency in CNC machining hinges on HSM. Correct speeds and feeds reduce machining time. This increases production rates without sacrificing quality.
HSM protects material integrity. Incorrect speeds and feeds can damage materials. Proper HSM parameters ensure the material remains structurally sound.
Safety in machining is paramount. Correct HSM speeds and feeds reduce the risk of accidents. This ensures a safer working environment for operators.
Optimal HSM saves money. It reduces tool wear and material waste. Efficient machining also cuts down on energy consumption. This leads to overall cost savings in the long term.
In high-speed machining (HSM), speed and feed adjustments directly alter chip thickness. Higher speeds usually result in thinner chips, crucial for efficient machining. Increased feeds lead to thicker chips, affecting the tool's handling of material.
Speed impacts heat generation significantly. At higher speeds, more heat is produced, potentially affecting both tool life and workpiece quality. Proper management of feed rates can help balance this heat generation, ensuring optimal machining conditions.
The interplay between speeds and feeds influences cutting forces. High speeds coupled with low feeds can reduce these forces, benefiting tool life and surface finish. However, this balance is delicate, as excessive force can damage both tool and material.
Speed and feed adjustments directly impact tool wear rate. High speeds may accelerate tool wear, necessitating careful selection of feed rates to prolong tool life. This balance is vital for cost-effective machining operations.
The quality of the surface finish is closely tied to speed and feed settings. Optimal combinations can produce superior finishes, while inappropriate settings can lead to rough or uneven surfaces.
Maintaining dimensional accuracy hinges on the right speed and feed combination. High speeds can lead to inaccuracies if not matched with appropriate feeds, emphasizing the need for precise control in HSM processes.
Factors |
Speed Increase |
Feed Increase |
Material Removal Rate |
Chip Thickness |
Heat Generation |
Cutting Forces |
Tool Wear Rate |
Surface Finish |
Dimensional Accuracy |
Definition |
RPM of the tool |
Distance per tool turn |
Cubic units per time |
Size of chip produced |
Temperature in cut |
Force on tool |
Rate of tool degradation |
Smoothness of surface |
Precision of final dimensions |
Numerical Example |
5000 RPM |
0.5 mm/rev |
100 cm³/min |
0.02 mm |
500°C |
200 N |
0.1 mm/hr |
0.8 μm Ra |
±0.01 mm |
Direct Impact |
Faster cutting |
More material per turn |
Higher with both |
Thinner |
Higher |
Higher |
Faster |
Rougher |
Decreases |
Indirect Impact |
Can cause vibration |
Stresses tool |
Efficiency increase |
Varies with material |
Affects tool life |
Affects machine load |
Affects finish |
Affects inspection |
Affects fit & function |
Optimal Range |
Material dependent |
Tool dependent |
Depends on application |
Small yet effective |
Manageable levels |
Balanced |
Low to moderate |
As per requirement |
As per tolerance |
Monitoring Method |
Tachometer |
Dial Indicator |
Volumetric analysis |
Microscope |
Thermocouple |
Load cell |
Visual inspection |
Surface profilometer |
CMM (Coordinate Measuring Machine) |
Adjustment Impact |
Changes MRR |
Changes chip size |
Direct correlation |
Impacts heat |
Impacts finish |
Impacts accuracy |
Impacts longevity |
Impacts roughness |
Impacts assembly |
In High Speed Machining (HSM), choosing the right tool is crucial. This choice impacts speeds and feeds significantly. Here's an in-depth look at key aspects-
The shape of a cutter affects its efficiency in HSM. Ideal cutter geometry ensures minimal resistance and maximum cutting speed. For example, a cutter with a 10 mm diameter can operate at higher RPMs compared to one with a 50 mm diameter, directly influencing the feed rate.
Tools must match the material being machined. Hard materials like titanium demand cutters with robust composition, such as carbide. This compatibility is essential to maintain optimal speeds without compromising tool life.
The number of flutes on a tool alters its performance. Fewer flutes, like 2 or 3, allow faster chip removal in soft materials. In contrast, a tool with 4 or 5 flutes provides finer finishes but may reduce the speed in certain materials.
Coatings like TiAlN or AlCrN enhance tool durability. They allow tools to withstand higher temperatures, permitting increased speeds in HSM. For instance, a coated tool can operate at a speed of 500 meters per minute, unlike an uncoated one restricted to 300 meters per minute.
This angle influences chip evacuation and cutting forces. A high helix angle, around 45 degrees, reduces cutting resistance. This feature allows for higher feed rates in HSM, optimizing machining time.
The sharpness of the cutting edge dictates the cutting efficiency. A razor-sharp edge, with minimal edge radius, reduces the force required for cutting. This reduction enables the tool to operate at higher speeds, enhancing productivity in HSM.
Over time, cutting edges dull. This dulling reduces cutting efficiency. Operators must reduce speeds and feeds to compensate. Reduced speed and feed rate affect machining time and quality.
Flute wear also impacts HSM. Worn flutes mean less efficient material removal. This inefficiency requires adjustments in speeds and feeds. These adjustments aim to maintain precision and avoid defects.
Chipping on the tool's cutting edges occurs during HSM. This chipping can lead to uneven cuts. To counter this, operators adjust speeds and feeds. Lower speeds and feeds help reduce further chipping.
High temperatures cause thermal cracks in tools. These cracks weaken the tool's structure. To prevent worsening, operators reduce speeds and feeds. Reduced speeds limit heat generation, protecting the tool.
BUE happens when material welds onto the tool's edge. This build-up affects cutting precision. Adjusting speeds and feeds helps manage BUE. Lower speeds reduce the likelihood of material buildup.
Tool breakage is a critical concern in HSM. Broken tools can halt production. To avoid breakage, careful monitoring of speeds and feeds is vital. Proper adjustments ensure tool longevity and prevent costly downtime.

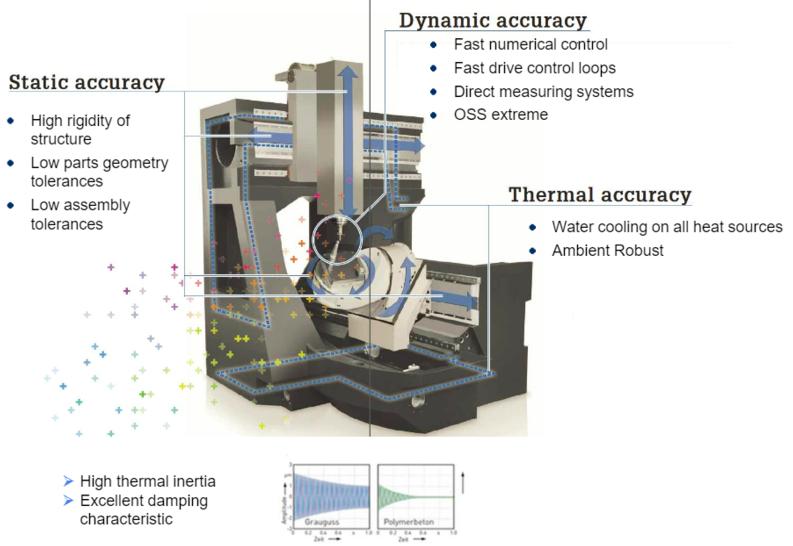

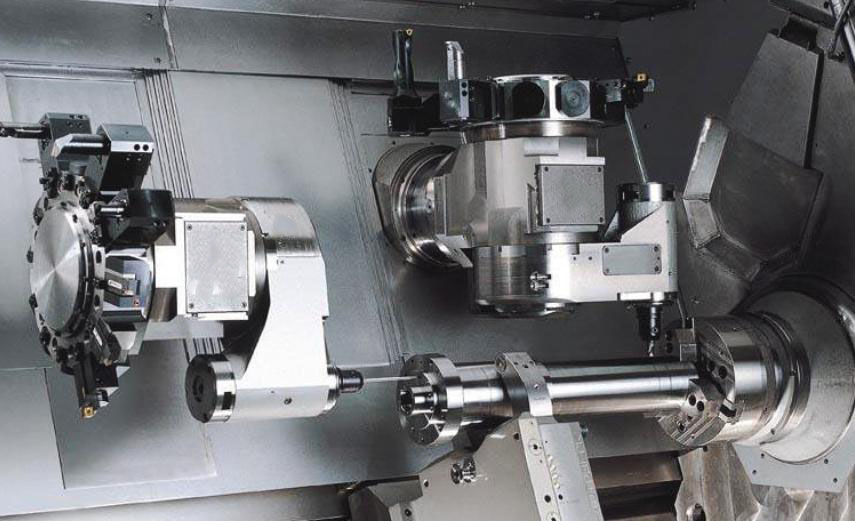

Axis stability is vital in high-speed machining (HSM). It ensures accurate tool paths. Precise movements in XYZ axes lead to better surface finishes.
Vibration control in HSM is crucial. It minimizes tool wear and improves part quality. Advanced vibration damping techniques enhance machining efficiency.
High spindle power is essential for HSM. It enables faster cutting speeds, increasing productivity. More power allows for heavier cuts and rapid material removal.
In HSM, high coolant pressure is important. It cools and lubricates the cutting area effectively. Proper cooling extends tool life and prevents workpiece damage.
Machine rigidity impacts HSM performance significantly. Sturdy construction reduces deflection, enhancing precision. Rigid machines handle higher cutting forces reliably.
Thermal stability in HSM machines maintains accuracy. It prevents thermal growth, keeping dimensions consistent. Stable temperatures ensure repeatable machining results.
Control precision in HSM is a top priority. It governs tool movement for intricate shapes. Fine control achieves detailed geometries and tight tolerances.
Factors |
Performance Impact |
Efficiency Contribution |
Importance in High-Speed Machining |
Common Ranges/Values |
Improvement Methods |
Potential Issues |
Axis Stability |
High |
Crucial |
Essential |
±0.01mm positional accuracy |
Enhanced servo motors |
Misalignment, wear |
Vibration Control |
Direct |
Significant |
Critical |
<1μm amplitude |
Damping materials, design |
Resonance, tool wear |
Spindle Power |
Major |
High |
Vital |
10-40 kW |
Upgraded motor, better cooling |
Overheating, inefficiency |
Coolant Pressure |
Impactful |
Moderate |
Important |
70-100 bar |
High-pressure systems |
Inadequate cooling, corrosion |
Rigidity |
Key |
Essential |
Fundamental |
Material dependent |
Structural design improvements |
Deformation, accuracy loss |
Thermal Stability |
Critical |
High |
Paramount |
<1μm thermal drift |
Temperature control systems |
Expansion, precision loss |
High Speed Machining (HSM) achieves precision tolerances in aerospace parts. It ensures dimensions are accurate to 0.0001 inches. This precision is crucial for safety in aerospace components.
HSM handles complex shapes easily. It can create intricate parts like turbine blades with precision. These parts have curves and angles that need exact machining.
Aerospace parts must be light yet strong. HSM removes excess material efficiently. This process makes parts like fuselage panels lighter without losing strength.
HSM works with various materials. It machines aluminum, titanium, and composites used in aerospace. Each material needs different speeds and feeds for optimal machining.
Surface quality is vital in aerospace parts. HSM provides excellent surface finishes. It reduces the need for additional surface treatments, saving time and cost.
HSM increases production efficiency. It cuts faster than traditional methods. This speed reduces manufacturing time, leading to quicker production cycles in aerospace manufacturing.
To master High Speed Machining Speeds and Feeds, this guide provides essential knowledge. For further expertise and tools, visit CNCYANGSEN. Elevate your CNC operations with confidence and precision.
