Cutting angles on a lathe is a very important activity in machining, regardless of the components' complexity or whether the fittings are custom made. The CNC machines (Computer Numerical Control) in modern manufacturing have changed the cutting angles process to a great extent by providing precise and efficient solutions that are much better than the traditional methods.
In this article, we are going to explain the cutting angles on a lathe using CNC technology, talk about the different tools and attachments used, and at last present the CNC products that serve this function.
Angling cuts on a lathe requires understanding first and foremost the working of CNC machines. CNC lathes follow the commands that you have recorded and are very precise when it comes to cutting complex angles because the computer controls the movement of cutting tools.
A numerically controlled (CNC) machine is superior to human operators in achieving both precision and efficiency in cutting the pieces at a lathe. Contrarily to manual ways presented by human inconsistency, these machines aid in doing highly exact work by observing preset operating codes down to the smallest particulars. Preciseness is a prime demand in sectors such as aviation, automotive, and production, at which point a little error may destabilize the functionality of components.
CNC technology, on the other hand, is the other aspect of the main advantage - repetition. When the machine is programmed, it can create the same parts with very small non-standard characteristics of which the equipment is suited to mass production. On the other hand, manual cutting typically has operator errors that lead to small deviations in the parts.
Besides that,CNC lathes help save on time and manual labor, especially when they have to work on complex shapes or be able to keep up with the smallest deadlines. They are the most apt when it comes to precision, constancy, and rapidity, thus being the go-to technologies for manufacturing operations related to the cutting of angles.
The lathe can operate with very high precision while cutting angles at different points along the workpiece perimeter. Here are the types that are most frequently seen by professionals:
The CNC lathe is a CNC machine tool that can be used for machining different parts that have angled surfaces on the job. Sections of these mills can be easily programmed to form smooth transitions of depth by simply writing programs and, then, are directly cut along with the sharp tapers at the external surfaces. This practice is also helpful in purpose of finishing the conical blanks, as well. Conical blunt edges form very quickly for welding purposes are another advantage. The machine's high accuracy, in this form, will lead to a finish that is both very smooth and beautiful, especially when it comes to creating custom parts from fitting materials or mechanical parts, or just for visual variations.
A hole where the interior is being worked on or a borehole is the most common place to cut internal angles. These cuts are important for applications such as the tapered threads or the internal tapers which in fact demand them for precision to fit together.
CNC lathes are the most efficient machines for internal angles where tight tolerances are required, even in deep bores, thus resulting in the seamless introduction of parts. Our drilling tool CNC machines are mainly used to improve productivity when we are working on limited angle spaces, as well as to make clean cuts in hard metals.
Chamfers are, basically, the extra beveled singes before the ends of a workpiece that give durability and a better look in general. These cuts, which can be in a few different degrees to be cut, are also used to get rid of sharp edges that possibly could hurt or damage.
Chamfers might be widespread and be present in various sizes and seat angles, and with the help of our CNC lathes, you can indeed adjust this cut to better suit the project's needs.
When it comes to a CNC lathe, the tool geometry is responsible for the cutting efficiency, precision, and surface finish. The following are the main angles of geometrical quantity and the theory of cutting tool selection based on them.
● Rake Angle: A rake angle is the angle between the workpiece and the cutting face of the tool. It is used to guide the chips away from the cutting spot. A positive rake angle diminishes the cutting force, minimizes heat. Thus, it means that the surface is smoother. However, for harder materials, a lower or zero rake should be advanced, so the tools last longer. Our carbide-tipped tools are developed with different rake angles, which allow for the most effective results in various materials.
● Clearance Angle: Whenever the tool moves, the backspace wipes out the rubbing on the tool, and the frictions decrease as well as the cutting efficiency improves. The frictionless cutting and long tool life depend on the right choice of the clearance angle. A higher clearance angle is advantageous in softer materials, while in harder materials a smaller pitch is needed for tool strength. We provide the precision cut turning and boring tool materials with the different clearance angles for different operations.
● Cutting Edge Angle: This angle of inclination directly affects chip formation and surface finish and thus directs the cutting force. In other words, a small cutting edge angle which yields a minimal load to the cutting forces may be associated with a short tool life on materials, particularly with very hard materials. The best option is the one that fits the material your machinist is working with and a specific surface finish.
Choosing the right tool with the geometric angles to carry out the cutting operation, you are also able to enhance cut conditions and gain dupe results in angle cutting for both external and internal angles.
The setup is the most important action to the cutting of angles on a lathe. Here, we provide step-by-step instructions as follows:
● Choosing the Right Tool: The chosen tool will be the one that best suits the material and the type of angle being cut. Our CNC-compatible tooling kits contain the complete set of a set of turning and boring tools that solve complex angles.
● Programming the CNC Lathe: It is done with the programming that the machine performs. Technicians can feed the G-code, which is either the exact angle and size or by using a user-friendly CAD/CAM interface. CNC machines are designed for both manual G-code programming and pre-programmed CAD designs, which makes the whole installation process very smooth.
● Workholding: Securing the material to machine the part is critical for a precise cut. For example, a project's needs may change, and we will work on the material differently using a collet, faceplate, or chuck. Our CNC lathes come complete with ultra-precision work holding systems to minimize workpiece movement during cutting.
Once your CNC lathe has been set up, you can start the cutting process. It shows a step-by-step manual as follows:
1. Workpiece Loading: Make sure you fix the workpiece into the lathe's chuck or collet.
2. Initiate the Program: With the set programmed data, enable the cuts. The CNC system will automatically place the tool at the right angle, speed, and depth.
3. Perform the Cut: Although CNC machines make most of the work automatic, it's very important to watch the cutting process to be sure that the machine functions correctly. Our machines provide virtual real-time monitoring that lets operators make the necessary adjustments when the cut is in progress.
4. Complete Post-Processing: After the cut, a part might require some slight sanding or polishing, depending on what material it is made of. However, our CNC machines are built in a way that they minimize the post-processing by giving excellent surface finishes directly from the machine.
All our CNC lathe solutions have been designed optimally for both single-pass angle cutting and more complex multi-step processes, hence, you can be guaranteed of the best results each time.

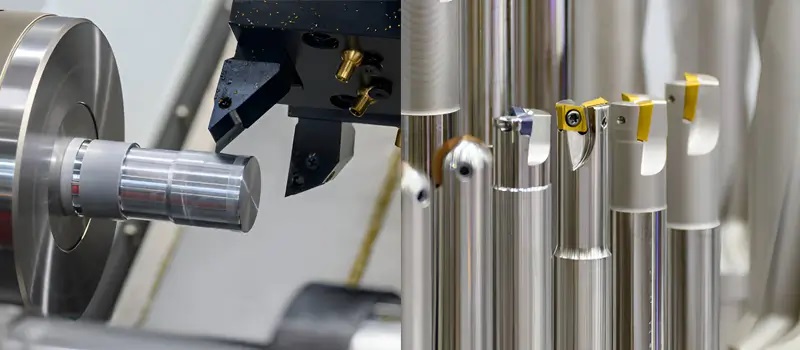

Cutting angles on a CNC lathe requires various specialized tools to ensure accuracy and efficiency. Below are some of the essential tools for this task:
● Turning Tools: Turning tools are primarily configured to cut external angles and to produce beveled surfaces. Shaping tools are necessary for both tapering or shaping the outside diameter of a workpiece. We have a large inventory of carbide-tipped turning tools, which are well known for their resistance to wear and tear as well as their high-speed performance precision. These tools guarantee smooth and precise cuts, which makes them the best option for external tapers or bevels.
● Boring Bars: For internal angles, boring bars are applied to reach inside a workpiece and cut tapers or angles. Our boring bars come in different dimensions and are suitable for heavy-duty applications where they can cut the hardest materials without any problem. They are optimal for the creation of internal tapers or bore angling with great precision, especially in hard-to-machine materials.
● Chamfering Tools: Chamfer tools come into play when making edges that have a bevel on a workpiece. Besides, such tools are the ones that are programmable to CNC lathes for chamfering edges automatically during the cutting cycle. Chamfering has the dual advantage of enhancing the visual appeal and strengthening the components, especially when the sharp edges have to be removed or softened.
The cutting tool's rake angle has a great effect on both the force and the surface finish quality of cutting action. Here are the ways in which different angles influence these outcomes:
● Cutting Force:The rake angle is the main factor influencing the cutting force intensity. A positive rake angle on the other hand, reduces the force by the provision of the machine with thinner and consequently, more manageable chips. This way the operation becomes smoother, wear on the tool is less, and it consumes less power. Meanwhile, a negative slope amplifies the cutting force, which is the cut & squats effect on tougher materials but which also creates more heat and stresses the cutting tool. By choosing the proper rake angle according to the hardness of the material, the best machining may be obtained with less force required.
● Surface Quality: The geometry of the tool also has a direct influence on the quality of the surface of the workpiece. A tool with a large rake angle generally yields a more polished surface because of the fact that it produces smaller chips and therefore less friction while it is cutting. Conversely, tools having small rake angles or high cutting edge angles might scratch the surface due to more chip resistance and cutting force. The clearance angle, in addition, keeps the same tool clear from actually contacting the surface. This would cause a finish that lacks durability.
Though CNC lathes are problematic, they are nevertheless very efficient and accurate for angle cutting. Here are some problems you need to know when you are working with CNC lathes :
● Tool Wear: It will create an inaccuracy to cut when the cutter is blunt. On the opposite side of the spectrum, our CNC machines have incorporated tool monitoring systems that fairly promptly alert the operator when something is wrong.
● Inaccurate Angle Cuts: This is either due to mistakes in the program or the movement of the equipment while cutting the material. The CNC system we use has invented precision calibration functions enabling it to be a whole entity with the specific program that is telling it to give the angle you want.
● Surface Finish: In case of a rough surface on angle it can be partly due to very high travel velocities and very low tool settings. Done by carefully adjusting the travel and feed rates the CNC lathe is used to mold smooth and final surfaces.
A CNC lathe is a versatile tool for cutting angles, and although it requires the correct tools, it also needs the right approach to make the process precise, efficient, and of a high standard. Here are some best practices to help optimize your angle-cutting operations:
● Use the Correct Tools: Selecting the appropriate cutting tool is the main step for achieving precise angles as well as being clean. For external angles, the use of turning tools that are of high quality is recommended, while for internal angles boring bars that are suited both for the material and the type of cut should be used. Chamfering tools are the tools for the beveled edges. Every tool is made for specific tasks, so be sure to pair the right tool with the material and the angle specifications. The toolkits we have that are CNC-compatible include a vast collection of carbide-tipped turning tools, boring bars, and chamfering tools, all optimized for angle cutting.
● Fine-Tune CNC Programming: Correct programming is the key to the accurate cutting of the angles. Make sure that G-codes are precisely entered to define the angle, feed rate, speed, and depth of the cut. Slight mistakes in the programming can make the machine cut the wrong way, thus, spending much time and material. Our CNC machines are supplied with state-of-the-art programming interfaces which make it easy to set the correct parameters, and thus you get the precise angle you need.
● Maintain Proper Workholding: Proper workholding is the key to regularly maintaining the cutting operation's precise quality of a workpiece. Whether you're using a chuck, collet, or faceplate, ensure that the workpiece is firmly held to prevent any movement during operation. The workpiece can be any object in the vicinity and the workplace can be a shifted one that is inclined or tilted causing inaccurate angles and surface finish problems.
● Monitor Tool Wear: Monitor the wear of tools by inspecting them frequently. Cutting tools that are not sharp enough or are damaged can be responsible for poor cutting quality, roughness of the surface, and incorrect positioning. To guarantee smooth processing, our CNC machines are equipped with tool wear monitoring systems that warn operators when it's time to replace the tools.
By implementing these best practices, you can make the CNC angle-cutting process more efficient, waste-free, and have more precision.
In conclusion, The implementation of CNC technology in lathe work for cutting angles is now more than ever more accurate, efficient, and consistent. By utilizing our proven CNC lathes and toolkits, machinists can perform precise angle cuts on any material ranging from soft plastic to hardened metals. If you are a novice in CNC machining or want to upgrade your existing setup, our CNC products are suitable for angle-cutting tasks.
