How to Perfect Milling Curves? A Step-by-Step Guide!

Introduction

Milling curves need RPM, tool type, feed rate, and chip load to be perfect. This blog helps you learn these steps. Get ready to understand CNC settings, spindle speed, and milling processes. Join us for a fun learning adventure you will love!

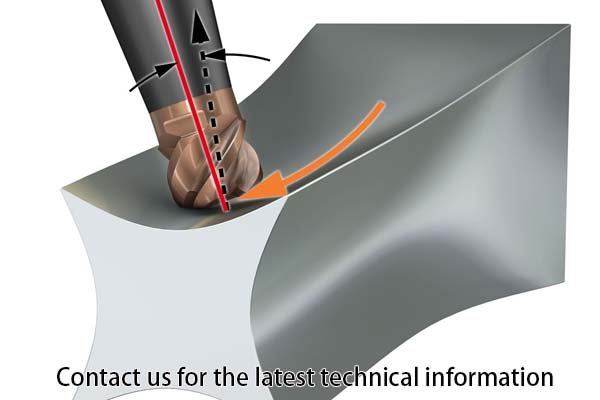

What Is Curve Milling and Why Is It Critical?

Milling curve makes round shapes. CNC machines use special codes. Precision is key. Small bits carve edges. The machine speed affects cuts. Feed rate is important. High speeds can harm parts. Low speeds slow progress. Sharp tools improve results. End mills cut curves well. Ball nose cutters shape surfaces.

Special software helps design. Another software creates instructions. Cooling fluid reduces heat. The machine moves tools in the right way. Motors provide power. Accurate measurements are important. Sensors check positions. Calibration is necessary. Operators watch the progress. Errors need fixing. Safety gear is important.

How Do You Prepare for Milling Curves?

· Machine Preparation

Make sure that the spindle speed is 6000 RPM. Feed rate should therefore be set at 2000mm/min. Lower coolant flow to 50%. Align the tool holder. Verify axis alignment. Confirm 0.01 mm tolerance.

Ensure 45-degree angle. Inspect chuck tightness. Make depth 3mm. Wipe on the table. Confirm machine bed stability. Inspect lead screws. g-code Test emergency stop. Confirm software settings. Ensure smooth operation.

· Material Selection

Select aluminum for heat dissipation improvements. Use 6061 alloy. Check thickness should be 10 mm. Check that hardness is 95 HB. Verify density is 2.7 g/cm³. Check thermal conductivity.

Make sure that the machinability rating is good. Verify tensile strength. Check elongation percentage. Ensure corrosion resistance. Confirm material certification. Verify supplier's quality. Ensure no surface defects. Inspect grain structure. Check uniformity. Verify chemical composition.

· Tool Choice

Choose an end mill with 4 flutes. Choose carbide material. Make diameter 10 mm. Check on shank size. Verify coating is TiAlN. Make sure that the helix angle is 30 degrees.

Ensure the length of the cut is 15 mm. Find out the strength of the tool. Verify manufacturer's specs. Ensure compatibility with spindle. Inspect tool geometry. Confirm flute spacing. Verify sharpness. Check for chipping. Ensure balance.

· Equipment Setup

Secure the workpiece with a vise. Align clamps. Set zero point accurately. Ensure proper grounding. Confirm spindle alignment. Verify coolant nozzles. Check lubrication system.

Inspect belts and pulleys. Adjust backlash. Ensure table is level. Test drive motors. Verify sensor connections. Set proper torque. Check for vibrations. Ensure tool changer functionality. Confirm air pressure.

· Pre-milling Checks

Verify program parameters. Inspect tool condition. Check workpiece dimensions. Confirm fixture stability. Test spindle runout. Verify lubrication levels. Inspect coolant quality. Ensure proper ventilation. Check machine cleanliness. Test emergency stop. Verify communication cables.

Ensure power supply stability. Check ambient temperature. Confirm tool offsets. Verify g-code integrity. Test for software errors. Ensure all safety guards.

What Are the Best Practices for Setting Up Your Milling Machine?

· Machine Setup

Accuracy plays a critical role when it comes to milling curves. Set the spindle speed to 2500 RPM. The end mill should be 6mm in diameter. As mentioned above, the table has to move at 0.5 mm per second. Look at how the X and Y axes are positioned. The digital readout (DRO) must be zeroed.

Screw in the collet for a proper hold. Lay the workpiece flat on the vise before starting the operation. The cutting depth should be adjusted to 2 mm. Coolant should be applied to the tool. Gently press the start button. Watch the machine carefully.

· Alignment Techniques

Good alignment helps in achieving good milling curves. Begin with the leveling of the machine bed. The spirit level should show zero. Turn the gibs on the X-axis and Y-axis. The backlash should be low. Use dial indicator for run out measurement.

Ensure that the vise jaws are running parallel to the table. Position the workpiece on the workbench and secure it with clamps. Check the perpendicularity of the spindle using a machinist square. Ensure DRO readings are accurate and consistent. Have a test run of the setup.

· Adjustment Tips

Small improvements allow for fine tuning of the milling curves. For more accurate movements in the Z-axis, refer to the handwheel. Adjust the feed rate to a value of 1mm/s. Set the cutting speed at 3000 RPM. End mill should have four flutes. For exact spacing, use a feeler gauge.

The surface of the work piece must be free from contamination. Tighten the gibs to make it more stable. The primary use of the depth stop is to guarantee that the cuts made are equal. Ensure that the tool is sharp at all times. Try not to make large changes during the process.

· Workpiece Security

Properly clamp workpieces for precise milling arcs. The vise must be capable of gripping the workpiece tightly. Employ parallels to back up the workpiece. Correctly position the T-slot nuts. The clamping force should be uniformly distributed. Set the table stops to avoid shifting.

For added security there is a strap clamp. Look for signs of vibrations during its operation. The cutting tool must be perfectly oriented. Make sure the workpiece surface does not contain any debris. Perform a basic verification with a dry run through of the setup.

How Can You Select the Right Cutting Tools for Curve Milling?

· Tool Types

The selection of tools determines milling curves. Ball-end mills should be used in order to achieve smooth edges on the work piece. Hard materials require 4-flute cutters. Carbide tools are ideal for accuracy. Change parameters of end mills. The flat-end mill is used to create straight only paths.

Face mills should be used when making wide cuts. Tools of small diameter are used to create fine curves. The other advantage is that high-speed steel (HSS) tools last longer. Indexable tools are the tools which have tips that are replaceable in nature. It assists in maintaining the temperature of the tools low. Ensure that the tool type is appropriate for the material to be worked on.

· Material Considerations

The type of material affects the milling curves. Carbide tools should be used in cutting steel. Aluminum needs HSS tools. Plastics are characterized by low cutting speeds. Interestingly, brass is easier to work with if the tools used are sharp. The cutting of titanium requires high feed rates.

The rate of tool wear is directly proportional to the hardness of the material. Soft materials require low spindle speeds. Adjust depth for brittle materials. Tool coatings reduce wear. Select the appropriate tool hardness to work on the material. Think about heat during the cutting processes.

· Tool Geometry

Geometry affects milling curves. It is recommended to use helix angles of 30 degrees in order to get smooth cuts. The large flutes subtract more material from the workpiece. Converts with less flute width offer better surface finish. Corner radius tools can be used to minimize chipping.

Clean cuts for sharp edges. To make angle cuts, you should use tapered tools. Influence of rake angles on chip formation. Relief angles help avoid tool rubbing. Tool length impacts stability. Tools diameters should be equal to depths of cut as much as possible. The right geometry results in proper and accurate cutting.

· Cutting Dynamics

Dynamics influence milling curves. Reduce feed rate to avoid chatter. High spindle speeds minimize vibration. Use dampers for stability. Modify cutting forces for hard materials. Chip load has an influence on surface finish. It helps to use constant pressure to get consistent cuts.

Avoid sudden tool movements. Monitor cutting temperature. Influence of tool wear on cutting dynamics. For smooth curves, balance forces. Cutting dynamics ensure precision.

· Performance Factors

Performance impacts milling curves. Check spindle speed and ensure that it is constant. Adopt the right lubrication practice to enhance the durability of your tools. Check tool wear regularly. Higher feed rates contribute to increased productivity. Decrease the depth of cut according to the hardness of the material used. Reduce tool deflection for enhanced accuracy.

They include the use of rigid setups in an effort to enhance stability. Chip removal helps to avoid clogging when it should be done correctly. Take a measurement of the surface finish after the milling process. Consistent parameters ensure quality. Performance factors have an impact on the result.

What Techniques Should Be Applied When Milling Curves?

· Milling Process

Any curve requires accurate CNC settings. Small end mill diameter, 10 mm, enables precise and tight radius. The spindle speed of 3000 RPM reduces tool wear. Feed rate of 250 mm/min helps in avoiding overheating of the material. Use G02/G03 for arcs. Accuracy is maintained by depth of cut of 2 mm. Climb milling reduces vibrations. CAM software produces continuous tool paths.

BT30 tool holder increases rigidity. Check backlash in ball screws. For a better grip always use ER collets. Inspect tool wear regularly. Maintain proper chip evacuation. Secure the workpiece on the vise. Optimize each parameter carefully.

· Technique Application

Use G41/G42 for accuracy. For higher finish one should choose 4-flute end mill. For better definition use 1mm step-over. Keep spindle load percentage to 70%. Optimize the cutting speed to 300 m/min according to the type of material. Set feed per tooth, 0.5mm. Optimize with CAM simulation.

Check that tool length offset, H01, corresponds to tool. Verify machine zero point. Ultimately, use fixture plates for repeatability. Select the correct cutter coating, TiN or TiALN. Check work offsets, G54. Use air blast to clean chips. Check surface finish with the help of profilometer. Implement adaptive clearing strategies.

· Smoothness Ensured

For the finishing cuts, the feed rate should be set to 200 mm/min. For curves, use a ball end mill, 6 mm diameter. Reduce the spindle speed down to 2000 RPM. Use a fine step-over, 0.5mm. Utilize finishing passes for smoothness. Inspect toolpath for errors. Ensure that the machine is rigid and minimize on vibrations. Guarantee adequate lubrication, avoid heat. Use high-precision collets.

Always check cutting edges for signs of dullness. It is also vital to implement the final polishing phase. Utilize the surface roughness tester. Cutting parameters should be varied depending on the hardness of the material being processed. Keep coolant flow steady.

· Accuracy Focus

For precision, adjust the cutting depth to a 1mm thickness. A tool presetter should be used to ensure that the correct measurements have been made. Verify spindle runout, 0.01 mm tolerance. Check the alignment of workpiece by using dial indicators. Adjust machine backlash compensation.

Choose high-quality end mills. Employ fine - pitch cutters for accuracy. Ensure tool length offsets are correct. Control and modify cutting forces. Ensure rigid machine setup. Verify toolpath with the help of CAD models. Use finishing passes for close tolerances. Ensure that part dimensions are accurate by use of calipers. Maintain tool sharpness. Implement in-process inspections.

· Process Optimization

Among them, the optimization of cutting parameters and the reduction of cycle time are highly important. Use high-efficiency milling techniques. Raise feed rate to 300 mm/min. Make sure that the spindle speed is set at 2500 RPM. Introduce dynamic toolpaths in CAM. Advanced tool coatings minimize wear. Minimize tool changes with modular tooling.

Depth of cut shall be set to the maximum in order to achieve maximum material removal. Use toolpath optimization software. Keep an eye on the load of machines and make sure that there is no overload. Implement real-time monitoring systems. Optimize coolant flow to achieve maximum efficiency. For improved results make use of high-speed spindles. Regularly assess and improve parameters.

Table On Setting Up The Milling Machine!

How Do You Optimize Speed and Feed Rates for Milling Curves?

· Speed Adjustments

For soft materials, adjust the spindle speed to 3000 RPM. Harder materials require 1500 RPM. Speed can be measured using a tachometer. Use appropriate speeds for cutting 10 mm or 12 mm diameter tools. Tools with small diameters call for higher speeds. Keep an eye on the spindle load, the optimum should be around 70%. Carbide tools should be used for higher speeds. Increase speed if chatter occurs.

Consult material's speed chart. Slower speed for deeper cuts, 2 mm. Monitore the tool condition. Cleaning spindle should be done frequently to maintain consistency. CNC should use variable speed settings. Optimize each job individually.

· Feed Rate Settings

The feed rate should be set to 250 mm/min for aluminum. Steel requires 150 mm/min. Utilize the feed per tooth, 0.05 mm. Calculate feed rate using RPM and tool diameter. Small tools as previously mentioned must be fed a slower rate than the larger tools. Sweep feed for smooth curves.

Also, ensure that the machine is not overloaded in order to prevent it from stalling. Program the CAM software for best paths. Lower feed rate for complex patterns. Reduce feed for roughing cuts.

Always abide to the manufacturer’s feed rates. It should be adjusted according to the hardness of the material being processed. Use adaptive feed control. Maintain feed rate constant in order to ensure high quality.

· Quality Impact

The right speed and feed make the curves look correct. Travel at low speeds to help minimize tool wear. Incorrect feed begets rough edges. Proper adjustment helps to minimize machine vibrations. Finer feed adjustments are needed for smooth finishes. Control surface roughness, strive for Ra 1.6. Good quality requires best tool paths. It has been shown that correct lubrication enhances surface finish.

Particularly look for burrs around the part and adjust as required. Continuous feed helps to prevent tool breakages. Examine cut edges with a magnifying glass. Fine-tune parameters for each material. Always make sure that the tool is sharp for the best outcome. Regularly check machine calibration.

· Optimization Tips

A feed and speed calculator should be employed. Start with manufacturer's recommendations. This should however vary depending on the size of the material and tool to be used. Check for problems with cutting sounds. Use high-speed machining techniques. Computer aided manufacturing to enhance tool paths. Ensure and correct the spindle alignment. Climb milling is preferred as it enhances surface finish.

Implement adaptive clearing strategies. Regularly inspect tool condition. Fine-tune settings for every work. Keep your work environment clean. This should be achieved by using coolant to control heat. Keep machine components lubricated. Adjust and optimize settings as often as possible.

Conclusion

In this blog, we were introduced to Milling Curves including RPM, tool type, feed rate, and chip load. Now, let’s apply these steps to your projects. Visit CNCYANGSEN for more tips and tools. Enjoy your milling journey!
