How to Select Parameters for Machining Aluminum on a CNC Machine

Nov 04, 2024

CNC machining of aluminum is one of the widely used service all over the world in manufacturing industries due to its flexibility and swift service. The choice of the right parameters brings the best results when implementing machining operations.

This article will discuss the fundamentals of Aluminum Machining Methods, Material Selection and Improving Your CNC Performance. Knowledge of those aspects can produce a positive impact on the tool durability, surface finish, and productivity.

Aluminum is widely used in diverse applications because of properties such as light weight, high corrosion resistance and high strength to weight ratios solutions. Nevertheless, it is not very easy to machine aluminum. Those very same attributes that make aluminum so utilitarian also cause highly specific machining challenges, namely heat and chips.

This guide will help you with the best tools to tackle all the challenges arising in the course of machining of aluminum.



Choosing the Right Aluminum Alloy

Choosing the appropriate aluminum alloy is the foundation of successful CNC machining. Different alloys have varying properties that can significantly affect the machining process.



Common Aluminum Alloys for CNC

The most commonly used aluminum alloys in CNC machining aluminum include:

6061 Aluminum: It has good mechanical properties and is easily welded and due to its high strength-to- weight ratio it is suitable for structural purposes, and has good corrosion resistance.

7075 Aluminum: This specific material is high strength alloy, which finds application in aerospace industries. It has high strength to weight ratio but slightly less weld able than 6061.

2024 Aluminum: Popular for its fatigue strength and high strength, this alloy is in the aerospace industry for its productions. But this is possible by using proper machining methods to get the accurate results every time.

That is to say, each of these alloys has certain characteristics for machining. For example although 6061 is easier to prevent resolution and form better, 7075 needs very much attention on other parameters like feed rate, cutting speed for avoiding overheating and tool wear.



Alloy-Specific Machining Considerations

Knowledge about the characteristics of the different aluminum alloys will guide you on the appropriate aluminum CNC tool to use and the right parameters to set on your machine. For instance, it is easier to machine 6061 aluminum as compared to 7075 aluminum that causes more heat and therefore advantage lower cutting speed and feeds. These properties determine your machining strategy, and the alloy selection must depend on its application requirements.

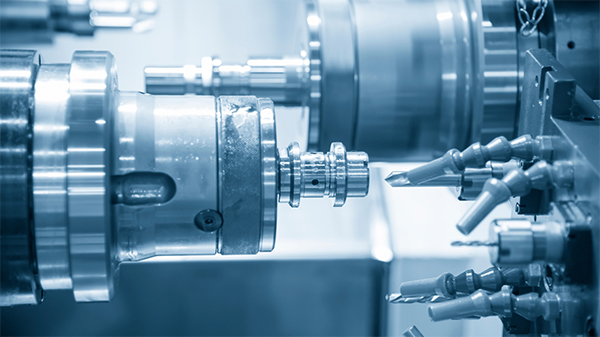

Machining Aluminum on a CNC Machine



Key CNC Machining Parameters for Aluminum

CNC machining is based on a number of key factors, which determine the productivity of the machining process and the characteristics of the produced product. These are cutting speed, spindle speed, feed rate, depth of cut, plunge rate, chip load and others. Knowledge of these parameter is important to get the right outcomes as planned.

1. Cutting Speed

Cutting speed can defined as the speed at which the cutting tool is fed across the material, normally expressed in feet per minute or meter per minute. This parameter directly influences the material removal rate and the finish characteristic of the work piece.

An optimal cutting speed optimizes the tool life and productivity of presses and tools. High speeds can produce heat which is bad for the cutting tool and poor machinability and surface finish for low speeds. The formula for calculating cutting speed (Cs) is:

Cs = π x d x n

Where:

π = 3.14

d = workpiece diameter

n = spindle speed in RPM



2. Feed Rate

Feed rate refers to the distance through which the cutting tool penetrates into the workpiece per one spindle revolution affecting the surface in finish, tool durability and rate of machining. It is normally defined in Inches Per Minute (IPM) or Millimeters Per Minute (MM/min).

Controlling the feed rate, tin and out material removal rate and tool deterioration rate is maintained. These conditions expose the tools to wear off very fast when the feed rate is jacked up while taking a lot of time when the feed rate is reduced.

The formula for feed rate (F) is:

F=f×n

Where:

f = tool shift per revolution (measured in mm/rev)

n = spindle speed (measured in RPM)

Determining the Right Feed Rate

In fact the feed rate has its value of give depending on the type of material, the condition of the tool, available horse power of the machine, quality of finish and life of the tool.

As a rule, working with materials of a softer nature allows the use of higher feed rates, while materials such as aluminum and copper which are of higher hardness, should be used at lower rates of Feed to prevent the tool more wear while keeping the quality up.



3. Depth of Cut

Depth of cut indicates the thickness of material removed in one pass, generally ranging from 0.5 to 2 millimeters, depending on material type and machine capabilities. The specific depth is not standardized but should be selected based on material properties and tool abilities.

Guidelines for Depth of Cut

Soft Materials (e.g., Aluminum): Depths can be higher (1-2 mm).

Hard Materials (e.g., Steel): Depths should be lower (0.5-1 mm).



4. Spindle Speed (RPM)

Spindle speed is the rotational speed of the cutting tool or workpiece, measured in revolutions per minute (RPM). It plays a critical role in cutting efficiency, tool life, and surface finish quality. The spindle speed should be adjusted according to the material being machined.

Calculating Spindle Speed

The formula for spindle speed (n) is:

n=Cs×1000 / π×d

Where:

Cs= cutting speed (m/min)

d= workpiece diameter (mm)



5. SFM / Surface Feet per Minute

Surface Feet per Minute (SFM) measures cutting speed at the workpiece's surface and significantly influences cutting efficiency and surface quality. The formula for SFM is:

SFM= π× D × RPM / 12

Where:

D = workpiece diameter (inches)

RPM= spindle speed (revolutions per minute)



6. Plunge Rate

Plunge rate is the speed at which the cutting tool moves vertically into the material, typically measured in inches per minute (IPM) or millimeters per minute (MM/min). A well-optimized plunge rate reduces wear on the cutting tool and enhances machining efficiency. The formula for plunge rate is:

Plunge Rate = Feed per Tooth Number of Flutes Spindle Speed



7. Chip Load

Chip load refers to the material removed by each cutting edge during a pass. Maintaining an optimal chip load is essential for tool health, surface finish quality, and machining efficiency. The right chip load balances several factors, including material type, cutting tool condition, and machine capabilities.

Balancing Chip Load

Material Type: Softer materials usually allow for higher chip loads.

Cutting Tool: High-quality tools can handle larger chip loads.

Machine Power: More powerful machines can accommodate higher chip loads without compromising accuracy.



Recommended Parameters for Aluminum

Aluminium is one of the most used materials in CNC machining since it is light, strong, and easy to machined. In order to achieve best results, the cutting instruments must be sharp to reduce the amount of heat produced while machining. further the rate of cooling and lubricating plays tremendous role in life of the cutting tool as well as surface finish.

Spindle Speed: 3000-6000 RPM

Cutting Speed: 600-1000 feet per minute (ft/min)

• Feed Rate: 0.002-0.005 inches per tooth (IPT)

Depth of Cut: 0.04-0.10 inches

Surface Finish: High spindle speeds combined with low feed rates help achieve a smooth surface finish.





Tooling Selection for CNC Machining Aluminum

Choice of the right tooling is among the critical factors in CNC milling aluminium processes. The selection of tooling affects the whole process of machining or production and overall quality of finished products.

Best Tool Materials for Aluminum

When it comes to the aluminum machining, the type of material used on the tool exerts a lot of influence. Common materials include:

Carbide Tools: Carbide tools are applied in aluminum machining because of their hardness or resistance to wear. Needing less force, they can handle elevated spindle speeds and also deliver richer finished surfaces than HSS tools.

HSS Tools: HSS are cheaper than carbide, although their performance may not be as fast and may not have a long span as the carbide tools. But they can be appropriate for small production quantity work or less intensive use.

Tool Coatings and Geometries for Efficiency

Tool coatings, such as TiN (Titanium Nitride) or TiAlN (Titanium Aluminum Nitride), can significantly enhance performance by reducing friction and improving wear resistance. Additionally, selecting the right tool geometry can optimize performance:

• High Helix Angles: Tools with high helix angles can improve chip evacuation and reduce the likelihood of tool sticking, which is critical in aluminum machining.

Polished Flutes: Polished flute designs help in effective chip removal and prevent chip packing, enhancing overall efficiency.



Best Practices for Optimizing CNC Machining Parameters

Applying the best practices in CNC machining is crucial if one wants to achieve optimum productivity, tool durability and obtain quality part. Here are some strategies to consider:

Adaptive Cutting Strategies

Adaptive cutting parameters strategies let the user modify one or several of a line’s parameters during the machining phase depending on the current conditions. Besides, this also increases performance and decreases the probability of tool breakage, thus increasing tool durability.

Real-Time Data Adjustment

Such applications can be integrated to monitor the desired regions and make needed corrections to the cutting parameters as the conditions allow. Overheating of the tools can be eliminated through temperature control as can be seen through the monitoring of performance like the times it has been used before it needs replacement.

CNC Software Optimization

Every current CNC machinery contains computer programs that can automatically fine-tune basic settings as per usage. The use of these features can result in improved tests and quality of the final products and improved machining of the workpieces.

Heat Management Techniques

Heat control is very important in aluminum CNC machining. By selecting the appropriate cutting speeds, feed rates and the right approach to coolant application it is possible to minimize heat buildup and therefore reduce the tendency for tool flank wear and Globe finishes.

Advanced Tools of Geometric Control

There is optimum tool geometries to be used so that performance and the outcome can also be improved depending on the task that is to be machined. Basically, the tools used in aluminum machining should in particular prioritize the issue of chip removal and heat dissipation.



Using Coolants and Lubrication in CNC Aluminum Machining

Proper use of coolants and lubrication is vital in CNC machining to manage heat and improve tool performance.

Importance of Coolant for Heat Management: Coolants reduce heat buildup during machining, preventing tool wear and ensuring a better surface finish. They can also assist in flushing away chips, improving chip management.

Best Coolant Practices: Water-soluble coolants are often effective for aluminum machining. It’s essential to choose a coolant compatible with aluminum to prevent chemical reactions that could degrade the material or tooling.



Common Mistakes to Avoid in CNC Aluminum Machining

Surprisingly even expert machinists may find themselves caught in what impacts on the machining process. Here are common mistakes to watch out for:

Incorrect Spindle Speed

When running a spindle at wrong speeds, the tools often end up being burnt and developing other early signs of failure. Remember that your spindle speed should always be adjusted to the certain type of the aluminum alloy you are to work with.

Improper Feed Rates

Applying wrong feed rates may lead to high amount of tool wear or low quality of surface finish. The rate of feed must be equal with the rate of cutting in order to achieve great results.

Poor Chip Evacuation

Poor or inadequate chip evacuation also poses problems such as chip packing, hence a poor finish and high tool wear. It will consequently be important for your machining strategy to always have a proper plan for dealing with the chips.

Neglecting Coolants

Employing improper coolants means that they can overheat and this will reduce the shelf life of the tools. Modify a cooling technique that will suit the machining conditions of your project.

Inefficient Tool path Planning

When proper path of the tool is not planned it takes more time in the machining and wear on the tool increases. It is always advisable to spend more time to develop the correct tool path in order to take into account all instances accessible in the process.



Conclusion

Choosing the right parameters of CNC machining of aluminum involves not only some specific steps, but also takes into account several factors. The selection of alloys and type of tooling, the cutting speeds and feed rates all the measures up to be small decisions that impact the overall efficiency of your machining process. When all the specifics of the aluminum machining and use of the Chevron aluminum CNC are fully understood then one is able to get the best returns with little effort and expenses as is necessary.

The information contained here will inspire you to constantly research new technologies and methods to become a prime machining machinery operator wherever you may be assigned. This is because adopting the culture of continual enhancement in the flow of work shall not only improve your product quality but also the sustainability of your CNC operations.
