Mastering Precision: Aerospace CNC Technology

Feb 21, 2024

In the dynamic world of aerospace manufacturing, precision is not just a requirement; it's a necessity. Mastering Precision: Aerospace CNC Technology is crucial for pushing the boundaries of innovation and ensuring the safety and reliability of aerospace components. This article dives into the realm of CNC technology, exploring its intricacies and highlighting the importance of precision in the aerospace industry.

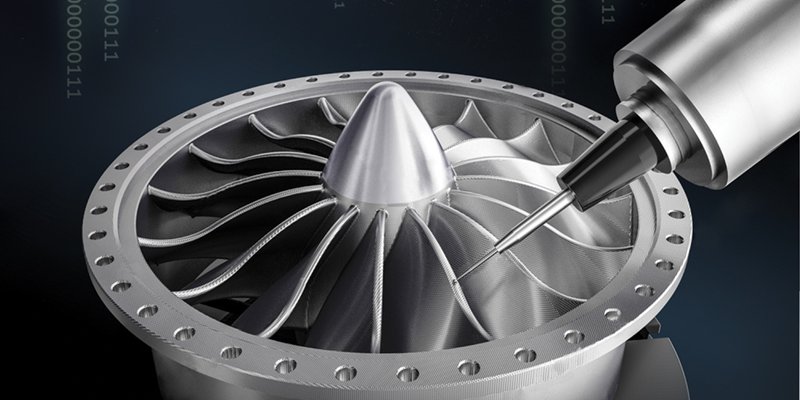

Aerospace CNC technology

Learn About Aerospace CNC technology

In the complex aerospace manufacturing field, the key role played by CNC (computer numerical control) technology cannot be underestimated.

Definition and Basics of CNC

At its core, CNC technology involves the use of computers to control machining tools and processes in the production of sophisticated aerospace components. CNC systems interpret digital design specifications and translate them into precise movements and manipulations of raw materials, ensuring unparalleled accuracy.

The Significance of Precision in Aerospace Manufacturing

Precision is key in aerospace manufacturing, and CNC technology is at the forefront of achieving this level of precision. The aerospace industry requires components with the smallest tolerances, and cnc machine excel at delivering accuracy down to microns, meeting the stringent requirements of aerospace applications.

The Evolution of Aerospace CNC Technology

Over the years, CNC technology has undergone transformative developments to meet the growing demands of the aerospace sector. From basic CNC to complex computer systems, the development history of CNC in the aerospace field reflects the unremitting pursuit of precision and efficiency.

In its early days, CNC was mainly used for basic operations, but as technology advanced, its role expanded exponentially. Today, cnc machine are an integral part of the production of complex aerospace components, from engine parts to structural elements, contributing to the overall progress of the industry.



Key Components of Aerospace CNC Machine

Aerospace cnc machine are complex systems made up of multiple basic components, each playing a vital role in achieving the unparalleled precision required for aerospace manufacturing.

Aerospace CNC Machine

The core of aerospace cnc machine is special machine tools. These tools, including milling machines, lathes and milling machines, are equipped with cutting-edge technology to shape raw materials with the highest precision. The quality and functionality of these tools directly affects the accuracy and complexity of the final aerospace part.

Computer Aided Design (CAD) in CNC

The integration of computer-aided design (CAD) is the cornerstone of aerospace CNC technology. CAD allows engineers and designers to create digital models of aerospace components with meticulous detail. These digital designs serve as blueprints for the CNC machine tool, guiding its movement and operation to replicate the precise dimensions and functionality required.

The Importance of Accurate Programming

Precision programming is the backbone of aerospace cnc machine . Skilled programmers use specialized software to create a set of instructions that dictate each movement and operation of the CNC system. The accuracy of these instructions translates directly into the accuracy of the final aerospace part. As CNC technology advances, programming capabilities continue to evolve, allowing for more complex and efficient manufacturing processes.

The synergy between these key components is critical to mastering the capabilities of aerospace cnc machine . The combination of advanced machine tools, sophisticated CAD systems and precise programming results in a manufacturing process that not only meets but often exceeds the rigorous standards of the aerospace industry.



CNC Aerospace Machining Technology

In the dynamic landscape of aerospace manufacturing, the use of CNC (computer numerical control) technology is critical for precision and efficiency. Understanding the machining processes involved in CNC aerospace is critical to grasping the intricacies of producing components that meet the rigorous requirements of the aerospace industry.

1. Milling operations

Milling is a basic processing technology in aerospace CNC machining. It involves using a rotating tool to remove material from a workpiece. CNC milling machines can perform complex operations, producing complex shapes and contours critical to aerospace components. The process is widely used to manufacture structural elements and engine components.

2. Turning operations

Turning operations in aerospace CNC require the workpiece to rotate on a spindle while the cutting tool shapes the workpiece. This process is indispensable for the production of cylindrical components such as shafts, pins and connectors. CNC turning ensures high precision and repeatability when manufacturing parts with tight tolerances.

3. Drilling and tapping

Drilling and tapping operations are critical for creating holes and threads in aerospace components. CNC machines perform these processes precisely, ensuring precise alignment and depth. This is critical for the assembly of aerospace structures and the integration of various components.

4. Electrical discharge machining (EDM)

EDM is used in the CNC aerospace industry for complex and precise cuts of conductive materials. The process involves using electrical discharges to erode material, enabling the creation of complex shapes and contours. EDM is particularly valuable for manufacturing parts with challenging geometries.

5. Grinding operations

Precision grinding is used to achieve tight tolerances and surface finishes in aerospace CNC. CNC grinders use grinding wheels to remove material and ensure parts meet precise specifications. This process is critical for applications where smooth surfaces and precise dimensions are critical.

6. Water jet and laser cutting

Waterjet and laser cutting processes utilize high-pressure water or laser beams to precisely cut materials. These methods are suitable for aerospace parts that require complex shapes and minimal material waste. CNC control ensures the accuracy of these cutting processes, contributing to efficient, precise manufacturing.

Understanding these machining processes helps understand the versatility of CNC technology in aerospace manufacturing. The ability to seamlessly integrate various processes under CNC control enables the production of complex and high-precision components that meet the stringent requirements of the aerospace industry.



Advantages of Precision Aerospace CNC

Precision CNC (computer numerical control) in aerospace is not just a technical requirement; It is a basic necessity that provides many vital benefits to the aerospace industry. Let’s dive into the advantages that precision brings to CNC technology in aerospace manufacturing.

1. Enhance the Safety of Aerospace Applications

The precision of CNC ensures aerospace parts meet precise specifications, minimizing the risk of errors and defects. In the safety-critical aerospace industry, the reliability of a component is directly related to its accuracy. CNC technology's ability to achieve tight tolerances and precise shapes contributes significantly to the overall safety of aerospace systems.

2. Cost Effectiveness and Material Optimization

CNC precision enables efficient use of materials, reduces waste and optimizes costs. The ability to manufacture complex parts with the smallest tolerances allows manufacturers to maximize the use of expensive materials, helping to make aerospace manufacturing more cost-effective. This efficiency is becoming increasingly important for producing lightweight yet strong components.

3. Improve Performance and Reliability

Aerospace systems require optimal performance and reliability. Precision-manufactured components using CNC technology help improve the overall efficiency and reliability of aerospace applications. Accurate reproduction of design specifications ensures each component operates as expected, thereby increasing the performance and service life of aerospace systems.

4. Simplify Manufacturing Processes

The precision of CNC technology simplifies manufacturing processes in the aerospace sector. The automation and accuracy provided by CNC machines reduce the need for manual intervention, thereby minimizing the risk of human error. This not only improves efficiency but also speeds up production schedules, a key factor in the aerospace industry where timely delivery is crucial.

5. Consistency of Production Runs

CNC technology excels at producing consistent results across multiple production runs. The accuracy achieved in one batch of components can be replicated with the same level of accuracy in subsequent runs. This consistency is valuable in aerospace manufacturing, where component consistency is critical for assembly and system integration.

6. Versatility in Component Complexity

The precision of CNC enables the manufacture of highly complex aerospace components. The technology’s versatility enables the manufacture of parts with complex geometries and tight tolerances that are not possible with traditional machining methods. This opens the door to design and functional innovation for aerospace applications.

contact us



Typical surface finish of CNC aircraft parts

In the aerospace industry where precision and performance are critical, the surface finish of CNC (computer numerically controlled) aircraft parts plays a vital role. Achieving the correct surface finish is critical for functionality, safety and overall aesthetics. Let’s explore some typical surface finishes used in CNC machining of aircraft components.

1. Mirror treatment

Mirror features a highly reflective surface without any visible scratches or imperfections. This type of surface treatment is typically applied to components where aerodynamics and drag reduction are critical. Wing surfaces, fuselage panels and certain engine components benefit from a mirror finish to help achieve optimal airflow and efficiency.

2. Bead blasting

Bead blasting involves spraying fine glass beads under high pressure onto the surface of aircraft components. This process produces a uniform matte surface that effectively removes any machining marks or imperfections. Sandblasting is typically used on parts that require a smooth, non-reflective surface, such as certain structural elements and interior components.

3. Anodizing

Anodizing is an electrochemical process that adds a layer of oxide to the surface of a material. This not only enhances corrosion resistance but also provides a durable and aesthetically pleasing surface. Anodized finishes are commonly used on aerospace components exposed to harsh environmental conditions, such as aircraft exterior surfaces and certain structural elements.

4.Chemical conversion coating

Chemical conversion coatings, such as chromate conversion coatings, are applied to aluminum aircraft components to enhance corrosion resistance. These coatings form a thin film on the surface, providing a protective layer. Depending on the specific coating used, the finish can vary from iridescent to gold or clear.

5. Passivation

Passivation is a chemical treatment applied to stainless steel components to remove contaminants and enhance corrosion resistance. This process leaves a clean, inert layer on the surface, helping to extend the life of the part. Passivation is often used on critical areas of aircraft such as engine components and fasteners.

6. Powder coating

Powder coating involves the electrostatic application of a dry powder to the surface of an aircraft component, which is then cured to create a durable surface. This method offers a variety of color options and excellent chemical and abrasion resistance. Powder coatings are often used on non-structural parts and decorative elements.

Selecting the appropriate surface finish for a CNC aircraft part depends on a variety of factors, including the part's functionality, material properties, and environmental factors. The correct surface finish not only enhances the visual appeal of an aircraft but also helps improve its overall performance, safety and service life.



Aerospace Parts Processing Skills

Aerospace Parts Processing Skills

Machining aerospace parts requires precision, attention to detail and adherence to strict quality standards. Here are essential tips to ensure successful machining in the aerospace industry:

1. Selection and Understanding of Materials

Choose materials designed specifically for aerospace applications, considering factors such as strength, weight and heat resistance. Understanding material properties ensures optimal machining parameters and tool selection.

2. Rigorous Planning and Planning

Thoroughly plan the machining process and carefully program the CNC machine. Accurate programming is critical to achieving the tight tolerances and complex geometries required for aerospace components. Increase efficiency with advanced CAM software.

3. Tool selection and Maintenance

Choose high-quality cutting tools designed specifically for aerospace materials. Check and maintain your tools regularly to ensure they stay sharp and in top condition. Blunt tools not only affect accuracy but also increase the risk of damage to the workpiece.

4. Clamp stability Design

Creates a strong fixture that provides stability during machining. Tight fixation minimizes vibration and ensures consistent results. Well-designed fixtures also facilitate efficient loading and unloading of workpieces.

5. Temperature Control

Maintain a controlled processing environment, especially temperature. Temperature fluctuations can affect material properties and cause dimensional changes. A climate-controlled processing environment helps achieve consistent results.

6. Quality Assurance and Inspection

Strict quality control measures are implemented throughout the entire processing process. Machined parts are regularly inspected using advanced measuring tools to verify dimensional accuracy and surface finish. Any deviations are promptly addressed to maintain high quality standards.

7. Lubrication and coolant management

Use appropriate lubricants and coolants to reduce friction, heat and tool wear. Efficient cooling is critical to preventing thermal deformation of aerospace materials. Monitor coolant level and cleanliness regularly to ensure optimal performance.

8. Considerations for Burr Control

Burr formation is common in machining, but is especially important in aerospace applications where accuracy is critical. Use proper deburring techniques to eliminate sharp edges and ensure the integrity of the finished part.

9. Collaboration and Communication

Maintain open communication between design, programming and machining teams. Collaborative efforts help address challenges and ensure the final product meets expected design and quality standards.

10. Ongoing Training and Skills Development

Invest in training for machinists and operators to keep them up to date on the latest machining techniques and techniques. Ongoing skills development enhances the team's ability to adapt to changing aerospace manufacturing requirements.



Future Trends in Aerospace CNC

Looking ahead, the article explores future trends in aerospace CNC technology. Innovations, potential advancements in precision, and the role of CNC in future space exploration are discussed, offering a glimpse into the evolving landscape of aerospace manufacturing.



Conclusion

In conclusion, mastering precision in aerospace CNC technology is not just a goal; it's a continuous journey. The article emphasizes the importance of precision in ensuring the safety and reliability of aerospace components, underscoring the need for continual evolution and adaptation.
