Slot Mill Vs End Mill becomes a key topic of milling tools as it is perceived by machining professionals. This study uncovers the subtle differences and uses of each tool, enabling professionals to improve their milling activities. It is not just efficiency that understanding these differences enhances but also providing accurate results in a variety of milling situations, an aspect critical to the contemporary industrial setup.

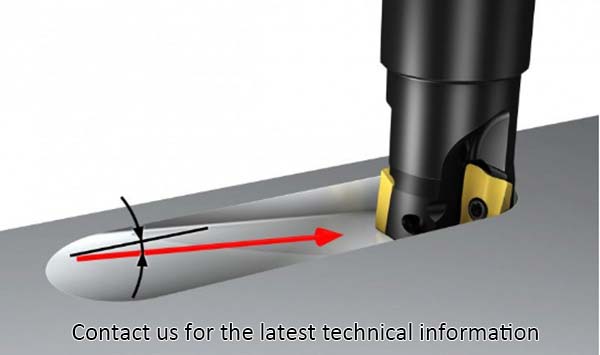

Slot mills, distinct from end mills, specialize in cutting slots, grooves, and keyways. In contrast, end mills serve broader purposes, including profiling and cavity work.
Slot mills feature fewer flutes, optimizing for straight path creation. Conversely, end mills have more flutes, enhancing versatility in various cutting actions. Slot mills' straight flute design is pivotal for smooth, linear cuts, whereas end mills exhibit variable flute designs, catering to complex geometries.
Precision in slot milling demands rigidity, achieved through robust materials like HSS and carbide. End mills often require high RPM, benefitting from diverse coatings like TiAlN for heat resistance. Each tool's geometry, including flute number and helix angle, is tailored for its specific task, marking the core of their distinction.
High-Speed Steel (HSS) in slot mills ensures durability against high temperatures. HSS's resilience makes it ideal for prolonged slot cutting operations. Preferred for its cost-effectiveness, HSS remains a staple in less abrasive slot milling.
Carbide inserts in slot mills offer unmatched hardness and wear resistance. Ideal for high-speed operations, these inserts extend the tool's lifespan significantly. Carbide's rigidity translates into precise, clean slot cuts.
Flute geometry in slot mills is crucial for chip removal efficiency. Fewer, deeper flutes are typical, ensuring smooth slot creation. This design aids in minimizing friction and heat build-up during cutting.
The helix angle in slot mills impacts the cutting process's smoothness. Lower helix angles are common, providing the necessary strength for straight, precise slots. This angle choice directly affects cutting force distribution and finish quality.
Coatings like TiN and AlTiN on slot mills enhance performance and longevity. These coatings reduce wear, allowing for higher cutting speeds and longer tool life. Their heat-resistant properties are particularly beneficial in prolonged slot milling operations.

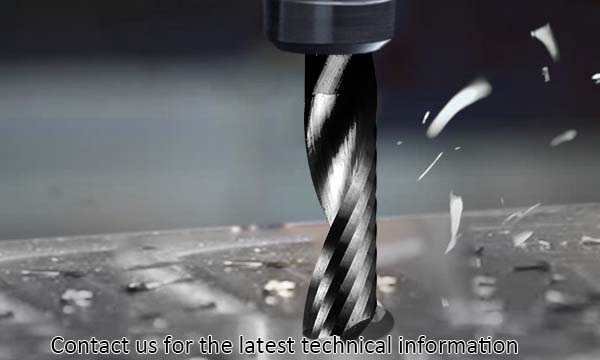

End mills, versatile in function, differ significantly from slot mills. Engineered for intricate cutting tasks, they handle profiling, drilling, and complex geometrical shaping.
Their design incorporates multiple flutes, varying in number and shape, enabling diverse cutting actions. End mills, unlike slot mills, offer flexibility in cutting direction, allowing both horizontal and vertical machining center movements. High-speed and feed rates are achievable due to their multi-flute configuration.
Material options like carbide enhance precision and durability. End mills' helix angles are varied, adapting to different material types and cutting requirements.
They often feature specialized coatings, ensuring longevity and performance under high thermal conditions. The key distinction lies in their application range; end mills cater to a broader scope compared to the more specialized slot mills.
Solid Carbide in end mills offers supreme hardness and thermal resistance. Ideal for high precision and high-speed operations, it ensures minimal wear during intensive use.
Multi-flute designs in end mills enhance cutting efficiency and finish quality. More flutes equate to finer finishes and faster feed rates, suitable for complex geometries.
Corner radius in end mills strengthens the tool's edge, reducing chipping. It provides a smoother finish, ideal for contouring and profiling operations.
Micrograin structure in end mills provides enhanced toughness and detail precision. It's particularly effective in intricate milling tasks, offering superior surface finishes.
Variable helix angles in end mills reduce vibration and harmonics during cutting. This design improves tool life and finish quality, especially in hard-to-machine materials.
Slot mills typically feature fewer flutes, optimized for linear cutting paths. In contrast, end mills exhibit a higher flute count, enhancing their versatility for complex geometries. This flute variation underpins their distinct cutting capabilities, slot mills focusing on straight, precise slots, and end mills on varied profiles.
The cutting edge in slot mills is designed for straightforward, uninterrupted cuts. End mills, however, boast edges tailored for multifaceted tasks, including intricate profiling and detailed carving. These differences in edge design reflect their specialized applications in milling operations and also application of gantry machining center.
Shank types in slot mills and end mills diverge to suit their respective functions. Slot mills often have robust, straightforward shanks for stability in linear cuts. End mills feature shanks designed for versatility, accommodating various cutting angles and material types.
Core diameter plays a pivotal role in tool stability. Slot mills have larger core diameters, providing the necessary strength for straight cuts. End mills may have smaller core diameters, allowing for flexibility and complex maneuvering during intricate milling tasks.
Coating materials in slot and end mills enhance performance and longevity. Slot mills benefit from coatings that resist wear in repetitive linear motions. End mills use advanced coatings to withstand diverse cutting environments and materials, ensuring durability across various applications.
End geometry in slot mills is typically straightforward, aligning with their linear cutting task. End mills, on the other hand, feature complex geometries to handle diverse milling operations, including angled cuts and intricate profiles.
Tool length varies between slot and end mills to match their specific uses. Slot mills often have shorter lengths for enhanced stability in straight cuts. End mills may be longer, providing reach and flexibility needed for complex milling tasks.
Helix angles in slot mills are usually lower, suitable for their straightforward cutting style. End mills have varied helix angles, tailored to different materials and cutting requirements, reflecting their adaptability in complex milling operations.
|
Feature |
Slot Mill |
End Mill |
|
Flute Count |
2-4, optimized for linear cutting |
2-8, versatile for various applications |
|
Cutting Edge |
Straight, efficient in axial direction |
Variable, better for lateral movement |
|
Shank Type |
Cylindrical, fits standard holders |
Various (Weldon, threaded), specific requirements |
|
Core Diameter |
Larger, withstands heavy loads |
Smaller, precision in tight spaces |
|
Coating Material |
TiAlN, AlTiN for high-temp resistance |
TiCN, AlCrN for diverse materials |
|
End Geometry |
Square end, for plunge cutting |
Ball nose, corner radius for contours |
|
Tool Length |
Shorter, stability in deep slots |
Longer, reach in cavities, deep milling |
|
Helix Angle |
Low (30°), for strength in slotting |
High (45°), smooth, efficient chip evacuation |
Table on Slot Mill Vs End Mill: The Design Differences!
For groove cutting, slot mills excel, their design tailored for creating precise, straight grooves. Their fewer, deeper flutes ensure clean, uninterrupted cuts, ideal for grooving operations in various materials.
End mills shine in contour milling, their varied flute designs adept at intricate shapes. Their flexibility allows for smooth transitions in complex contours, making them indispensable for detailed milling tasks.
Pocketing tasks benefit from end mills, their multi-flute design efficiently removing material. They navigate the pocket's corners and sides with precision, ideal for creating recesses in workpieces.
End mills are preferred for surface finishing, their higher flute count yielding finer finishes. They handle varied surface contours with ease, ensuring smooth, polished results across diverse materials.
Slot mills are the go-to for slotting, their straight and fewer flutes providing the necessary rigidity. They produce clean, straight slots with precision, essential for keyways and other slotting applications.
While not primarily designed for drilling, certain end mills can perform drilling tasks. Their versatile cutting edges and tip geometry allow for plunge cutting, suitable for creating holes.
End mills, especially those with coarse teeth, are effective for roughing. They remove large material volumes quickly, preparing workpieces for subsequent finishing operations.
Slot mills offer precise dimensional tolerance in slotting tasks. Their design ensures accurate, straight slots, crucial in maintaining tight tolerances. End mills provide versatility in maintaining dimensions across complex shapes.
End mills yield superior surface finishes, their multiple flutes creating smooth, polished surfaces. Ideal for intricate milling, they leave a high-quality finish on the workpiece.
Chip evacuation is efficient in slot mills, their flute design aiding in chip clearance. End mills, with their varied flute counts, also excel in chip removal, especially in complex milling operations.
End mills are designed to reduce vibration in intricate milling, enhancing precision. Their variable helix angles and flute counts play a key role in minimizing vibration during complex cuts.
Slot mills exert focused cutting force, essential for straight, precise slots. End mills distribute cutting forces across multiple flutes, reducing the load on each flute during complex milling tasks.
Tool stability is paramount in slot mills for linear cuts. Their robust design ensures steady, accurate slotting. End mills, with varied geometries, maintain stability across different milling operations.
End mills operate efficiently across a wide speed range, adapting to different materials and milling requirements. Their design allows for high-speed operations without sacrificing precision or finish quality.
Slot mills display commendable wear resistance, especially in linear slot cutting, prolonging their lifespan. End mills, designed for varied applications, also exhibit high wear resistance, essential for maintaining precision over multiple uses.
End mills are notable for their heat tolerance, crucial in high-speed milling. This characteristic ensures their structural integrity under thermal stress. Slot mills, while less exposed to extreme heat, also maintain performance at elevated temperatures.
Impact strength is crucial for slot mills, enduring the stress of straight cuts. End mills, versatile in application, possess robust impact strength to withstand varied milling pressures and impacts.
Flute wear in slot mills is typically uniform, contributing to consistent performance. End mills experience varied flute wear, depending on cutting complexity, yet are designed to sustain efficiency despite wear.
Edge chipping, less common in slot mills due to their straight cutting action, is minimized. End mills, exposed to diverse cutting angles, are engineered to resist edge chipping, maintaining cutting precision.
Shank integrity in slot mills ensures steady, accurate cuts. End mills, with their complex applications, also prioritize shank integrity for consistent performance across various milling operations.
Coating durability enhances the life of both slot and end mills. Slot mills benefit from coatings that withstand repetitive linear motion, while end mills require coatings resilient against diverse cutting environments.
Slot mills excel in efficient material removal in linear cutting paths. End mills, with their multi-flute design, are adept at removing material in complex milling tasks, maximizing efficiency.
End mills support higher feed rates due to their intricate flute design, essential for complex milling. Slot mills, focused on linear cuts, maintain a consistent feed rate, optimizing material removal efficiency.
End mills are designed for high cutting speeds, adapting to various materials and geometries. Slot mills, while effective at lower speeds, ensure precision in straight-line cutting.
Power consumption in slot mills is optimized for efficiency in linear cutting tasks. End mills, with their varied applications, are engineered for power efficiency across a range of speeds and materials.
Coolant efficiency is vital for both tools, with end mills requiring effective cooling in complex operations. Slot mills benefit from coolants that maintain temperature and lubrication during extended straight cuts.
End mills offer remarkable tool flexibility, adapting to diverse milling tasks. Slot mills, while less flexible, and excel in their specific application of creating precise slots and grooves.
Chip control quality in slot mills is straightforward, aligning with their linear cutting action. End mills, designed for complex geometries, incorporate advanced chip control mechanisms, essential for maintaining cleanliness and efficiency in milling operations.
Slot mills generally have a lower initial cost compared to end mills. Their simpler design translates into affordability, especially for specific tasks. End mills, with their complex design and versatility, command a higher initial investment.
Maintenance costs for slot mills are relatively lower, given their straightforward application. End mills, due to their varied usage, might incur higher maintenance expenses, considering their multifaceted design.
Slot mills typically have a longer lifespan in their specific tasks, reducing replacement frequency. End mills, subjected to diverse operations, may require more frequent replacements depending on usage intensity.
End mills offer greater versatility, which can justify their higher cost. Their ability to perform multiple tasks can outweigh the expense, offering more value. Slot mills, specialized in nature, offer less versatility.
Bulk purchases of slot mills are usually more economical due to their lower individual price. End mills, being more expensive, might have higher bulk purchase costs but offer more functionality per tool.
Custom end mills for specific tasks can add to their cost. Slot mills, typically used for standard tasks, incur lower customization expenses.
Resharpening slot mills can be less costly due to their simpler geometry. End mills might require more precise and thus costlier resharpening processes, reflecting their complex design.
A. While slot mills and end mills belong to the same group of machines, they serve different purposes. They are not typically interchangeable. However, slot mills outperform in linear cutting while end mills are designed for more advanced machining operations.
A. Flute number significantly impacts performance. Slot mills most often have reduced number of flutes that are optimal for clean, straight cuts. The more flutes that are used by the end mills allow them to implement complex geometries and finishes.
A. Safety is paramount. Get protective clothing, correct mounting of tools, and observance to operate procedures. The regular inspection and maintenance of the tools are necessary to avoid accidents.
A. Milling efficiency and finish quality greatly depend on the material of tool. Hard materials such as carbide improve precision and reliability while soft solutions may be the most appropriate for certain tasks or types of material.
Finally, Slot Mill Vs End Mill Comparison reveals crucial differences important in the right tool selection. They all have various strengths that are specifically designed for milling operations.
To gain more insights and to take a closer look at the precision milling tools, visit CNCYANGSEN. Learn how to pick the next best tool for your project and be able to do every cut with perfect accuracy.
