In the machining world, where being very accurate and working efficiently is important, how fast the surface and cutting tool moves is very important. For people who work with machines and engineers, getting the right balance is like being a skilled artist using a brush on raw materials.
When metal and the tool come together, the choices made about how fast the surface and the tool moves affect the final product's quality and how well the machining process works.
The following article will explore the surface speed vs cutting feed rate in detail. So, let’s dive in!

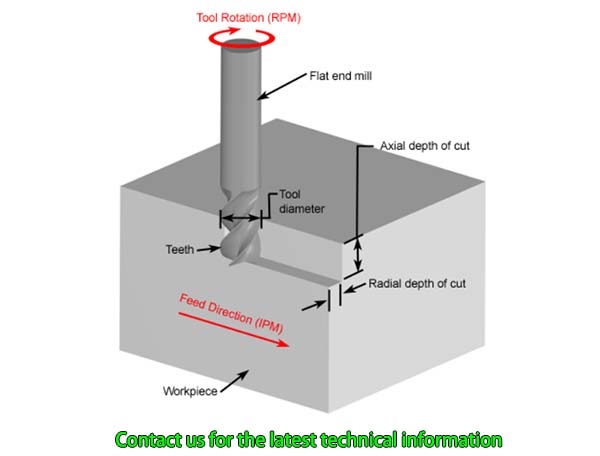

Surface speed, in the context of CNC (Computer Numerical Control) machining, refers to the speed at which a point on the surface of the material being machined moves past the cutting tool. It is usually measured in feet per minute (ft/min) or meters per minute (m/min), depending on the measurement system.
Controlling surface speed is part of the overall strategy to optimize machining efficiency and maintain the integrity of the tools and workpiece. It involves adjusting the spindle speed of the CNC machine, which determines how fast the cutting tool rotates, and the feed rate, which governs how quickly the tool moves along the workpiece.
CNC surface speed is a critical factor in CNC machining for several reasons:
The surface speed directly affects the heat generated at the cutting tool's point of contact with the workpiece. Excessive heat can lead to accelerated tool wear and, in some cases, compromise the integrity of the machined material. Controlling surface speed helps manage heat generation, preserving the tool's lifespan and maintaining machining accuracy.
Different materials have specific recommended surface speeds for optimal machining results. Choosing the right surface speed for a particular material ensures efficient material removal without causing damage or creating undesirable surface finishes. Machinists must consider material properties and characteristics to determine the appropriate surface speed.
Surface speed influences cutting forces and the formation of chips during the machining process. By adjusting surface speed, machinists can control the forces applied to the cutting tool and workpiece, reducing the risk of tool breakage and achieving better chip evacuation. Proper chip formation contributes to smoother machining operations.
The surface speed directly impacts the machined part's final surface finish. Adjusting the surface speed allows machinists to achieve the desired surface texture, whether a smooth finish for aesthetic purposes or a specific roughness for functional requirements. Fine-tuning the surface speed helps meet quality standards and specifications.
Balancing surface speed with other machining parameters, such as feed rate and depth of cut, contributes to overall machining efficiency. Finding the right combination of these factors maximizes material removal rates while maintaining the integrity of the tool and workpiece. This optimization is crucial for achieving cost-effective and timely machining processes.

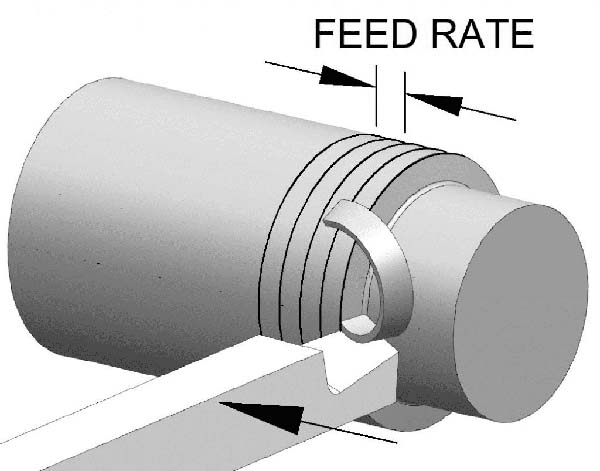

Cutting feed rate in CNC (Computer Numerical Control) machining refers to the rate at which the cutting tool moves through the workpiece material during the machining process. It is typically measured in units like inches per minute (in/min) or millimeters per minute (mm/min), depending on the measurement system.
The cutting feed rate, spindle speed, and other factors like cut depth influence the machining operation's efficiency, precision, and quality.
The cutting feed rate is a critical factor in CNC machining for several reasons:
The cutting feed rate influences the heat generated during machining. Higher feed rates can generate more heat, which, if not properly managed, can adversely affect the tool, workpiece, and overall machining process. Controlling the feed rate helps manage heat levels to prevent thermal damage to the tool and workpiece.
The feed rate, in combination with other factors like spindle speed and depth of cut, determines the material removal rate. Optimizing the feed rate is crucial for achieving the desired material removal rate without compromising the machined part's quality.
Cutting feed rate has a significant impact on the surface finish of the machined part. Machinists adjust the feed rate to achieve the required surface quality. A proper balance between feed rate, spindle speed, and other parameters is essential for obtaining a smooth and accurate surface finish.
The feed rate affects the size and shape of the chips produced during machining. Controlling the feed rate helps ensure proper chip formation and evacuation. This is essential for preventing chip recutting, which can negatively impact tool life and surface finish.
Optimizing the cutting feed rate is key to achieving overall machining efficiency. Balancing the feed rate with other parameters, such as spindle speed and depth of cut, helps maximize material removal rates, reducing machining time and improving productivity.
The feed rate and the cut depth determine the amount of the cutting tool engaged with the material. Proper tool engagement is critical for efficient machining, preventing tool deflection, and ensuring accurate and precise cuts.
Surface speed and cutting feed rate are two distinct parameters in machining, each playing a crucial role in the CNC (Computer Numerical Control) machining process. Here are the key differences between surface speed and cutting feed rate:
|
Surface Speed |
Cutting Feed rate |
|
refers to the speed at which a point on the surface of the material being machined moves past the cutting tool. Surface speed is usually measured in feet per minute (ft/min) or meters per minute (m/min). |
It is the rate at which the cutting tool moves through the workpiece material during machining. Cutting feed rate is typically measured in units like inches per minute (in/min) or millimeters per minute (mm/min). |
|
It is associated with the rotational speed of the cutting tool. |
It involves the linear movement of the cutting tool through the material perpendicular to the rotational axis. |
|
Typically measured in linear units, such as feet or meters per minute. |
Measured in linear units per minute, such as inches per minute or millimeters per minute. |
|
Influences tool wear, heat generation, and the quality of the machined surface. Machinists adjust the surface speed based on the machined material and the cutting tool type. |
Affects tool life, material removal rate, and the efficiency of the machining process. Adjusting the cutting feed rate is crucial for optimizing the balance between cutting forces and material removal. |
|
Surface speed considers the movement of the material past a stationary cutting tool. |
The cutting feed rate considers the motion of the cutting tool relative to the workpiece. |
Choosing the optimum cutting speed in CNC machining is a critical decision that directly impacts the machined part's efficiency, tool life, and quality. Here are key considerations for determining the optimum cutting speed:
Different materials have distinct properties that influence their machinability. Harder materials generally require lower cutting speeds, while softer materials can withstand higher speeds. Refer to material-specific data or machining handbooks to identify recommended cutting speeds for machining material.
The cutting tool type and coating significantly determine the appropriate cutting speed. High-speed steel (HSS) tools have different speed capabilities than carbide tools. Consider the tool manufacturer's recommendations for maximum speeds and feeds.
Harder workpieces often require lower cutting speeds to prevent excessive tool wear and heat generation. Consider the Rockwell or Brinell hardness of the material and adjust the cutting speed accordingly.
Larger cutting tools often have different speed recommendations than smaller ones. Consult the tool manufacturer's guidelines for the specific tool diameter being used.
The machining operation (e.g., turning, milling, drilling) influences the choice of cutting speed. Each operation may have an optimal range, and the machinist should consider these variations.
Balancing the material removal rate with the cutting speed is essential for efficient machining. Higher cutting speeds may result in faster material removal, but they should be within the tool and material limits to avoid excessive wear.
Consider the desired tool life for the cutting operation. Higher cutting speeds may lead to shorter tool life, so the chosen speed should align with the acceptable tool life for the given application.
The rigidity of the CNC machine and its power capabilities affect the cutting speed selection. Machines with higher rigidity and power can handle higher cutting speeds, contributing to improved machining efficiency.
The use of appropriate coolant and lubrication can impact the cutting speed. Effective cooling helps manage heat generated during machining, allowing for higher cutting speeds without compromising tool life or part quality.
Machinists often rely on their experience and empirical testing to fine-tune cutting speeds. Initial cutting speed selections can be based on guidelines, but adjustments may be necessary based on real-world performance.
Chip thinning is inherent in machining processes, particularly in milling operations. It involves reducing the chip thickness due to the inclination of the cutting tool. This thinning occurs as the tool engages with the workpiece at an angle, resulting in a chip width thinner than the nominal feed per tooth.
In determining the optimum feed rate, chip thinning plays a significant role. The feed rate needs to be adjusted to compensate for the reduction in chip thickness caused by chip thinning. Maintaining an effective material removal rate is essential, and increasing the feed rate is a common strategy to achieve this balance.
The relationship between the optimum feed rate and chip thinning is intricate. The feed rate directly influences the material removal rate (MRR), and adjustments must be made to optimize this parameter. However, caution is required when increasing the feed rate, which can impact tool life and heat generation. Striking the right balance is crucial to avoid excessive wear on the cutting tool and thermal damage to the workpiece.
Optimizing the feed rate involves chip thinning effects, material properties, tool capabilities, and machine parameters. Machinists often employ practical experience and empirical testing to fine-tune the feed rate for a specific machining operation. This approach ensures that the machining process is efficient and precise, delivering the desired results while mitigating the challenges of chip thinning.
To sum it up, exploring CNC machining, looking at surface speed, cutting feed rate, and chip thinning—shows how precise and artistic modern manufacturing can be. Surface speed is super important, affecting how tools work, what materials can be used, and how well the process goes.
Figuring out the best cutting feed rates is also crucial, needing a careful balance to remove material well without wearing out the tools too quickly. It's like a mix of science and craft, where machinists use computer controls like artists, adjusting things to create precise components.
As technology improves, CNC machining keeps evolving, providing a platform for innovation and creating finely crafted pieces that showcase the blend of engineering and art in today's world.
Yes, surface speed and cutting speed are often used interchangeably in machining. They both refer to the speed at which a point on the material's surface moves past the cutting tool.
The relationship between cutting speed and feed rate is critical for efficient machining. Cutting speed is the tool's engagement speed with the workpiece, while feed rate is the tool's linear advance through the material. The material removal rate is the product of these two factors, emphasizing the importance of a balanced and optimized combination for effective machining and desired surface finish.
The relationship between feed rate and surface roughness is significant in machining. Higher feed rates generally result in a rougher surface finish, as they produce larger chips during cutting. Achieving the desired surface quality requires a careful balance between feed rate and other cutting parameters, considering factors such as tool type, material, and specific machining requirements.
