Types of CNC Machine: Their Categories Explained

Feb 23, 2024

Introduction to CNC Machines

CNC machines stand as the vanguards of precision and automation in the realm of modern manufacturing. We can control their tools with computerized functions. These machines are orchestrating a seamless marriage of technology and manufacturing powers. A CNC machine is a programmable device. It is capable of autonomously executing intricate machining operations with unparalleled accuracy.

Their machining process follows a subtractive manufacturing approach. Here, we can meticulously remove the layers of material from a stock piece. This thing results in the creation of highly customized and intricately designed parts. Their significance lies in the ability to translate designs into physical reality. They can transform raw materials into finely crafted components.

These machines have become the backbone of manufacturing operations. They offer various benefits. We can use these machines to increase production, reduce waste, and eliminate human error. CNC machines have transcended traditional manufacturing constraints. We can get the best quality work from precision to shaping intricate patterns.



Types of CNC machine

1. Pick and Place Machine

Pick-and-place machines have revolutionized the electronics manufacturing process. These machines have multiple nozzles to lift and position electronic components accurately. We can use these machines in the production of devices. They are used to produce cell phones, computers and tablets.

2. 3D Printer

3D printers work on additive manufacturing principles. They can create objects layer by layer based on Computer-Aided Design (CAD) and Computer-Aided Manufacturing (CAM) processes. They have wide applications in prototyping. These machines contribute to rapid product development.

3. Router CNC Machine

CNC routers are versatile tools. They can shape various materials such as wood, steel, foam, aluminum, and plastic. They have a resemblance to CNC mills. They are typically used for softer materials. These machines have various applications for waste reduction and enhanced productivity.

4. Drilling CNC Machine

Drilling CNC machines utilize rotating drill bits. They can create cylindrical holes in workpieces. Various drill bit types are available in the market. We can use them for specific applications. They are essential for precision hole drilling in manufacturing.

5. Lathe CNC Machine

Lathe machines employ turning processes to shape materials. For this reason, they use the single-point cutting tools. Turret lathes, engine lathes, and special-purpose lathes cater to diverse turning applications.

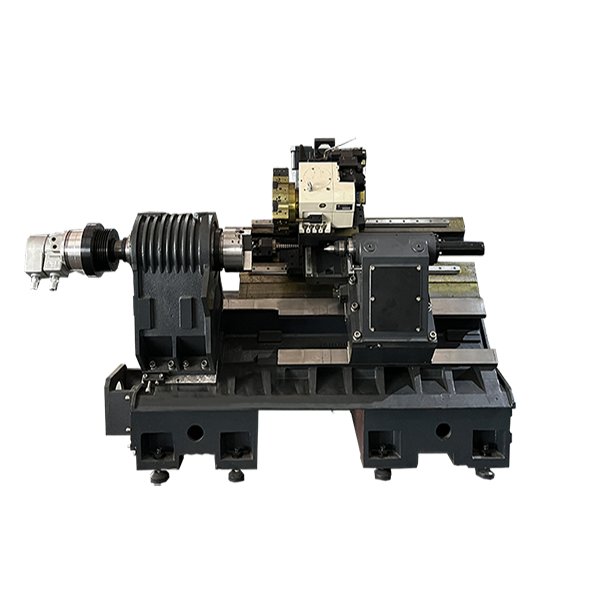

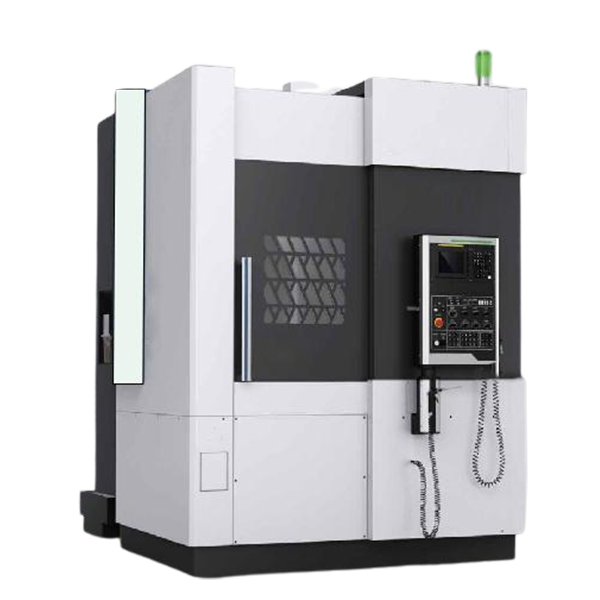

Horizontal Lathe Machine Vertical CNC Lathe Machine
Horizontal Lathe Machine Vertical CNC Lathe Machine

6. 5-Axis CNC Machine

They can access five out of six-part sides in a single operation. These CNC machines offer enhanced flexibility. They are particularly valuable in sculpting applications. 5-Axis CNC Machines can reduce the need for resetting workpieces during production.

7. Milling CNC Machine

Milling CNC machines utilize rotating multi-point cutting tools to shape workpieces. They are available in horizontal and vertical orientations. They vary from basic three-axis movements to advanced models with additional axes.

8. Plasma Cutting CNC Machine

These CNC machines are ideal for cutting electrically conductive materials. We can easily cut brass, aluminum, steel, and stainless steel by using this machine. Plasma-cutting CNC machines use a high-powered torch that generates plasma through an electric arc.

9. Laser Cutting CNC Machine

We can categorize these machines into gas. Liquid and solid-state lasers. They employ CO2 and solid-state lasers for cutting materials. They are suitable for non-metals and organic materials. Solid-state lasers are employed for materials that must not oxidize during cutting.

10. Electric Discharge CNC Machine

They are also known as spark CNC machines. These electric discharge CNC machines use controlled sparks to shape materials. They employ transient electrical discharge. These machines offer precision in reshaping workpieces.

11. Grinding CNC Machine

We can use these precision tools for cutting metal away from workpieces. They have applications in producing cylindrical components. We can easily make camshafts and ball bearings.

12. CNC Machine with Automatic Tool Changes

They have rapid tool-changing capabilities. These CNC machines enhance productivity by efficiently managing and replacing tools during machining processes.



Types of CNC Machines by Number of Coordinate Axes

CNC machines, based on the number of coordinate axes they operate on, come in various types that cater to different machining needs. The number of axes determines the machine's capability to move and control its cutting tools in multiple directions. Here's a brief overview of common types of CNC machines classified by the number of coordinate axes:

1. 2-Axis CNC Machines:

These machines operate in two directions – typically X and Y. They are suitable for simpler tasks that involve flat surfaces and linear cuts.

2. 3-Axis CNC Machines:

Widely used in various industries, 3-axis CNC machines add the Z-axis to the X and Y axes, allowing for more complex cuts and three-dimensional machining.

3. 4-Axis CNC Machines:

Introducing a rotational axis, usually around the X, Y, or Z axis, 4-axis CNC machines can perform more intricate tasks, such as milling and cutting at different angles.

4. 5-Axis CNC Machines:

With two additional rotational axes, 5-axis CNC /five-axis-machining-center-cnc-machining-ys650-5axmachines provide unparalleled flexibility. This allows for complex cuts, bevels, and contours without repositioning the workpiece.

5. 6-Axis CNC Machines:

Commonly used in advanced applications such as aerospace, 6-axis CNC machines add another rotational axis to the 5-axis setup, offering even greater maneuverability and precision.



Types of CNC Machines According to the Control System

We can categorize the CNC machines based on their control systems. The control systems are the critical components of the CNC machines. They dictate the interpretation and execution of the different commands of the machines. There are various types of the CNC machines based on their control systems.

1. Open-Loop CNC Machines:

In an open-loop system, the CNC machine operates without feedback. It executes commands based on the programmed instructions without actively checking or adjusting the actual position of the tool. While simpler, open-loop systems may lack the precision of closed-loop systems.

2. Closed-Loop CNC Machines:

Closed-loop systems incorporate feedback mechanisms to constantly monitor and adjust the machine's performance. This enhances precision and accuracy by accounting for any deviations from the programmed path. Common feedback devices include encoders and sensors.

3. Computer Numerical Control (CNC) Milling Machines:

These are the versatile tools. They use rotary cutters to remove material from a work piece. We can equip these machines with various types of controls. They have open-loop and closed-loop systems based on their precision.

4. Computer Numerical Control (CNC) Lathe Machines:

CNC lathe machines are designed for shaping materials through a turning process. They can have open-loop or closed-loop control systems, enabling precise machining of cylindrical components.

5. Computer Numerical Control (CNC) Router Machines:

CNC routers are specialized for cutting, shaping, and engraving materials like wood, plastic, and metal. They utilize different control systems to guide the cutting tools along predefined paths.

6. Industrial PC-Based CNC Machines:

Some CNC machines use industrial PCs as their control systems. These systems offer advanced features, flexibility, and compatibility with various software applications, making them suitable for complex machining tasks.

7. Motion Control CNC Machines:

Motion control systems focus on managing the movement of the machine components. These systems ensure accurate positioning and trajectory control, enhancing the overall performance of the CNC machine.
