Computer Numerical Control (CNC) technology is a cornerstone of modern manufacturing. This enables the automation of machining processes. This technology uses computer-programmed sequences to control machine tools that shape raw material into a desired final product. CNC has revolutionized the manufacturing industry, delivering high precision, repeatability, and scalability.
Two primary applications of CNC technology are CNC turning and milling. These processes form the backbone of many production lines. Some examples include manufacturing from automobile parts to aerospace components. This is because they are very versatile and accurate, and their ability to handle complex geometries. Understanding the differences between these two methods is crucial for selecting the most appropriate manufacturing process for any project.
Definition and Basics of CNC Turning

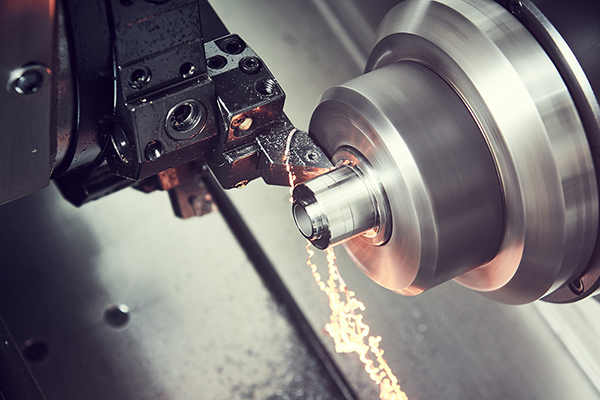

CNC turning is a method of machining in which a non-rotary cutting tool follows a winding path, performing more or less linear movements, while the workpiece spins. When the device is not cutting, its axial direction is reversed.
The workpiece, securely held by a chuck, spins while the cutting tool moves linearly, shaving off material to achieve the desired shape. CNC turning is particularly useful for manufacturing cylindrical or conical parts, as well as for generating complex geometric shapes and contours on the workpiece's surface.
This method is well-suited for parts that require rotation for axial cuts, and it excels at producing items that have symmetry around a central axis, such as gears and shafts.
Core Components of a CNC Turning Machine
A CNC turning machine, or lathe, is a piece of high-precision machinery that consists of several key parts:
1. Chuck: The chuck is a clamp that holds the workpiece in place as it rotates. There are various types of chucks, including three-jaw universal, four-jaw independent, and collet. The type of chuck used depends on the specific requirements of the workpiece.
2. Turret: The turret, or tool turret, is the part of the machine that holds the cutting tool. It can rotate to bring different tools into contact with the workpiece. Modern CNC turning machines often feature an automatic turret change system that can switch between different tools in a matter of seconds.
3. CNC Controller: The CNC controller is the "brain" of the machine. It interprets a series of instructions known as G-code, which tells the machine exactly how to move to achieve the desired cut. The controller adjusts the position of the turret and the speed of the chuck's rotation to control the cutting process.
4. Tailstock: The tailstock supports the end of the workpiece when necessary. It is particularly useful when machining long pieces to prevent them from flexing under the force of the cutting tool.
5. Guide Rails and Carriage: The guide rails guide the carriage, which carries the cutting tool, allowing it to move parallel and perpendicular to the workpiece. This movement, combined with the rotation of the workpiece, allows for precise cutting along the length and around the circumference of the workpiece.
6. Spindle: The spindle is the part of the machine that rotates the workpiece. Its speed can be adjusted according to the requirements of the cut. High-speed spindles allow for faster machining and a better surface finish.
These components work together to ensure that CNC turning can produce parts with high accuracy and excellent repeatability. The automated nature of the process also allows for a high degree of consistency, making it an excellent choice for mass production of parts.
Typical Materials and Products Processed Through CNC Turning
CNC turning can process a wide range of materials, including metal, plastic, and wood. It is commonly used to produce shafts, rods, bushings, and other cylindrical parts.
Definition and Basics of CNC Milling

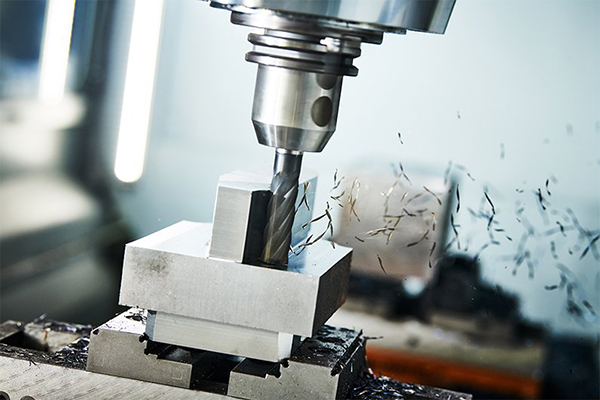

CNC milling is a machining process where a rotary cutting tool removes material from a workpiece while it is fixed to a movable table. The table can move along multiple axes (usually at least two, X and Y, but often three with the addition of a Z axis), allowing the cutting tool to approach the workpiece from many different angles and directions. This multi-axis capability allows for the creation of complex shapes and precise, high-dimensional parts.
Unlike turning, where the workpiece rotates while the cutting tool remains stationary, in milling the workpiece remains stationary while the cutting tool rotates. This process is often used when creating parts with complex shapes, slots, and holes, or when a flat surface is required.
Like the CNC turning machines, a CNC milling machine comprises several key parts:
1. Spindle: The spindle holds the cutting tool and provides the rotational movement required for cutting. It can move up and down (Z-axis) and sometimes can tilt to enable angled cuts.
2. Table: The table secures the workpiece and can move in several directions (typically X and Y axes) to bring different parts of the workpiece into contact with the cutting tool.
3. CNC Controller: Similar to a CNC turning machine, the controller in a CNC milling machine interprets G-code instructions to accurately move the spindle and table to create the desired cuts.
4. Cutting Tool: The cutting tool, or mill, is the part of the machine that actually removes material from the workpiece. There are many different types of mills, each designed for specific types of cuts.
5. Tool Changer: Many CNC milling machines feature an automatic tool changer, which can switch between different mills quickly and accurately. This allows the machine to perform different types of cuts without needing to be manually retooled.
CNC milling is incredibly versatile and can handle a wide variety of materials. These include metals (such as aluminum, brass, steel, and titanium), plastics (such as ABS, polycarbonate, and PTFE), and woods.
Thanks to its multi-axis capabilities, CNC milling is often used when the part design is complex or requires high precision. This process is ideal for creating parts such as gears, brackets, enclosures, molds, and more.
The ability to mill complex shapes and high-precision parts, combined with its wide material compatibility, makes CNC milling a popular choice for many industries. A few examples of these industries include aerospace, automotive, electronics, and medical device manufacturing.
Both CNC turning and milling machines operate under the control of a Computer Numerical Control (CNC) system. This system reads and interprets a set of instructions known as G-code, which dictates the movements of the machine and the actions of the cutting tool. This ensures high precision and repeatability, as the machine will follow the same programmed instructions each time.
In both CNC turning and milling, the manufacturing process involves a cutting tool that removes material from a workpiece. This subtractive process contrasts with additive manufacturing methods like 3D printing, where material is added layer by layer to form a product. The advantage of subtractive manufacturing is that it can produce parts with superior material properties and surface finishes.
Both CNC turning and milling can work with a wide range of materials. Commonly used materials include metals such as aluminum, brass, and steel; plastics like ABS and polycarbonate; and even wood. The choice of material often depends on the specific application and performance requirements of the finished part.
Both CNC turning and milling machines can operate automatically once the program is set. This not only improves production efficiency but also minimizes human errors, ensuring consistent quality across the production run.
While they each have their own strengths and ideal applications, both CNC turning and milling are capable of producing a wide range of shapes and designs. They can produce everything from simple geometric shapes to complex, high-precision components.
Both processes require tooling (cutters, drills, etc.) that are designed to cut away material from the workpiece. The type of tooling used can vary depending on the specifics of the job, including the material being machined and the desired final shape of the part.
In CNC turning, the workpiece rotates while the cutting tool moves in a straight line. This creates a cylindrical shape that's defined by the tool's path.
In CNC milling, the workpiece is stationary (or moves in a limited manner), while the cutting tool moves across multiple axes. This allows for more complex geometries and non-cylindrical shapes.
Turning machines or lathes are designed differently from milling machines. Lathes rotate the workpiece, while milling machines use rotary cutting tools to remove material.
CNC turning is typically used for creating symmetrical or round shapes like tubes, shafts, and discs. On the other hand, CNC milling is used when complex shapes, slots, holes, or flat surfaces are needed. It's also the preferred method when the part requires a high degree of precision or intricate details.
Both CNC turning and milling can handle a wide range of materials. However, some materials may be better suited to one process over the other depending on their properties. For example, brittle materials may be more compatible with the milling process.
Both processes offer high precision, but certain designs may be better achieved with one over the other. Complex, non-cylindrical, or precision cutouts are more easily accomplished with milling.
Both turning and milling are scalable for high-volume production. However, the complexity of the part, setup time, and operation speed can influence which process is more cost-effective for large quantities.
Factors such as material cost, machine cost, tooling cost, and operational cost (including labor and maintenance) can all influence the decision between turning and milling.
Recent innovations in CNC turning include live tooling capabilities, where additional axes and tools are used for more complex operations. This allows turning centers to perform milling operations, improving efficiency and reducing setup times.
In CNC milling, advancements include high-speed machining and the use of software that can simulate and optimize the machining process for improved accuracy and reduced waste.
These technological advancements are increasing the capabilities, efficiency, and precision of both CNC turning and milling. As a result, manufacturers can produce more complex parts faster and at a lower cost, which drives innovation in many industries.
While both CNC turning and milling are integral to modern manufacturing, they each have their own strengths. Turning is typically used for cylindrical parts, while milling is used for more complex geometries. The choice between the two often depends on the specifics of the project, including the design of the part, the type of material, and production volume.
Choosing the right CNC process can have significant impacts on the efficiency, cost, and quality of production. Therefore, understanding the capabilities and limitations of both CNC turning and milling is crucial for manufacturers and designers alike.
Safety steps include:
-wearing the right protective gear
-following machine use rules
-keeping machines in good shape
Yes, many products require both turning and milling operations for their production. Some machines, known as mill-turn centers, even combine these capabilities in one unit.
Operators typically require a mix of formal education, on-the-job training, and certification. Knowledge in computer programming, machine operations, and safety protocols is essential.
Regular maintenance includes cleaning, lubrication, inspection, and replacement of worn-out parts. It's also important to schedule regular professional servicing to ensure optimal machine performance.
Common problems include worn or broken tools, bad surface finish, wrong dimensions, and machine errors. Often, solutions are found in changing cutting settings, taking care of tools, correct programming, and regular machine service.
Every problem has a cause. Fixing issues often means finding and dealing with that cause in a systematic way.
This guide helps you understand the difference between CNC turning and milling, and their roles in manufacturing today. Each method has strengths, and the right choice depends on design needs, material, and how many pieces you need. As technology improves, so do the possibilities of both methods, leading to more complex and efficient ways to produce things.
