Ball bearings, a universal component in mechanical systems, serve a fundamental purpose: they reduce friction between moving parts, enabling smoother operation and increased efficiency. These small but vital components have a rich history, evolving from rudimentary designs to precision-engineered solutions that drive modern machinery.
Initially developed in the 17th century, ball bearings have undergone significant advancements. From basic wooden designs to intricately crafted steel and ceramic variants, their evolution mirrors the progress of industrialization and technological innovation.
In CNC machining centers, ball bearings are crucial for ensuring smooth and precise movement of components. Reducing friction and wear contributes to these high-precision machines' overall performance and accuracy. The reliability of ball bearings directly affects the quality of machining operations, whether in spindle assemblies, linear motion systems, or tool changers.
Understanding the importance of ball bearings in CNC machining centers is essential for appreciating their role in enhancing machine performance and precision. As we delve deeper into comparing ceramic and steel ball bearings, their distinct characteristics and advantages will become apparent in driving efficiency and productivity in machining operations.
In CNC machining, precision is crucial. Consistently producing parts with tight tolerances ensures quality and functionality. CNC milling machines provide unparalleled precision with computer-controlled movements and advanced cutting strategies.
Moreover, reliability is critical in manufacturing environments where downtime can result in significant losses. CNC machining centers are engineered for reliability, with robust construction and advanced automation features that minimize the risk of errors and malfunctions.
Ball bearings are critical components in CNC machining centers, serving essential functions that significantly impact the machine's performance, precision, and longevity. These functions include reducing friction, supporting loads, enabling precise movement, and contributing to the overall efficiency of the machining process.
One of the main functions of ball bearings in CNC machining centers is to minimize friction between moving components. CNC machines consist of various components, such as spindles, lead screws, and linear guides that require smooth, low-friction movement to operate efficiently. Ball bearings facilitate this by providing a rolling motion between the machine's stationary and moving parts, which is much more efficient than sliding motion. This reduction in friction minimizes energy loss, enhances machine efficiency, and reduces wear on components, extending the machine's lifespan.
Ball bearings in CNC machining centers support both radial and axial loads. Radial loads are perpendicular to the shaft, whereas axial loads are parallel. Ball bearings are used in CNC machines for managing these loads in various assemblies, such as spindle bearings and lead screw supports. Proper load support is essential to maintain the alignment and stability of moving parts, ensuring accurate and consistent machining operations. Steel ball bearings, known for their high load capacity, are often preferred in heavy-duty applications involving substantial forces.
Precision is paramount in CNC machining centers, and ball bearings are integral to achieving this precision. In linear motion systems, ball bearings facilitate the smooth and accurate movement of components such as slides and carriages. They help maintain precise linear positioning, which is crucial for accurately machining parts to tight tolerances. In rotary motion systems, such as spindles, ball bearings ensure smooth and stable rotation, reducing vibrations and enhancing the quality of the machined surface.
The spindle is an essential component in CNC machining centers and is responsible for holding and rotating the cutting tool. Ball bearings are used extensively in spindle assemblies to support high-speed rotation and maintain precision. With their lower friction coefficients and superior heat resistance, ceramic ball bearings are often used in high-speed spindle applications. These bearings help achieve higher rotational speeds, reduce heat generation, and maintain tight tolerances, resulting in better surface finish and increased machining accuracy.
Ball bearings enhance the overall efficiency and productivity of CNC machining centers by minimizing friction, supporting loads, and enabling precise movement. Smooth and reliable motion reduces machine downtime and maintenance requirements, allowing for longer continuous operation and higher throughput. The enhanced precision afforded by ball bearings ensures consistent production quality, reducing the need for rework and improving overall manufacturing efficiency.
Thermal stability is another important aspect of CNC machining centers, as temperature fluctuations affect machining accuracy. Ceramic ball bearings, in particular, offer excellent thermal stability, with minimal expansion or contraction under temperature changes. This characteristic helps maintain tight clearances and consistent performance even in high-temperature environments, which is crucial for maintaining precision during prolonged machining operations.
Vibration and noise can negatively impact the quality of machined parts and the working environment. Ball bearings help reduce these issues by providing smooth and stable movement. This reduction in vibration and noise improves the quality of the finished product and enhances operator comfort and safety.
Ceramic ball bearings represent a significant advancement in bearing technology, offering a range of benefits over traditional steel ball bearings. These bearings are engineered using ceramic materials such as silicon nitride (Si3N4) or zirconia (ZrO2), which exhibit exceptional hardness, low density, and high-temperature resistance.
Ceramic ball bearings are predominantly made from refined ceramic materials, with the most commonly used silicon nitride and zirconia. Silicon nitride is prized for its exceptional hardness, low density, and excellent thermal stability, making it ideal for high-speed and high-temperature applications. On the other hand, zirconia offers high strength and toughness, making it suitable for applications involving mechanical shock and impact.
The construction of ceramic ball bearings involves several specialized steps:
Ceramic powders are prepared by combining raw materials such as silicon, nitrogen, and zirconium oxide and grinding them to a fine consistency. This ensures uniformity and purity in the final product.
The ceramic powder is then shaped into ball blanks using isostatic pressing or injection molding techniques. This step determines the initial size and shape of the bearing balls.
The shaped blanks are sintered at high temperatures to achieve the desired hardness and density. During sintering, the ceramic particles are heated just below their melting point, causing them to fuse and form a solid, dense structure.
Like steel ball bearings, ceramic balls undergo precision grinding to achieve the required size and spherical shape. This step ensures tight tolerances and uniformity in the final product.
The ceramic balls are then polished to a high surface finish, further reducing friction and ensuring smooth operation during use.
Finally, the ceramic balls are assembled into races made of either steel or ceramic, depending on the application requirements. The assembly process ensures proper alignment and spacing of the bearing balls within the bearing assembly.
Ceramic ball bearings exhibit several vital characteristics and properties that make them desirable for various applications:
Ceramic materials such as silicon nitride and zirconia are rigid, offering superior resistance to wear and deformation compared to steel.
Ceramic bearings are lighter than steel bearings due to their lower density, reducing the overall weight of the bearing assembly and contributing to improved efficiency in high-speed applications.
Ceramic materials have excellent thermal stability, allowing ceramic ball bearings to withstand higher operating temperatures without substantial degradation or loss of performance.
Ceramic ball bearings typically exhibit lower friction coefficients than steel ball bearings. This reduces energy loss and smoother operation, particularly in high-speed applications where friction can significantly impact performance.
Ceramic ball bearings have several advantages over traditional steel ball bearings, including:
The superior hardness and low friction of ceramic materials result in improved performance, reliability, and longevity in demanding applications.
Ceramic ball bearings have lower wear rates than steel bearings, leading to reduced maintenance requirements and a longer service life.
The combination of low friction, high hardness, and temperature resistance makes ceramic ball bearings ideal for high-speed applications with critical precision and durability.
Ceramic materials are naturally resistant to corrosion and chemical attack, making ceramic ball bearings suitable for use in harsh environments where they may be exposed to moisture, chemicals, or abrasive contaminants Day.
Steel ball bearings are the workhorses of mechanical systems, providing reliable and efficient motion transmission in a wide range of applications. These bearings are manufactured from high-grade steel alloys, such as stainless steel and chrome steel, and are valued for their durability, load-bearing capacity, and cost-effectiveness.
Steel ball bearings are predominantly made from high-quality steel alloys, with stainless steel and chrome steel being the most commonly used. Stainless steel ball bearings are preferred for their corrosion resistance, making them suitable for use in humid or chemically aggressive environments. On the other hand, chrome steel ball bearings are renowned for their hardness and high load capacity, making them ideal for heavy-duty applications where strength and durability are paramount.
The construction of steel ball bearings involves several precise steps:
High-quality steel wire is drawn through a series of passes to achieve the desired diameter for the bearing balls. This initial step ensures uniformity and consistency in the size and shape of the balls.
The steel wire is cut into small pieces and formed into rough ball shapes through cold heading. This involves compressing the wire pieces in a die to create the initial ball shape.
The rough ball shapes undergo heat treatment to harden the steel, improving its durability and performance under load. Heat treatment involves heating the balls to a precise temperature and then rapidly cooling them to achieve the desired hardness and microstructure.
The hardened balls are ground to achieve the precise size and spherical shape required for high-quality ball bearings. This grinding process ensures tight tolerances and smooth surface finishes, minimizing friction during operation.
In the final polishing step, the balls undergo lapping to achieve an ultra-smooth surface finish, further reducing friction and ensuring smooth operation during use.

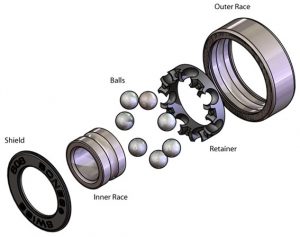

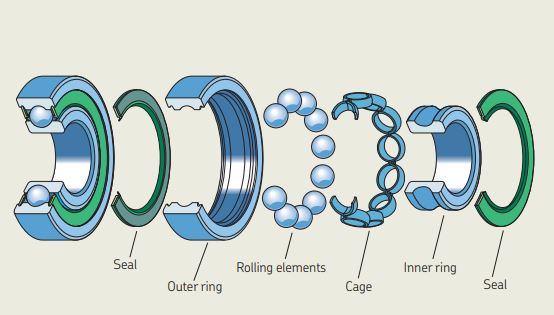

Finally, the finished balls are assembled into races (the inner and outer rings of the bearing) along with the cage, which keeps the balls evenly spaced. The assembly process ensures proper alignment and spacing of the bearing components for optimal performance.
Steel ball bearings exhibit several vital characteristics and properties that make them well-suited for various applications:
Steel alloys used in ball bearings are well known for their exceptional hardness, providing excellent resistance to wear and deformation even under heavy loads and harsh operating conditions.
Steel ball bearings have a high load-bearing capacity, allowing them to support heavy loads and withstand significant forces without deformation or failure.
Stainless steel ball bearings offer excellent resistance to corrosion, making them appropriate for applications where exposure to moisture, chemicals, or corrosive environments is a concern.
Steel ball bearings can be used in various applications, from industrial machinery and automotive components to household appliances and consumer electronics.
Steel ball bearings offer several advantages over other types of bearings, including:
Steel ball bearings are cost-effective compared to ceramic or other specialty bearings, making them popular for various applications.
The high load-bearing capability of steel ball bearings allows them to support heavy loads and withstand significant forces without deforming or failing.
Steel ball bearings are available in various steel alloys, each offering specific properties and advantages, allowing manufacturers to choose the most suitable material for their application requirements.
Steel ball bearings have a long history of proven reliability and performance in various industries and applications. Their durability and robustness make them a trusted choice for critical mechanical systems.

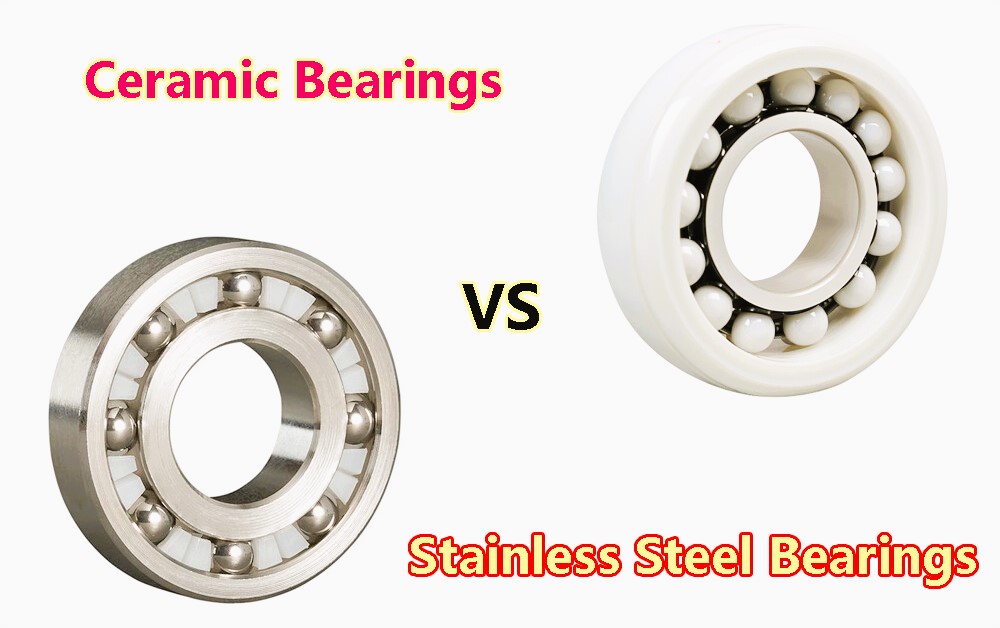

Regarding performance in CNC machining centers, the choice between ceramic and steel ball bearings can significantly impact machine efficiency, precision, and reliability.
Ceramic ball bearings offer several performance advantages, including:
Ceramic materials exhibit lower friction coefficients than steel, resulting in smoother operation and reduced energy consumption.
Ceramic bearings can withstand higher operating temperatures without significant degradation, making them ideal for high-speed and high-temperature applications.
The exceptional hardness of ceramic materials results in lower wear rates, leading to longer bearing life and reduced maintenance requirements.
Steel ball bearings also offer reliable performance characteristics, such as:
Steel bearings have a long history of proven reliability and performance in various industries and applications.
Steel ball bearings are ideal for heavy-duty applications due to their high load-bearing capacity, providing sturdy support.
Steel ball bearings are cost-effective compared to ceramic bearings, making them popular for various applications.
|
Characteristic |
Ceramic Ball Bearings |
Steel Ball Bearings |
|
Friction Coefficient |
Lower friction coefficients (typically 0.001 to 0.002) |
Higher friction coefficients (typically 0.0015 to 0.003) |
|
Heat Resistance |
Superior heat resistance, can withstand temperatures up to 800°C |
Good heat resistance, can withstand temperatures up to 300°C |
|
Wear Resistance |
Excellent wear resistance, lower wear rate |
Good wear resistance, higher wear rate compared to ceramics |
|
Weight |
Lighter (up to 40% lighter than steel bearings) |
Heavier due to higher density of steel |
|
Maximum Speed |
Higher speeds due to lower friction and thermal expansion |
High speeds achievable, but lower than ceramics |
|
Lubrication Requirements |
Lower lubrication requirements, can operate with minimal lubrication |
Higher lubrication requirements, frequent lubrication needed |
|
Initial Cost |
Higher initial cost |
Lower initial cost |
|
Total Cost of Ownership |
Lower total cost due to reduced maintenance and longer lifespan |
Potentially higher total cost due to more frequent maintenance |
|
Environmental Impact |
Lower impact due to longer lifespan and less frequent replacements |
Moderate impact, more frequent replacements and maintenance |
Looking ahead, future trends and innovations in ball bearings for CNC machining centers are poised to revolutionize machine performance and efficiency. One key trend is the continued development of advanced ceramic materials with enhanced properties such as increased hardness, improved thermal stability, and reduced friction coefficients. These innovations will enable ceramic ball bearings to withstand even higher temperatures and operating speeds, improving machine reliability and longevity.
Advancements in manufacturing methods, such as additive manufacturing and nanotechnology, are driving the production of more precise and intricate ball-bearing designs. This allows customized bearing solutions tailored to specific CNC machining applications, optimizing performance and reducing maintenance requirements.
Choosing between ceramic and steel ball bearings in CNC machining centers is a critical decision that directly impacts machine performance and productivity. While ceramic bearings offer lower friction, higher temperature resistance, and reduced wear, steel bearings provide proven reliability, high load capacity, and cost-effectiveness. Manufacturers must carefully consider their specific application requirements, operating conditions, and budget constraints when selecting the appropriate bearing type. By making an informed decision, manufacturers can optimize CNC machining processes, enhance efficiency, and achieve greater precision in their operations.
