Horizontal Machining, also known as milling, relies on rotary cutters to remove metal from a workpiece. Horizontal machining centers also allow for two-pallet changer integration to facilitate unattended operation and reduce part cycle times. Our horizontal milling machines are suitable for processing various complex parts.You could order an exchange worktable separately.
Max. X-axis Travel :
1300mmMax. Y-axis Travel :
800mmMax. Z-axis Travel :
1000mmMax Workpiece Length :
800mmMax Workpieces Width :
800mmMax Workpieces Weight :
1.4TApplication :
Auto PartsProcessing :

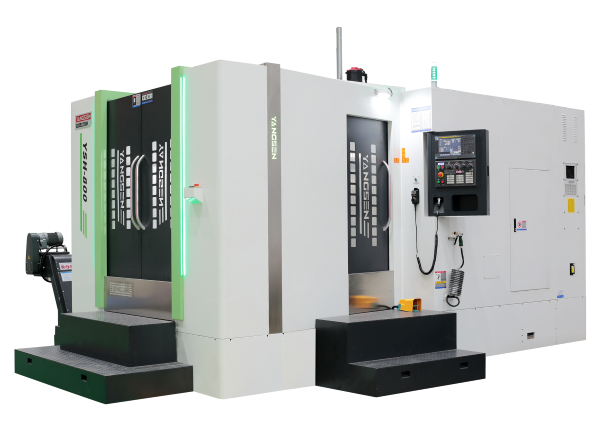

Surface Milling, Drilling Holes, TappingYSH-800 Horizontal Machining Structure Characteristics
This horizontal machining center installs a T design, worktable rotating structure form, ultra-wide guide guideway structure, the standard configuration of large torque, and a high-speed motor. You could order an exchange worktable separately. Our horizontal milling machines are suitable for processing various complex parts. It is the preferred equipment in the field of automobile engines and cavity processing in the 5G field.
 |
Machine Cutting Performance
|
Surface Milling |
Steel 45# |
Drilling Holes |
Steel 45# |
Tapping |
Steel 45# |
|
Cutting depth 7mm |
|
Cutter diameter Ø82 |
|
Tapping M36 |
|
|
Cutter |
Ø120mm*5T |
Cutter |
Ø82mm*2T |
Cutter |
M36*3P |
|
Spindle speed |
420rpm |
Spindle speed |
500rpm |
Spindle speed |
120rpm |
|
Feed |
F500 |
Feed |
F100 |
Feed |
F480 |
|
Width |
100mm |
Width |
82mm |
Width |
36mm |
YSH 800 Horizontal Machining Frame Machine Characteristics
 |
Machine Bed, Column Equilateral triangle structure of the column, multi-layer stiffeners are arranged to improve the stability of the machine bed. Positive T structure bed, X-axis stepped layout, enlarged line guideway span, rigid support. Adopt a high-strength Rexroth roller guide, high load bearing, and stable precision. |
 |
Spindle install 6 high-rigidity bearings; Outer diameter 190mm Taiwan original BBT50 spindle; Spindle air blow to prevent objects from entering the spindle; The spindle is equipped with ring spray to improve processing quality. The standard FANUC large-torque-wide-area motor ilP30/8000 is equipped with stronger heavy-cutting ability. |
 |
Optical Linear Scales Optional Heidenhain, Fagor Optical Linear Scales, accuracy ± 5um, to ensure machine tool positioning accuracy. |
 |
Double exchange table/ four-axis turntable Realize workpiece exchange and improve processing efficiency; The workpiece is placed outside for easy clamping; High rigidity alloy turbine, wear-resistant, high positioning accuracy; Heavy locking, reduces deformation, resistant to heavy cutting. |
 |
Tool magazine Using Taiwan imported frequency conversion tool magazine, tool change speed is fast and stable. |
YSH-800 Horizontal Machining Machine Parameters
| Model | YSH-800 | ||
| Subject | Specifications | Units | |
| Travel | X/Y/Z axis | mm | 1300/800/1000 |
| Spindle Nose to Worktable | mm | 150-950 | |
| Spindle Center to Column | mm | 150-1150 | |
| Three-Axis Guideway | Roller Linear Guideway | ||
| Worktable | Worktable Size (L*W) | mm | 800x800 |
| Maximum Table Load | t | 1.4 | |
| Table Screw | mm | ||
| T-Slot | mm | 7-18x125 | |
| Number of Pallet | pcs | ||
| Table Indexing | 1°/0.001° | ||
| Maximum Turning Diameter | mm | φ1500 | |
| Spindle | Spindle Taper | type | BBT-50 |
| Spindle Speed | rpm | 8000 | |
| Spindle Drive Type | Belt | ||
| Feedrate | Rapid Traverse(X/Y/Z) | m/min | 40/40/30 |
| Cutting Feedrate(X/Y/Z) | m/min | 10 | |
| Tool Changer | Automatic Tool Changer | Chain Type (Servo Drive) | |
| Type of Tool Shank | type | BT-50 | |
| Tool Storage Capacity | Piece | 40 | |
| Max. Tool Diameter (Adjacent) | mm | 125 | |
| Max. Tool Diameter (Empty) | mm | 250 | |
| Max. Tool Length | mm | 350 | |
| Max. Tool Weight | kg | 25 | |
| Tool Change Time | sec | 4.2 | |
| Motor | Spindle Motor | kw | 15/18.5 |
| Three-Axis Servo Motor | kw | 3.0/3.0/3.0 | |
| Accuracy | Accuracy | mm | ±0.005 |
| Repeatability | mm | ±0.003 | |
| Power Required | Power Requirement | kva | 30 |
| Air Pressure Requirement | kg/cm² | 6^8 | |
| Others | External Dimensions (L*W*H) | mm | 5839*4636*3050 |
| Gross Weight | t | 18.5 | |
 |
 |
 |
 |
| cylinder block | pump body | Gear box housing | hydraulic control valve |
|
Arm Type Tool Changer
Automatic Lubricating System
Fully Enclosure Guard
|
Rigid Tapping
Heat Exchange for Electric Cabinet
Coolant Tank & Chip Tray
|
Daul LED Work Light
LED 3 Color Warning Light
M30 Auto Off
|
Spindle Nose Air Blow
Leveling Bolts and Pads
|
|
Optical Linear Scale
CTS
|
Tool Breakage System
Chain Type Chip Conveyor System
|
Oil Mist Collector
Oil Skimmer
|
Rotary Table
Workpiece &Tool Probe
|
