Computer Numerical Control (CNC) technology has revolutionized modern manufacturing processes. These automated systems allow for precise and efficient machining of various materials, from metals to plastics.
In this comprehensive comparison, we’ll learn the differences between CNC milling and CNC drilling, exploring their techniques, applications, and unique advantages.
The roots of CNC technology trace back to the mid-20th century. Initially developed for military and aerospace applications, CNC machines gradually found their way into commercial manufacturing.
The first CNC machines were large, heavy, and limited in functionality. However, advancements in electronics, software, and materials have transformed them into versatile tools used across industries.
CNC technology plays a pivotal role in today’s manufacturing landscape. Here are some key reasons why it’s essential:
1. Precision: CNC machines offer unparalleled precision. They can execute complex geometries with tight tolerances, ensuring consistent quality in mass production.
2. Automation: Unlike manual machining, CNC processes are automated. This reduces human error, increases productivity, and allows for 24/7 operation.
3. Versatility: CNC machines can handle a wide range of tasks, from cutting and shaping to engraving and drilling. Their adaptability makes them suitable for diverse applications.
4. Material Compatibility: CNC technology works with various materials, including metals, plastics, ceramics, and composites. This versatility caters to different industries, from automotive to medical devices.
In the following sections, we’ll explore the specifics of CNC milling and CNC drilling, highlighting their techniques, applications, and the advantages each brings to the table.
Let’s dive deeper into this fascinating world of precision manufacturing!
Imagine a symphony of precision orchestrated by a computer. That’s CNC milling in a nutshell. It’s the art of sculpting raw materials—metal, plastic, or even exotic alloys—into complex shapes with the finesse of a master sculptor.
Let’s break it down:

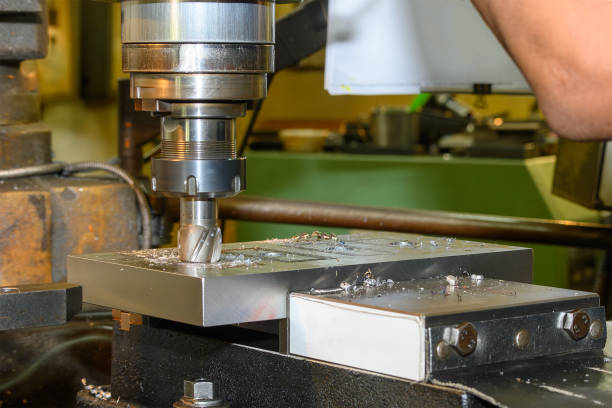

● At its core, CNC milling involves removing material from a workpiece using rotary cutters. These cutters spin at high speeds, carving away excess material to reveal the desired form.
● The magic lies in the computerized control. A digital blueprint guides the cutter’s every move, ensuring accuracy down to the micron.
● Horizontal Mills: These machines have a horizontal spindle orientation. They’re ideal for heavy-duty tasks like face milling and slotting.
● Vertical Mills: Picture a giant drill press, but smarter. Vertical mills position the spindle vertically, making them versatile for intricate designs and 3D contouring.
● Universal Mills: These chameleons can switch between horizontal and vertical modes, adapting to whatever the job demands.
● Workpiece Setup: Secure the material (say, a block of aluminum) on the mill’s table.
● Tool Selection: Choose the right cutter—end mills, ball mills, or fly cutters—based on the design.
● Programming: The CNC operator feeds the machine the digital recipe (G-code) for the desired shape.
● Milling Dance: The spindle spins, the cutter glides, and material shavings fly. The result? A precisely milled masterpiece.
CNC milling isn’t just for hobbyists; it’s the backbone of modern manufacturing. Here’s where it shines:
1. Aerospace: Jet engine components, wing ribs, and intricate brackets—all CNC-milled to withstand the skies.
2. Automotive: From engine blocks to custom alloy wheels, CNC mills produce automotive parts with surgical precision.
3. Medical Devices: Implants, surgical instruments, and prosthetics owe their precision to CNC milling.
4. Consumer Electronics: Your sleek smartphone? CNC-milled aluminum casing. Your laptop? CNC-milled magnesium alloy.
● Precision: CNC mills hit bullseyes every time. Micron-level accuracy ensures consistent quality.
● Versatility: Swap cutters, change materials—the CNC mill adapts like a multitool on steroids.
● Material Range: From butter-soft plastics to hardened steel, CNC mills handle it all.
● Costs: CNC mills aren’t cheap. Initial investment and maintenance add up.
● Complexity: Programming and setup require expertise. It’s not a plug-and-play affair.
● Limitations: Curves and undercuts can be tricky. Some shapes defy even the cleverest algorithms.
It’s the art of creating perfectly round holes in a stationary workpiece using rotating cutting tools. CNC drilling combines precision, efficiency, and versatility, making it indispensable in today’s manufacturing landscape whether it’s assembling complex machinery or creating intricate components.
Let’s break it down:

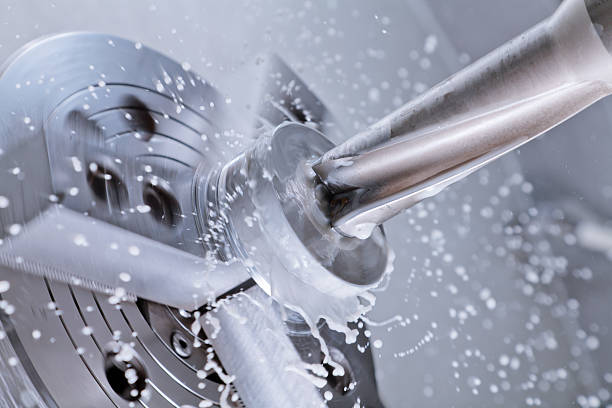

● CNC drilling is a subtractive machining process where a rotating drill bit, equipped with multiple cutting edges, carves out round holes in materials like wood, metal, plastic, or composites.
● Unlike manual drilling, where operators adjust the depth and movement of the drill bit, CNC drilling automates the entire process. Programmed code dictates the drilling operation, ensuring consistent results.
● Bench Drills: These compact machines are ideal for small-scale drilling tasks. They’re commonly used in workshops and hobbyist setups.
● Radial Arm Drills: With their adjustable radial arm, these machines can reach various positions on large workpieces. They’re popular in construction and metal fabrication.
● Upright CNC Drill Press: Robust and versatile, these machines handle heavy and oversized components. They’re a staple in precision manufacturing.
Workpiece Setup: Secure the material on the drilling table.
Tool Selection: Choose the appropriate drill bit based on hole size and material.
Programming: Input the specifications (hole diameter, depth) into the CNC system.
Precision Drilling: The CNC machine executes the drilling operation, creating flawless holes.
CNC drilling isn’t just about aesthetics; it’s the backbone of many industries:
1. Construction: From steel beams to concrete forms, CNC-drilled holes ensure precise assembly and structural integrity.
2. Electronics: Circuit boards, enclosures, and connectors all rely on accurately drilled holes.
3. Automotive: Engine components, chassis parts, and transmission assemblies benefit from CNC drilling.
4. Medical Devices: Implants, surgical instruments, and prosthetics require meticulous holes.
● Speed and Efficiency: CNC drills work swiftly, reducing production time compared to manual methods.
● Ease of Use: Once programmed, CNC machines operate autonomously, minimizing human intervention.
● Versatility: They handle various materials and hole types, accommodating diverse manufacturing needs.
● Costs: Initial investment in CNC drilling machines can be high.
● Limitations: Complex shapes or undercuts may pose challenges.
● Precision Maintenance: Regular calibration and maintenance are essential for consistent accuracy.
In the high-precision world of machining, CNC milling and CNC drilling are like rival virtuosos competing for the spotlight.
Let’s dissect their differences and discover which one hits the high notes.
● CNC Milling: In CNC milling, the cutting tool rotates and moves horizontally and vertically to shape the workpiece. It can create intricate designs, including slots, contours, and complex shapes.
● CNC Drilling: CNC drilling primarily focuses on creating precise holes in workpieces. The movement is typically vertical, with the computer-controlled rotating drill bit advancing to create cylindrical holes.
● CNC Milling: Milling is versatile and can handle a wide range of features beyond hole drilling. From simple slots to complex automotive engine components, milling offers intricate shaping and contouring capabilities.
● CNC Drilling: Drilling specializes in hole-making operations. It excels at forming holes of different shapes and sizes, making it essential for applications such as electronic components, aerospace parts, and mechanical assemblies.
● CNC Milling: Milling can process various materials, including metals, alloys, plastics, and composites. Its adaptability allows for shaping and machining complex workpieces.
● CNC Drilling: While CNC drilling is precise, it is limited to hole drilling applications. It may struggle with hard metals and alloys, focusing primarily on creating accurate holes.
● CNC Milling: Milling achieves high precision with tolerances around ±0.005” (0.127 mm). Its surface finish quality is fine and suitable for intricate parts.
● CNC Drilling: Drilling can achieve even tighter tolerances, as low as ±0.002” (0.05 mm). However, its surface finish may have slightly higher roughness due to the single-axis movement.
● CNC Milling: Milling machines use various tools, including end mills, face mills, drill bits, and fly cutters. The versatility of tooling allows for complex machining operations.
● CNC Drilling: Drilling machines primarily use rotating drill bits. The focus is on creating precise holes, and the tool diversity is narrower compared to milling.
● CNC Milling: Milling machines tend to be costlier due to their versatility and precision. However, they justify the cost with their capabilities and rapid turnaround.
● CNC Drilling: Drilling processes are less costly. Their simplicity and focused functionality contribute to lower operational costs.
Project: Designing and manufacturing engine cylinder heads for an automotive company.
Performance Analysis:
● CNC milling allowed precise shaping of complex features, including coolant passages, valve seats, and spark plug holes.
● Tolerances achieved: ±0.005” (0.127 mm).
● Surface finish: Excellent, suitable for critical components.
Suitability: CNC milling excels in intricate part production, making it ideal for automotive engine components.
Project: Creating holes for electronic components on a PCB.
Performance Analysis:
● CNC drilling accurately positioned holes for components like resistors, capacitors, and ICs.
● Tolerances achieved: ±0.002” (0.05 mm).
● Surface finish: Slightly rough due to single-axis movement.
Suitability: CNC drilling is essential for PCB fabrication, ensuring precise hole placement.
Example 1: Aerospace Fasteners
● CNC Milling: Used for complex brackets and structural components.
● CNC Drilling: Ensured precise holes for attaching fasteners.
Example 2: Furniture Manufacturing
● CNC Milling: Shaped intricate wooden designs.
● CNC Drilling: Created holes for dowels and screws.
Performance Analysis:
● Milling offers versatility; drilling focuses on specific tasks.
CNC Milling:
● Ideal for complex shapes, contours, and multi-axis machining.
● Suitable for metals, plastics, and composites.
CNC Drilling:
● Specializes in hole-making operations.
● Best for materials where precise holes are critical.
Both CNC milling and drilling have their strengths. Consider the project requirements, material, and desired outcome when choosing the right approach.
1. CNC Milling:
● Machine Purchase: CNC milling machines vary in cost based on size, features, and brand. A mid-range machine can range from $20,000 to $100,000.
● Tooling: End mills, collets, and other tooling add to the initial investment.
● Software: CAD/CAM software licenses are essential for programming.
● Installation and Training: Hiring experts for setup and training.
● Facility Space: Allocating space for the machine.
2. CNC Drilling:
● Machine Purchase: Drilling machines are generally more affordable than milling machines. Prices start around $5,000.
● Drill Bits: Different types of drill bits for various materials.
● Software and Training: Similar to milling.
● Space Requirements: Smaller footprint compared to milling.
● Maintenance: Regular maintenance costs for both machines.
● Energy Consumption: Electricity costs for running the machines.
● Tool Replacement: Replacing worn-out tools.
● Downtime: Lost productivity during maintenance or repairs.
CNC Milling:
● Versatile: Handles complex shapes and contours.
● High throughput for intricate parts.
● Requires skilled operators.
CNC Drilling:
● Specialized: Primarily for hole-making.
● Efficient for specific tasks.
● Simpler operation.
CNC Milling:
● ROI depends on project volume and complexity.
● Faster production may justify higher initial costs.
CNC Drilling:
● Lower initial investment.
● ROI based on consistent hole-making needs.
When it comes to fabrication and manufacturing, selecting the appropriate technique is crucial. Whether you’re creating intricate jewelry or constructing heavy machinery, your choice impacts the final outcome.
Let’s explore the factors to consider and guidelines for making informed decisions.
● Precision: Are tight tolerances necessary? Some techniques, like laser cutting, excel in precision.
● Speed: Is time of the essence? Waterjet cutting may be faster than traditional machining.
● Complexity: Intricate designs may require additive manufacturing (3D printing).
● Different materials (metal, plastic, wood) demand specific methods. For thin sheets, consider laser or plasma cutting. Thicker materials may require milling or turning.
● Compatibility matters too. Some techniques work better with certain materials (e.g., CNC milling for aluminum).
● Surface finish matters. Laser engraving provides fine details, while sandblasting creates texture.
● Complex shapes benefit from 3D printing or wire EDM (electrical discharge machining).
● Consult experts in your field. Industries like aerospace, automotive, and medical devices have established best practices.
● Attend trade shows and workshops to learn about cutting-edge techniques.
● Cost: Evaluate initial investment, operational expenses, and maintenance.
● Time: Consider production lead times. Rapid prototyping may save time.
● Quality: Prioritize precision and durability.
Remember, there’s no one-size-fits-all solution. Assess your unique project requirements, weigh the pros and cons, and make an informed choice.
Artificial Intelligence (AI) is revolutionizing CNC machining by enhancing precision, efficiency, and automation. Here’s how:
● AI-Assisted Design and Manufacturing Optimization: AI technologies predict assembly relationships, streamline design processes, and minimize manual adjustments. For instance, Siemens Solid Edge 2024 uses AI to optimize assembly design.
● Machine Learning and Big Data: CNC machines generate extensive datasets. By applying machine learning algorithms to sensor measurements, operational parameters, and metrology data, manufacturers can refine machining processes. This leads to increased throughput, superior quality, and reduced costs. Machine learning also enables predictive maintenance strategies and early detection of potential machine failures.
● Deep Learning for Unstructured Data: Extracting insights from unstructured data (such as customer orders, drawings, and production logs) aids in demand forecasting and improved production planning.
AI algorithms optimize cutting paths, predict machine maintenance, and enable real-time adjustments. This results in reduced waste, faster production times, and lower costs. CNC machining now caters to complex, custom projects with unparalleled accuracy.
● Smart Manufacturing: The adoption of smart manufacturing technologies, including the Industrial Internet of Things (IIoT), reshapes production processes, supply chains, and efficiency.
● Mobile Apps: The mobile app market continues to grow, with consumer spending and mobile ad spend on the rise.
● Education and Agriculture: Large-scale job growth is expected in education, agriculture, and digital commerce and trade.
● Redesigned Supply Chains: Manufacturers are rethinking supply chains in response to global megatrends, such as the effects of the COVID-19 pandemic, supply chain disruptions, and geopolitical risks.
● Technology-Driven Efficiency: Technology remains pivotal in driving efficiency, resilience, and innovation in manufacturing supply chains.
In the world of CNC machining, milling offers versatility, intricate shaping, and high precision. It handles complex shapes and contours, achieving tolerances around ±0.005” (0.127 mm). However, it comes with a higher initial investment. On the other hand, drilling specializes in precise hole-making operations. It achieves even tighter tolerances (±0.002” or 0.05 mm) and is cost-efficient for consistent hole needs. Choosing between the two depends on your specific project requirements and long-term goals.
Both CNC milling and CNC drilling play crucial roles in modern manufacturing. As we look ahead, emerging technologies like AI, automation, and generative AI will continue to shape CNC machining. Smart factories, sustainability, and customization will play crucial roles in future manufacturing processes.
