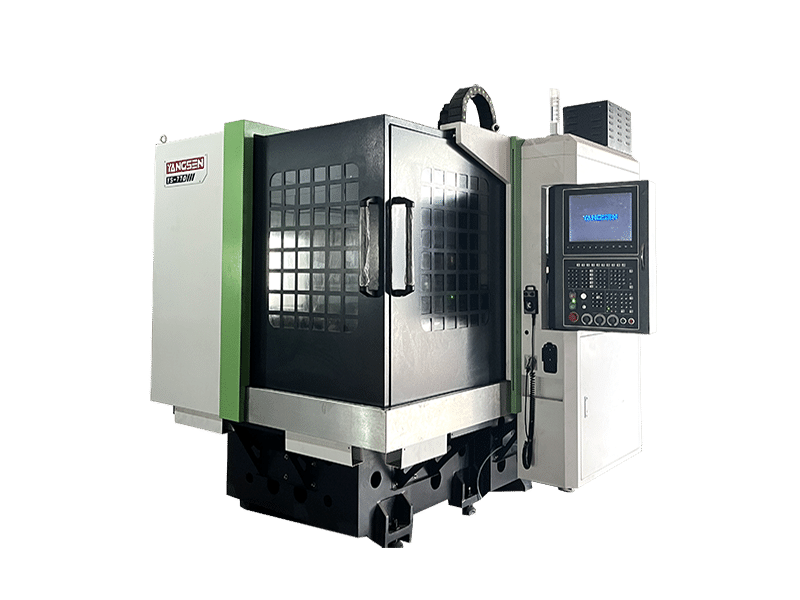

CNC Milling Cutting Drilling and Engraving Vertical Machining Center YS-770

CNC Engraving And Milling Machine For Steel Metal Cutting Embossing Mold Is A Tool Machine Center Which can be engraved or milled. On the basis of the engraving machine, the power of the main shaft and the servo motor is increased, the bearing capacity of the bed is increased, and the high speed of the main shaft is maintained, and more importantly, the precision is high. The engraving and milling machine is also developing towards high speed, which is generally called high-speed machine. It has stronger cutting ability and very high machining accuracy.

1. A patented spindle box of engraving and milling machine

There is a stepped hole inside the spindle box; the electric spindle is installed in the stepped hole, and a flange is used to fix the spindle box

2. Worktable

Box structure and ballscrew are integrally formed.

3. Optical linear scales

Optional Heidenhain, Fagor optical linear scales with accuracy of under ±5um

4. Base

Multi-layer wall box structure, rear chip extractions

5. A triangular rib structure of bridge column

The utility model of the triangular rib structure of the door bridge improves the dynamic and static rigidity of the machine tool and enhances the processing accuracy.

6. Optional Direct-Driven BBT40 spindle

7. Upgrade Configuration

Standard servo carousel tool magazine; HSK-E40 motor spindle; graphite protection package; laser tool probe; oil mist collector system, and more

   8. Stable Accuracy

   The closed loop optical linear scales with high positioning accuracy can effectively suppress the positioning error caused by the thermal extension of the lead ballscrew.

   9. System Stability

   Equipped with Siemens 828D system.
