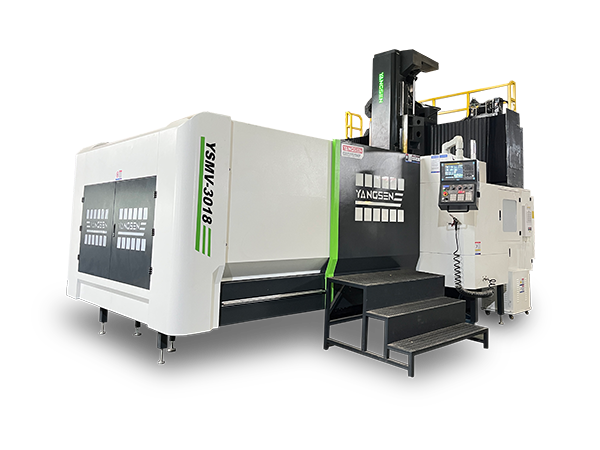

Large 5 axis CNC machine, CNC gantry milling machine for sale, 5-Axis Gantry Type Milling Center. The YSMV3018 is a 5-axis gantry mill designed for complex, large-part machining, such as airframe components, layup molds, and composite structures.

  • Max. X-axis Travel :

    3000mm
  • Max. Y-axis Travel :

    1700mm
  • Max. Z-axis Travel :

    800mm
  • Max Workpiece Length :

    2700mm
  • Max Workpieces Width :

    1400mm
  • Max Workpieces Weight :

    24T
  • Application :

    Medical Industry
  • Processing :

    Drilling, Tapping, Milling, Surface Milling



YSMV-3018 Gantry CNC Machine Features

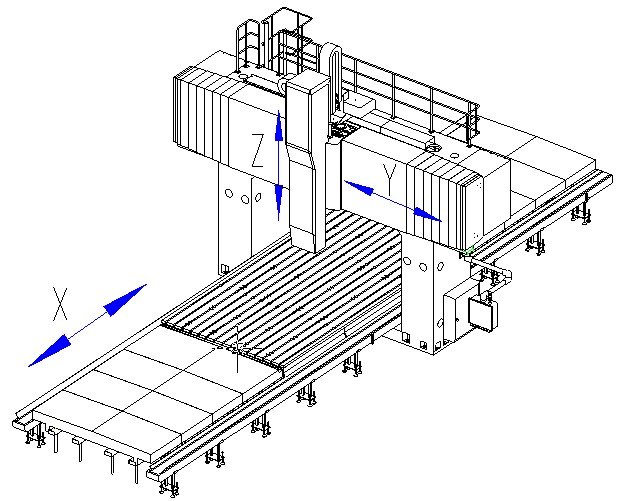

The overall layout of the gantry machine tool is a fixed-beam beam structure, and the worktable moves forward and backward; the left and right columns and the bed are distributed on both sides of the workbench. The gantry table moves forward and backward in the X axis, the ram moves vertically in the Z direction on the slide plate, and the slide plate and the ram move horizontally in the Y direction on the beam.



YSMV-3018 Gantry CNC Machine Structure

1. Machine tool spindle

The optional HSKA63-18000rpm high-frequency electric spindle has the advantages of high power and wide constant power range. The spindle tool is spring clamped and hydraulically released. The spindle is equipped with a coaxial ring encoder, which can synchronously feedback the instantaneous speed and rotation angle of the spindle. It has good high-speed continuous processing performance, strong overload capability, and rigid tapping function.

The main shaft bearing is lubricated with grease and has good high-speed performance. The spindle tool is clamped by spring and released hydraulically.

The labyrinth seal at the front end of the spindle is equipped with air pressure protection, and the taper hole of the spindle is blown and cleaned with pressurized air. Make sure the milling head is protected from dust and chips.

2. Feed transmission of each axis

X, Y, and Z-direction transmission all use AC servo motors as power sources, and ball screws as transmission components. The ball screw is fixedly supported at both ends. It is supported by an imported special precision bearing group and pre-stretched in both directions to ensure the feed stiffness and life of the screw. The Y-axis screw is equipped with an advanced auxiliary support structure, which can effectively avoid accuracy errors caused by the sagging center of gravity of the large-stroke screw. The Z-axis motor has an automatic brake function. In the event of a power outage, the automatic brake will hold the motor shaft tightly so that it cannot rotate.

3. Guide rail form

The X-axis guide rail pair uses two heavy-duty linear guide rails with small friction coefficient and high sensitivity; small vibration at high speed and no crawling at low speed. The drive shaft has high positioning accuracy and excellent servo drive performance; at the same time, it has large load-bearing capacity and good cutting vibration resistance, which can improve the dynamic characteristics of the machine tool and increase the accuracy, stability, and service life of the machine tool;

The Y-axis crossbeam guide rail pair uses two heavy-duty linear guide rails; the guide rails are arranged in a stepped manner, with a large span and sufficient bending stiffness and torsional stiffness.

The Z-axis guide rail pair uses four heavy-duty linear guide rails and 8 slide blocks to ensure smooth cutting during processing.

4. Basic parts of machine tools

The bed, columns, beams, spindle box, etc. are all cast using high-strength cast iron materials and resin sand technology. To meet the heavy load cutting of machine tools, the cross beam adopts a large cross-section and has sufficient bending stiffness and torsional stiffness. These large parts are designed optimally with the aid of computer three-dimensional software, and the stiffeners are reasonably arranged to improve the stiffness of the large parts.

5. Machine tool lubrication

The lubrication of machine tools is divided into two forms: grease lubrication and automatic thin oil lubrication.

Grease lubrication parts: three coordinate bearings

Automatic thin oil lubrication parts: ball screw pair, linear guide rail, cast iron-coated friction guide rail pair

Automatic thin oil lubrication is a timed and quantitative fully automatic method. The action is automatically controlled by the CNC system and can detect and alarm.

6. Cutting cooling and chip removal system

The cutting cooling of machine tools adopts external cooling, and the coolant is emulsified and non-corrosive liquid. The chips are sent to the trolley through two chain plate chip conveyors on the bed.

7. Machine tool protection device

The bed guide rail (X-axis) of the machine tool adopts a rust-proof metal telescopic protective cover; the cross-beam guide rail (Y-axis) adopts an organ-type protection; the entire machine tool adopts simple protection to prevent iron filings and coolant from splashing, making the operator safe and comfortable work in an environment.

8. Electrical system

This machine tool uses the Japanese FANUC OI-MF-PULS CNC system. The spindle drive unit, feed drive unit, AC spindle motor, and AC feed servo motor are all imported originals with advanced performance, stability, and reliability.



YSMV-3018 5-axis Gantry Machine Parameters

Subject Specification Unit YSMV-3018
Travel X/Y/Z axis mm 3000*1700*800
Spindle nose to the worktable surface mm 90-890
Gantry width mm 1700
Gantry Passable Height mm 900
Worktable worktable(L*W) mm 2700*1400
Worktable max load t 6
T-SLOT mm 7-22*200
Spindle Spindle, taper hole (model/installation size) mm HSKA63
Spindle speed rpm 18000
Spindle delivery type   Electric Spindle
Feed Feed rate (X/Y/Z) m/min 2012-12-12
The max cutting feed rate mm/min 8000
ATC(optional) Tool change method   Side Mount
Tool Holder specifications type HSKA63
Tool capacity tools 24
Maximum tool diameter (adjacent tool) mm Φ80
Maximum tool diameter (without adjacent tool) mm Φ120
Maximum tool length mm 300
Maximum tool weight kg 8
Fastest tool change time sec 4
Motor Spindle motor kw 20-25
x/y/z axis motor kw AIF40/3000/AIF22/3000/AIF22B/3000
Cutting water pump motor m/h-m 4-60
Accuracy GB/T 19362.2—2017 Positioning mm 0.025/0.02/0.016
Repeatability mm 0.016/0.014/0.008
Power requirement Power requirements kva 45
Air source requirements Kg/cm² 6^8
Others L*W*H mm 6600*3980*3650
Weight T 24
