The big gantry double column machine has a wide application in various products like plate, box, framework......., rough & finish machining, and various procedures like milling, boring, drilling, rigid tapping, reaming, and countersink machining of the machining industry.
Max. X-axis Travel :
8000mmMax. Y-axis Travel :
2700mmMax. Z-axis Travel :
1250mmMax Workpiece Length :
8000mmMax Workpieces Width :
2300mmMax Workpieces Weight :
25TApplication :
Medical IndustryProcessing :

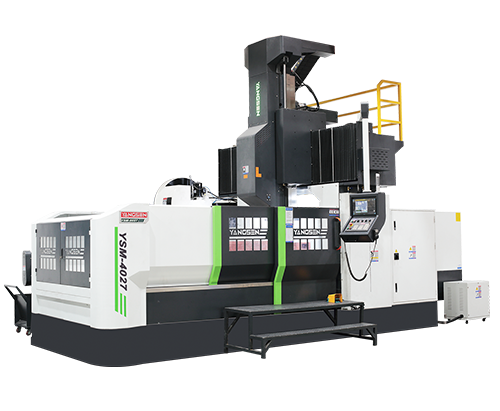

Drilling, Tapping, Milling, Surface MillingYSM-8027 Gantry Double Column Machine Product Description
CNC gantry machining center is with frame structure, with a grinding sliding guide, according to good rigidity, strong shock absorption, processing a wide range of good stability, the machine with milling, boring, drilling (drilling, expansion, hinge), tapping, Countersink and other processing functions, can be equipped with a variety of accessories milling head, with manual change function, to expand the processing range of the machine, parts can be completed at the same time a number of processing steps.
 |
Applicable to all kinds of parts processing, mold processing, aluminum parts and more X and Y axes use the roller-type linear guideway, and the Z axis offers a box way, it can be equipped with various types of manual attaching heads. Designed with box ways with hand scrapping, cutting vibration adapting, and precise power transmission to get efficient, rigid, and accurate cutting. Wide base with solid columns and beam, providing the best structure stiffness to ensure the best geometric accuracy of 3-axis travel. Full casting components with guideways coated with precision scrapping to ensure the best stiffness and low friction. |
The product structure and process maturity, quality, and stability. Applicable to the automotive, shipping, printing, packaging, textile, mold, and other mechanical processing areas. Machine tools with high efficiency, high precision, high rigidity, and other characteristics, are the enterprise-efficient, high-volume parts of the ideal choice.

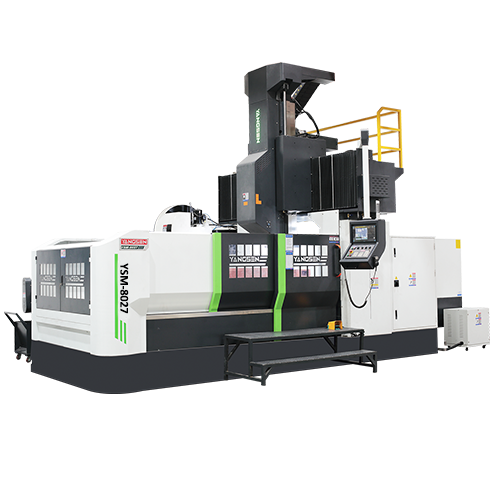

YSM-8027 Gantry CNC Machine Parameters
|
Model |
YSM-8027 |
||
|
Subject |
Specifications |
Units |
|
|
Travel
|
X-Axis |
mm |
8000 |
|
Y-Axis |
mm |
2700 |
|
|
Z-Axis |
mm |
1250 |
|
|
Spindle Nose to Worktable |
mm |
280-1480 |
|
|
Three-Axis Guideway |
|
X/Y Heavy Load Roller Linear Guideway Z-Axis T-Type Ram Box Way |
|
|
Door Width |
|
2700 |
|
|
Worktable |
Worktable Size(L*W) |
mm |
8000*2300 |
|
Maximum Table Load |
t |
25 |
|
|
T-Slot |
mm |
11-28*200 |
|
|
Spindle |
Spindle Type |
type |
BBT-50 |
|
Spindle R.P.M. |
rpm |
6000 |
|
|
Spindle Drive Type |
|
Belt (DDS/Geared) |
|
|
Feedrate |
Rapid Traverse (X/Y/Z) |
m/min |
6/10/10 |
|
Cutting Feedrate (X/Y/Z) |
m/min |
6 |
|
|
Tool Changer |
ATC |
|
24 (Option: 40/60) |
|
Motor |
Spindle Motor |
KW |
15/18.5 (143-236 Nm) |
|
Three-Axis Servo Motor |
KW |
6/3/3 (38/36/36 Nm) |
|
|
Accuracy |
Accuracy |
mm |
0.03/0.02/0.015 |
|
Repeatability |
mm |
0.02/0.015/0.01 |
|
|
Power Required |
Power Requirement |
kva |
60 |
|
Air Pressure Requirement |
kg/cm2 |
6^8 |
|
|
Others |
External Dimensions (L*W*H) |
mm |
17350*6000*5600 |
|
Gross Weight |
t |
80 |
|
Gantry CNC Machine Sample Applications
Double column machining center is mainly used for the processing of large boxes, complex surface molds, large-shaped parts, and plate parts.
Standard Accessories
|
Rigid Tapping Automatic Lubricating System Semi-Enclosed Guard |
Dual LED Work Light Heat Exchange for Electric Cabinet Dual-Screw Type Chip Conveyor |
Spindle Nose Air Blow LED 3 Color Warning Light Chain Type Chip Conveyor and Cart |
M30 Auto Off Leveling Bolts and Pads |
Options
|
Optical Linear Scale CTS 40T ATC |
Tool Breakage System Chip Conveyor System Rotary Table |
Oil Mist System Oil Skimmer 90° Manual Milling Head |
Air Conditioner Auto Parts Probe Measuring System 90° Auto Milling Head with AHC |
