Hot Sale CNC Big Gantry Machine, CNC Vertical Milling Machine, CNC Double-Column Machining Center. Yangsen is proud to offer you top-of-the-line double-column machining centers. Find the ideal product for your specific requirements.
Max. X-axis Travel :
7000mmMax. Y-axis Travel :
3200mmMax. Z-axis Travel :
1000mmMax Workpiece Length :
6400mmMax Workpieces Width :
2600mmMax Workpieces Weight :
20TApplication :
Medical IndustryProcessing :

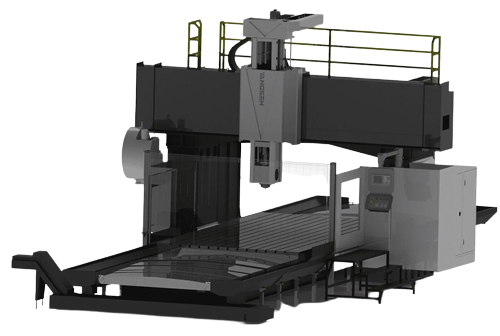

Drilling, Tapping, Milling, Surface MillingYSMV-7030 Gantry CNC Machine Features
 |
The gantry machining center is more suitable for the processing of large workpieces and has advantages for the processing of workpieces with complex shapes. The gantry machining center has a high degree of automation and high production efficiency. Except for the manual clamping of blanks, all other machining processes can be done automatically by CNC machine tools. If combined with automatic loading and unloading means, it is the basic part of the unmanned control factory. CNC machining reduces the labor intensity of operators, improves working conditions, and effectively improves production efficiency. |
Gantry Machining Center Parameters
| Model | YSMV-7030 | ||
| Subject | Specifications | Units | |
| Travel | X-Axis | mm | 7000 |
| Y-Axis | mm | 3200 | |
| Z-Axis | mm | 1000 | |
| Spindle Nose to Worktable | mm | 250-1250 | |
| Three-Axis Guideway | X/Y/Z Heavy Load Roller Linear Guideway | ||
| Door Width | 3000 | ||
| Type of Ram | T-Type | ||
| Worktable | Worktable Size(L*W) | mm | 6400*2600 |
| Maximum Table Load | t | 20 | |
| T-Slot | mm | 13-28*200 | |
| Spindle | Spindle Type | type | BBT-50 |
| Spindle R.P.M. | rpm | 6000 | |
| Spindle Drive Type | DDS | ||
| Feedrate | Rapid Traverse (X/Y/Z) | m/min | 6/15/15 |
| Cutting Feedrate (X/Y/Z) | m/min | 6 | |
| Tool Changer | ATC | 24 (Option: 40/60) | |
| Motor | Spindle Motor | KW | 15/18.5(143-236 Nm) |
| Three-Axis Servo Motor | KW | 6/3/3 (38/36/36 Nm) | |
| Accuracy | Accuracy | mm | 0.045/0.02/0.015 |
| Repeatability | mm | 0.035/0.015/0.01 | |
| Power Required | Power Requirement | kva | 50 |
| Air Pressure Requirement | kg/cm² | 6^8 | |
| Others | External Dimensions (L*W*H) | mm | 15750*6050*5420 |
| Gross Weight | t | 45 | |
Standard Accessories
|
Rigid Tapping Automatic Lubricating System Semi-Enclosed Guard |
Dual LED Work Light Heat Exchange for Electric Cabinet Dual-Screw Type Chip Conveyor |
Spindle Nose Air Blow LED 3 Color Warning Light Chain Type Chip Conveyor and Cart |
M30 Auto Off Leveling Bolts and Pads |
Options
|
Optical Linear Scale CTS 40T ATC |
Tool Breakage System Chip Conveyor System Rotary Table |
Oil Mist System Oil Skimmer 90° Manual Milling Head |
Air Conditioner Auto Parts Probe Measuring System 90° Auto Milling Head with AHC |
