Yangsen is proud to offer you top-of-the-line double-column machining centers. Find the ideal product for your specific requirements. The solid double-column construction ensures greater rigidity and closer tolerances, making this machine well-suited for the efficient machining of general parts and rapid die & mold jobs.
Max. X-axis Travel :
5000mmMax. Y-axis Travel :
3200mmMax. Z-axis Travel :
1000mmMax Workpiece Length :
4600mmMax Workpieces Width :
2600mmMax Workpieces Weight :
18TApplication :
Medical IndustryProcessing :
Drilling, Tapping, Milling, Surface MillingYSMV-5030 Gantry CNC Machine Features
|
|

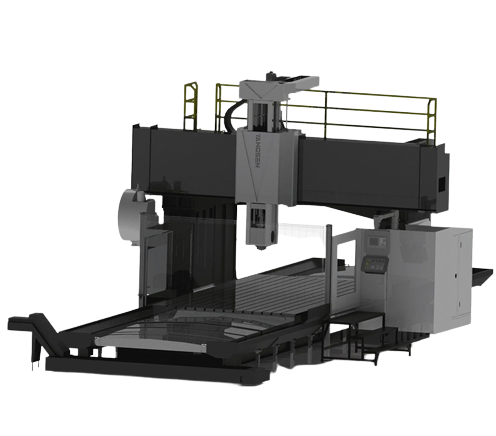

CNC double-column machining centers are most suitable for processing large parts such as marine parts, and more. This machine is suitable for processing machinery and mold manufacturing field of vertical machining centers, from the rough machining and finish machining and processing requirements apply, and can finish milling, drilling, tapping, boring, and a variety of processes. The gantry CNC machining center of Vision Wide featured with box structural design that is suitable for limited working space, and its one-piece design of work table and columns provides stable, speedy feeding performance that meets precision mold and aluminum cutting requirements. |

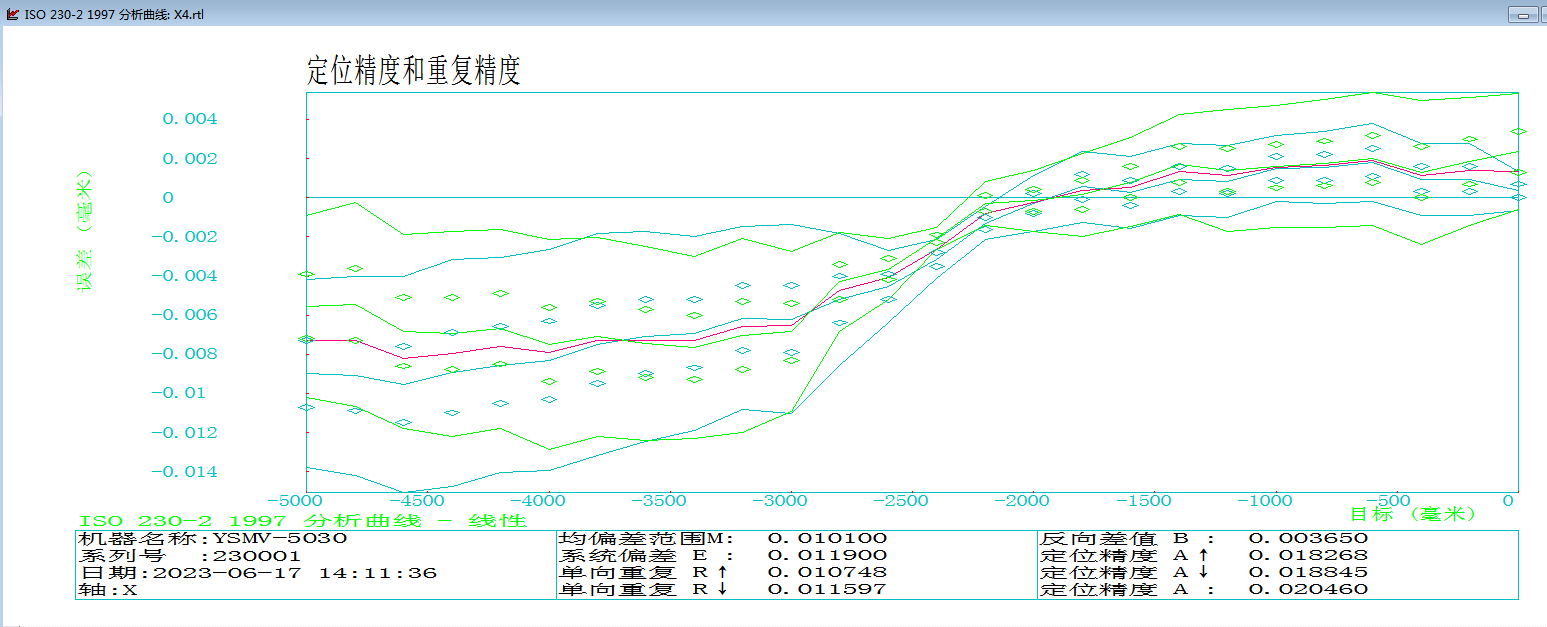

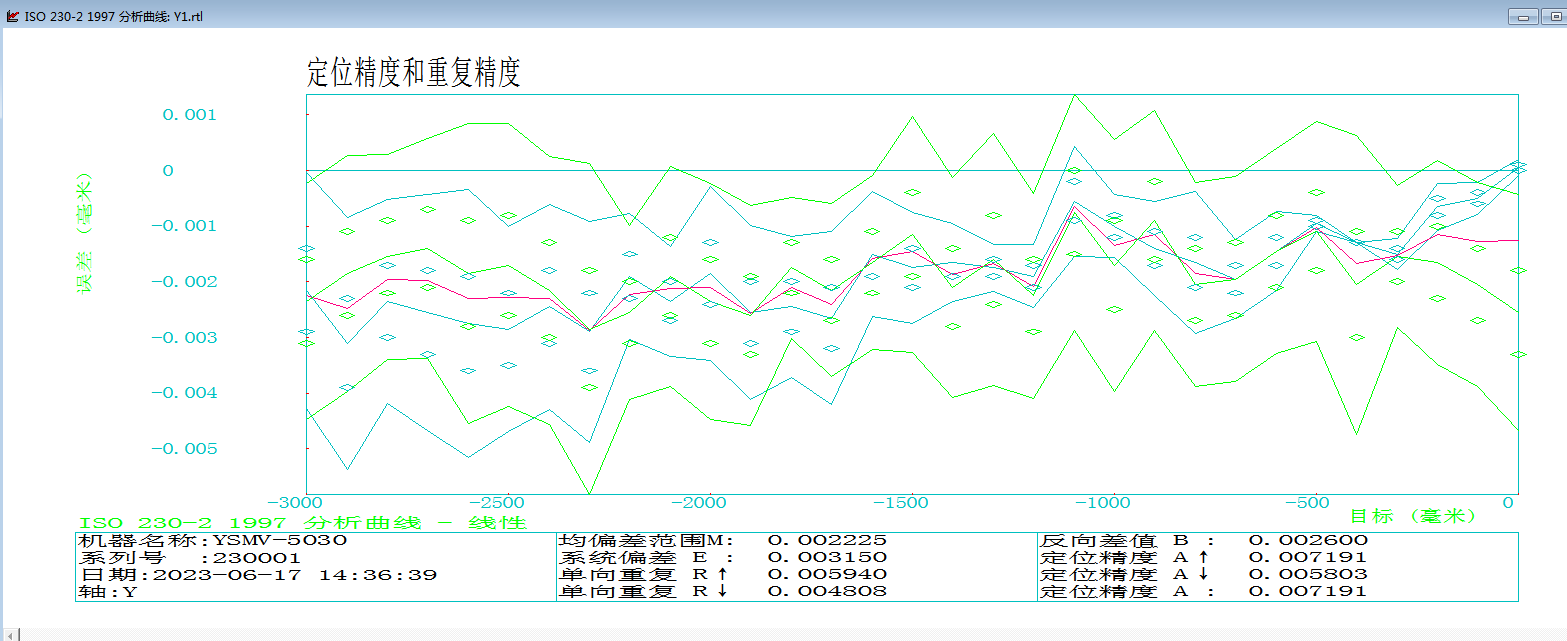

YSMV-5030 Positioning Accuracy and Repeatability Display
 |
 |
Gantry Machining Center Parameters
| Model | YSMV-5030 | ||
| Subject | Specifications | Units | |
| Travel | X-Axis | mm | 5000 |
| Y-Axis | mm | 3200 | |
| Z-Axis | mm | 1000 | |
| Spindle Nose to Worktable | mm | 250-1250 | |
| Three-Axis Guideway | X/Y/Z Heavy Load Roller Linear Guideway | ||
| Door Width | 3000 | ||
| Type of Ram | T-Type | ||
| Worktable | Worktable Size(L*W) | mm | 6400*2600 |
| Maximum Table Load | t | 18 | |
| T-Slot | mm | 13-28*200 | |
| Spindle | Spindle Type | type | BBT-50 |
| Spindle R.P.M. | rpm | 6000 | |
| Spindle Drive Type | DDS | ||
| Feedrate | Rapid Traverse (X/Y/Z) | m/min | 12/15/15 |
| Cutting Feedrate (X/Y/Z) | m/min | 12 | |
| Tool Changer | ATC | 24 (Option: 40/60) | |
| Motor | Spindle Motor | KW | 15/18.5(143-236 Nm) |
| Three-Axis Servo Motor | KW | 6/3/3 (38/36/36 Nm) | |
| Accuracy | Accuracy | mm | 0.03/0.02/0.015 |
| Repeatability | mm | 0.018/0.015/0.01 | |
| Power Required | Power Requirement | kva | 50 |
| Air Pressure Requirement | kg/cm² | 6^8 | |
| Others | External Dimensions (L*W*H) | mm | 11600*6050*5420 |
| Gross Weight | t | 50 | |
Standard Accessories
|
Rigid Tapping Automatic Lubricating System Semi-Enclosed Guard |
Dual LED Work Light Heat Exchange for Electric Cabinet Dual-Screw Type Chip Conveyor |
Spindle Nose Air Blow LED 3 Color Warning Light Chain Type Chip Conveyor and Cart |
M30 Auto Off Leveling Bolts and Pads |
Options
|
Optical Linear Scale CTS 40T ATC |
Tool Breakage System Chip Conveyor System Rotary Table |
Oil Mist System Oil Skimmer 90° Manual Milling Head |
Air Conditioner Auto Parts Probe Measuring System 90° Auto Milling Head with AHC |
