Double-column machining centers offer superior rigidity, thermal and dimensional stability, and precision for detail-oriented applications in industries such as automotive, and electronics. These impressive machines make the most challenging parts look easy to make.
Max. X-axis Travel :
6000mmMax. Y-axis Travel :
2700mmMax. Z-axis Travel :
1000mmMax Workpiece Length :
6000mmMax Workpieces Width :
2300mmMax Workpieces Weight :
20TApplication :
Medical IndustryProcessing :

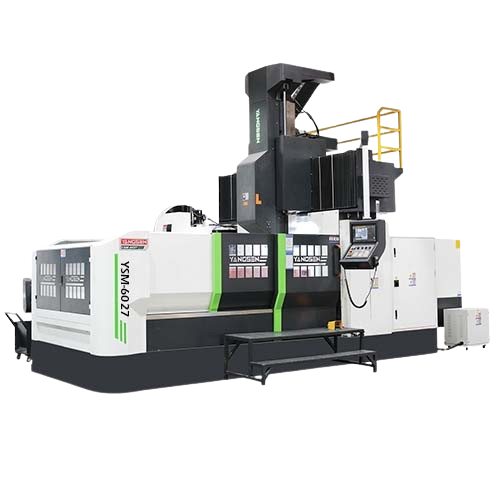

Drilling, Tapping, Milling, Surface MillingYSM-6027 Machining Center Product Description
 |
Applicable to all kinds of parts processing, mold processing, aluminum parts, and more. X and Y axes use the roller-type linear guideway, and the Z axis offers a box way, it can be equipped with various types of manual attaching head Designed with box ways with hand scrapping, cutting vibration adapting, and precise power transmission to get efficient, rigid, and accurate cutting Wide base with solid columns and beam, providing the best structure stiffness to ensure the best geometric accuracy of 3-axis travel Full casting components with guideways coated with precision scrapping to ensure the best stiffness and low friction |
Yangsen double-column machining centers can handle multiple machining tasks at once and are best for the heavy processing of various materials. Products adapt to the characteristics of the traditional double-column machines with high rigidity, symmetrical structure, and high stability. Through element analysis, optimizing the structure of basic components, and improving the dynamic performance of the product we obtain the perfect combination of high power, high torque, high efficiency, and high precision processing.
This double-column machining center series of machines is widely used for the mass production of small and medium-sized cabinets, covers, panels, shells, and plates in high-precision molds, automobiles, machinery, instrumentation, light industrial textiles, electronic instruments, precision metal products, precision mold products, and machinery manufacturing industries.
YSM-6027 Gantry CNC Machine Parameters
|
Model |
YSM-6027 |
||
|
Subject |
Specifications |
Units |
|
|
Travel |
X-Axis |
mm |
6000 |
|
Y-Axis |
mm |
2700 |
|
|
Z-Axis |
mm |
1000 |
|
|
Spindle Nose to Worktable |
mm |
280-1280 |
|
|
Three-Axis Guideway |
|
X/Y Heavy Load Roller Linear Guideway Z-Axis T-Type Ram Box Way |
|
|
Door Width |
|
2700 |
|
|
Worktable |
Worktable Size(L*W) |
mm |
6000*2300 |
|
Maximum Table Load |
t |
20 |
|
|
T-Slot |
mm |
11-28*200 |
|
|
Spindle |
Spindle Type |
type |
BBT-50 |
|
Spindle R.P.M. |
rpm |
6000 |
|
|
Spindle Drive Type |
|
Belt (DDS/Geared) |
|
|
Feedrate |
Rapid Traverse (X/Y/Z) |
m/min |
8/10/10 |
|
Cutting Feedrate (X/Y/Z) |
m/min |
8 |
|
|
Tool Changer |
ATC |
|
24 (Option: 40/60) |
|
Motor |
Spindle Motor |
KW |
15/18.5 (143-236 Nm) |
|
Three-Axis Servo Motor |
KW |
6/3/3 (38/36/36 Nm) |
|
|
Accuracy |
Accuracy |
mm |
0.03/0.02/0.015 |
|
Repeatability |
mm |
0.02/0.015/0.01 |
|
|
Power Required |
Power Requirement |
kva |
55 |
|
Air Pressure Requirement |
kg/cm2 |
6^8 |
|
|
Others |
External Dimensions (L*W*H) |
mm |
15350*6000*5600 |
|
Gross Weight |
t |
62 |
|

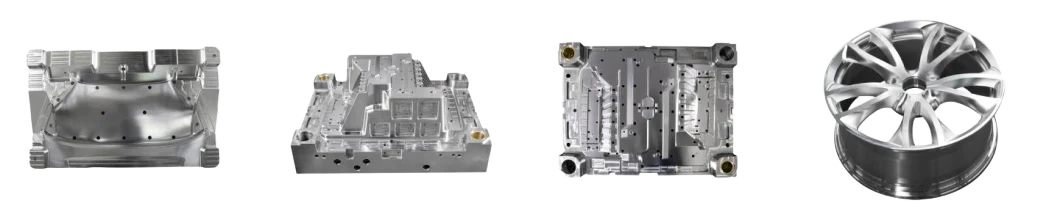

Gantry CNC Machine Sample Applications
The double-column machining center is mainly used for the processing of large boxes, complex surface molds, large-shaped parts, and plate parts.
Standard Accessories
|
Rigid Tapping Automatic Lubricating System Semi-Enclosed Guard |
Dual LED Work Light Heat Exchange for Electric Cabinet Dual-Screw Type Chip Conveyor |
Spindle Nose Air Blow LED 3 Color Warning Light Chain Type Chip Conveyor and Cart |
M30 Auto Off Leveling Bolts and Pads |
Options
|
Optical Linear Scale CTS 40T ATC |
Tool Breakage System Chip Conveyor System Rotary Table |
Oil Mist System Oil Skimmer 90° Manual Milling Head |
Air Conditioner Auto Parts Probe Measuring System 90° Auto Milling Head with AHC |
