Our CNC Horizontal Machining Centers will assist you in becoming more diverse and flexible by dramatically decreasing your lead times while reducing production costs. Our HMCs cut down operating costs by decreasing the number of damaged parts produced, increasing the repeatability, and by accomplishing the most precise cuts with the assistance of rapid tool change-out.
Max. X-axis Travel :
1300mmMax. Y-axis Travel :
800mmMax. Z-axis Travel :
900mmMax Workpiece Length :
800mmMax Workpieces Width :
800mmMax Workpieces Weight :
1.4TApplication :
Auto PartsProcessing :

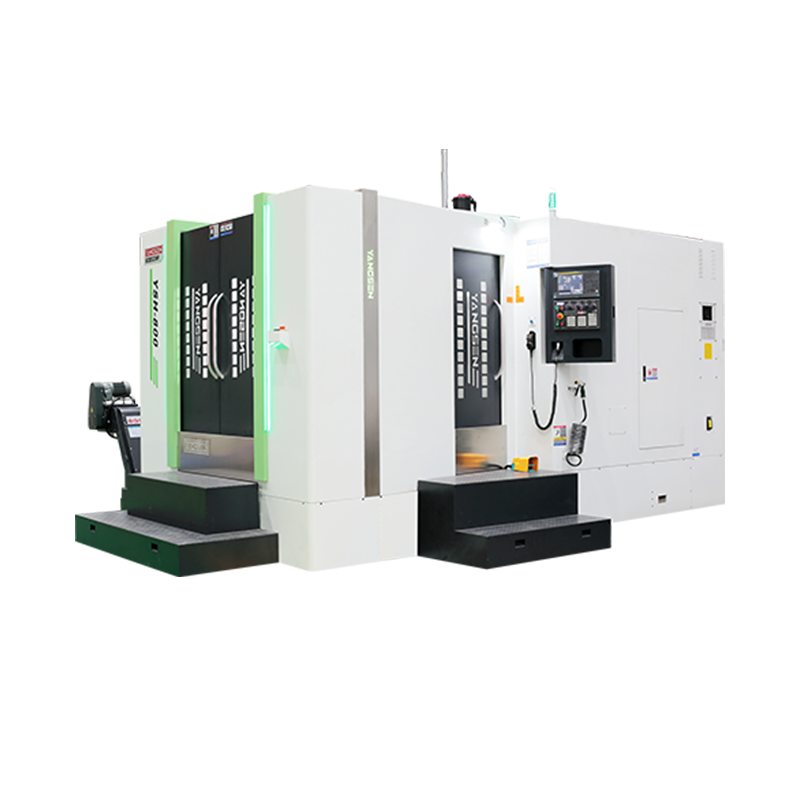

Surface Milling, Drilling Holes, TappingYSH-800D High Precision Horizontal Machining Center
 |
Programmed with advanced finite element analysis software technology, CNC Horizontal Machining Centers are designed to meet your highest demands, whether it’s manufacturing high-quality cast iron or automating your production, setting you apart from the competition. With our CNC machines, and demand is attainable; our machines utilize fewer resources and raw materials and are extremely energy efficient. Our HMCs cut down operating costs by decreasing the number of damaged parts produced, increasing the repeatability and by accomplishing the most precise cuts with the assistance of rapid tool change-out. You can program your HMC to run long periods of time, including overnight and weekends, without risks of downtime, machine malfunction, or part change out, making our machines the most self-sufficient in the market. |
Machine Cutting Performance
|
Surface Milling |
Steel 45# |
Drilling Holes |
Steel 45# |
Tapping |
Steel 45# |
|
Cutting depth 7mm |
|
Cutter diameter Ø82 |
|
Tapping M36 |
|
|
Cutter |
Ø120mm*5T |
Cutter |
Ø82mm*2T |
Cutter |
M36*3P |
|
Spindle speed |
420rpm |
Spindle speed |
500rpm |
Spindle speed |
120rpm |
|
Feed |
F500 |
Feed |
F100 |
Feed |
F480 |
|
Width |
100mm |
Width |
82mm |
Width |
36mm |
YSH-800D Horizontal Machining Product Characteristics
High Rigidity Structural Design, one-piece T-type base structure with rib construction for unprecedented rigidity;
Dual-wall column design for enhancing rigidity and durability;
Two X-axis guideways are positioned at different heights, stepped Design on X-axis to increase stable and reliable rapid axial movement;
The powerful spindle BBT50/190mm utilizes high-precision 6 pieces of ceramic ball bearings;
Servo motor driven reliable automatic tool magazine;
Automatic pallet change, 11-second pallet change servo motor driven.
 |
Machine Bed, Column Equilateral triangle structure of the column, multi-layer stiffeners are arranged to improve the stability of the machine bed. Positive T structure bed, X-axis stepped layout, enlarged line guideway span, rigid support. Adopt a high-strength Rexroth roller guide, high load bearing, and stable precision. |
 |
Spindle install 6 high-rigidity bearings; Outer diameter 190mm Taiwan original BBT50 spindle; Spindle air blow to prevent objects from entering the spindle; The spindle is equipped with ring spray to improve processing quality. The standard FANUC large-torque-wide-area motor ilP30/8000 is equipped with stronger heavy-cutting ability. |
 |
Optical Linear Scales Optional Heidenhain, Fagor Optical Linear Scales, accuracy ± 5um, to ensure machine tool positioning accuracy. |
 |
Double exchange table/ four-axis turntable Realize workpiece exchange and improve processing efficiency; The workpiece is placed outside for easy clamping; High rigidity alloy turbine, wear-resistant, high positioning accuracy; Heavy locking, reduces deformation, resistant to heavy cutting. |
 |
Tool magazine Using Taiwan imported frequency conversion tool magazine, tool change speed is fast and stable. |
YSH-800D Horizontal Machining Machine Parameters
|
Model |
YSH-800D |
||
|
Subject |
Specifications |
Units |
|
|
Travel |
X/Y/Z axis |
mm |
1300/800/900 |
|
Spindle Nose to Worktable |
mm |
150-950 |
|
|
Spindle Center to Column |
mm |
150-1050 |
|
|
Three-Axis Guideway |
|
Roller Linear Guideway |
|
|
Worktable |
Worktable Size (L*W) |
mm |
800x800*2 |
|
Maximum Table Load |
t |
1.4 |
|
|
Table Screw |
mm |
|
|
|
T-Slot |
mm |
7-18x125 |
|
|
Number of Pallet |
pcs |
|
|
|
Table Indexing |
|
1°/0.001° |
|
|
Maximum Turning Diameter |
mm |
φ1100 |
|
|
Spindle |
Spindle Taper |
type |
BBT-50 |
|
Spindle Speed |
rpm |
8000 |
|
|
Spindle Drive Type |
|
Belt |
|
|
Feedrate |
Rapid Traverse(X/Y/Z) |
m/min |
40/40/30 |
|
Cutting Feedrate(X/Y/Z) |
m/min |
10 |
|
|
Tool Changer |
Automatic Tool Changer |
|
Chain Type (Servo Drive) |
|
Type of Tool Shank |
type |
BT-50 |
|
|
Tool Storage Capacity |
Piece |
40 |
|
|
Max. Tool Diameter (Adjacent) |
mm |
125 |
|
|
Max. Tool Diameter (Empty) |
mm |
250 |
|
|
Max. Tool Length |
mm |
350 |
|
|
Max. Tool Weight |
kg |
25 |
|
|
Tool Change Time |
sec |
4.2 |
|
|
Motor |
Spindle Motor |
kw |
15/18.5 |
|
Three-Axis Servo Motor |
kw |
3.0/3.0/3.0 |
|
|
Accuracy |
Accuracy |
mm |
±0.005 |
|
Repeatability |
mm |
±0.003 |
|
|
Power Required |
Power Requirement |
kva |
35 |
|
Air Pressure Requirement |
kg/cm² |
6^8 |
|
|
Others |
External Dimensions (L*W*H) |
mm |
7000*5265*3120 |
|
Gross Weight |
t |
21.5 |
|
|
Arm Type Tool Changer
Automatic Lubricating System
Fully Enclosure Guard
|
Rigid Tapping
Heat Exchange for Electric Cabinet
Coolant Tank & Chip Tray
|
Daul LED Work Light
LED 3 Color Warning Light
M30 Auto Off
|
Spindle Nose Air Blow
Leveling Bolts and Pads
|
|
Optical Linear Scale
CTS
|
Tool Breakage System
Chain Type Chip Conveyor System
|
Oil Mist Collector
Oil Skimmer
|
Rotary Table
Workpiece &Tool Probe
|
