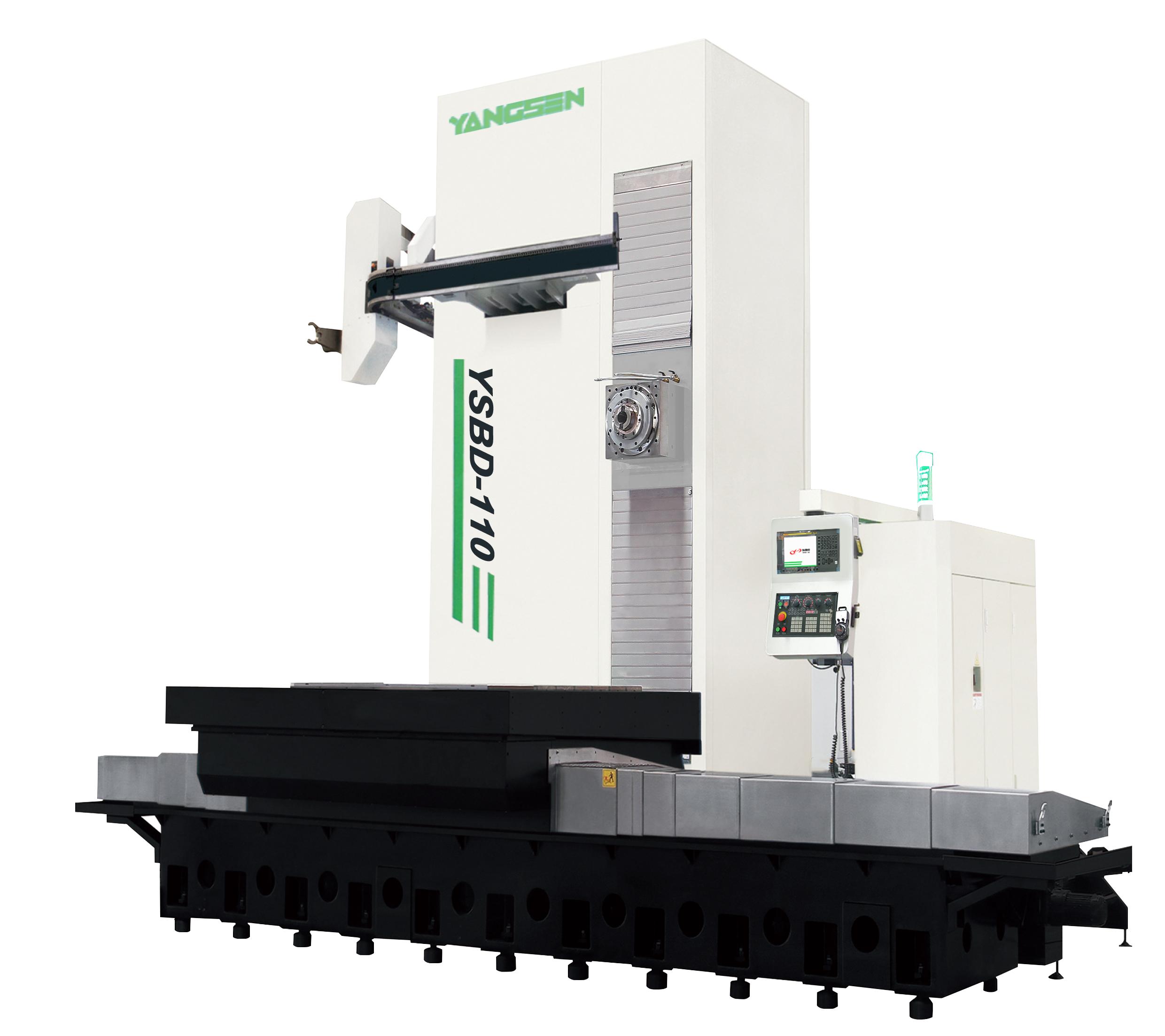

YSBD-110 series are equipped with high precision and high power horizontal boring and milling performance. The large worktable, greatly meets the machining applications of energy petroleum, shipbuilding, large structural parts, construction machinery, diesel engine body, etc. The enclosed box ram and the gearbox are one-piece castings with greatly improve the rigidity and stability of the Z and W axis, and enhance the cutting ability and precision.
Max. X-axis Travel :
2000mmMax. Y-axis Travel :
2000mmMax. Z-axis Travel :
1500mmMax Workpiece Length :
1250mmMax Workpieces Width :
1500mmMax Workpieces Weight :
6TApplication :
Auto PartsProcessing :
Surface Milling, Drilling Holes, TappingHorizontal Boring Machining Center Structure Characteristics
1. Tool magazine structure 40 and 60 tools guideway-type tool magazines, which are driven by a servo tool magazine, improve the overall tool change efficiency. |
|
2. Spindle structure The main shaft installs European structure design, high rigidity, high speed, and low vibration. Low speed and high torque for the spindle. |
|
3. The worktable installs super-large grinding gears. It is combined with twin-turbo, vortex anti-backlash structure to ensure accuracy. | |
4. Transmission structure The X and Z-axis transmission method installs a direct-acting four-wheel drive. It has stable accuracy. Also, it could eliminate backlash, and improve torsional rigidity and allow angle. The Y-axis installs direct-drive transmission and cooperates with a German reducer to improve torsional rigidity. |
|
5. Counterweight structure Use servo frequency conversion hydraulic station, the counterweight of the hydraulic cylinder reduces the axial load and lengthen the life. |
|
6. Casting structure design The linear guideway installation surface and the ballscrew center are on the same plane, which makes the ballscrew drive more stable and ensures the stability of the overall accuracy of the machine tool. |
|
7. Hanging guideway structure The Y-axis adopts a box-in-box high-rigidity right and left paired lining structure. The Y-axis installs 4 linear guide guideways, 2 front and 2 back, with high rigidity, high precision, and long service life. |
Parameters
Subject | Specification | Unit | YSBD-110/6T |
Travel | X/Y/Z/W-axis | mm | 2000/2000/1500/550 |
Spindle Nose to worktable | mm | 65-2065 | |
Spindle center to Column | mm | -2050 | |
X/Y Guideway | Roller guide | ||
Worktable | Worktable Size (LxW) | mm | 1250*1500 |
Maximum Table Load | kg | 6000 | |
Table Screw | No/mm | 0.001 | |
Spindle | Spindle Type(Model number / mounting size) | mm | BT50 |
Spindle Speed | rpm | 3500 | |
Spindle Drive Type | gear type | ||
Boring bar diameter | mm | φ110 | |
Feedrate | Rapid Traverse(X/Y/Z) | m/min | 10/10/10/6 |
Cutting Feedrate (X/Y/Z) | mm/min | 10000 | |
Tool Changer (Options) |
Automatic Tool Changer | track type | |
Type of Tool Shank | type | BT50 | |
Tool Storage Capacity | tools | 40 | |
Max. Tool Diameter (Adjacent) | mm | 125 | |
Max.Tool Diameter (Empty) | mm | 250 | |
Max.Tool Length | mm | 500 | |
Max.Tool Weight | Kg | 25 | |
Fastest Tool Change Time | sec | 14 | |
Motor | Spindle Motor | kw | 22-57 |
Three-Axis Servo Motor | kw | 5.4/5.4/5.4/2.9 | |
Cutting water pump motor | m/h-m | 4-60 | |
Accuracy | X/Y/Z/W positioning accuracy | mm | 0.01/0.01/0.01/0.012 |
X/Y/Z/W repeated positioning accuracy | mm | 0.005/0.008/0.005/0.008 | |
Power Required |
Power Requirement | kva | 50 |
Air Pressure Requirement | Kg/cm | 6~8 | |
Other | External Dimensions((L/W/H)) | mm | 6600*5150*5250 |
Gross Weight | t | 31 |
Standard Accessories
ARM Type Tool Changer | Rigid Tapping | Dual LED Work Light | Spindle Nose Air Blow |
Automatic Lubricating System | Heat Exchange for Electric Cabinet | LED 3 Color Warning Light | Leveling Bolts and Pads |
Semi-Endosed Guard | Coolant Tank & Chip Tray | M30 Auto Off | Rotary Table |
Options
Optical Linear Scale | Tool Breakage System | Oil Mist Collector | Workpiece & Tool Probe |
CTS | Chip Conveyor System | Oil Skimmer | Auto Parts Probe Measuring System |
