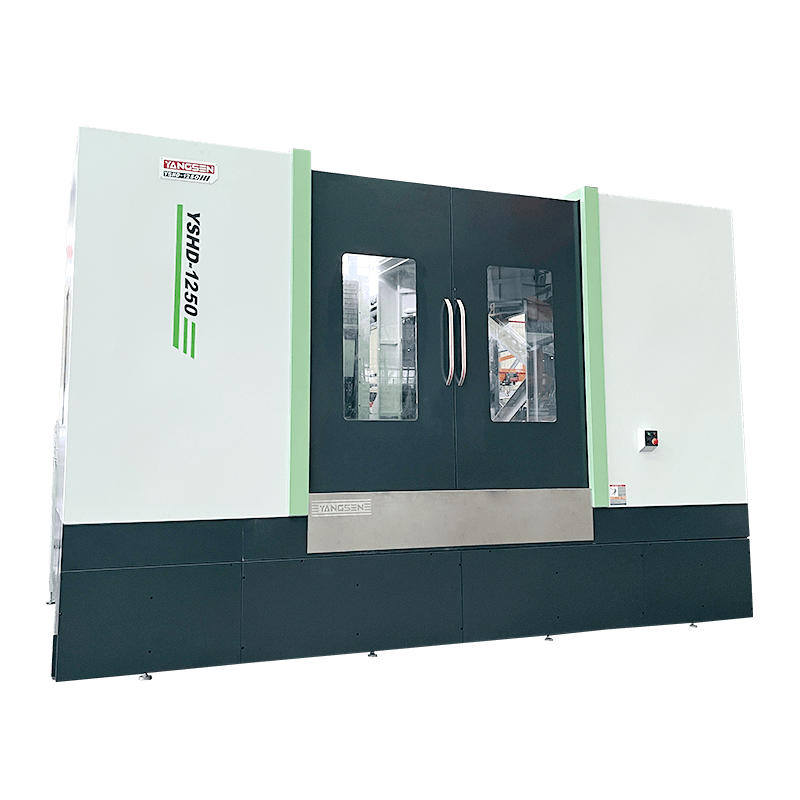

High Speed Horizontal CNC Machining Center YSHD-1250

A horizontal machining center (HMC) is a machining center with its spindle in a horizontal orientation. This machining center design favors uninterrupted production work. One reason for this is that the horizontal orientation encourages chips to fall away, so they don't have to be cleared from the table.

This horizontal machine installs T design, worktable rotating structure form, ultra-wide guide guideway structure,the standard configuration of large torque, and high-speed motor. You could order exchange worktable separately. Our products are suitable for processing various complex parts. It is the preferred equipment in the field of automobile engines and cavity processing in the 5G field.

Surface Milling

Steel 45#

Drilling Holes

Steel 45#

Tapping

Steel 45#

Cutting depth

7mm

Cutter diameter

Ø82

Tapping

M36

Cutter

Ø120mm*5T

Cutter

Ø82mm*2T

Cutter

M36*3P

Spindle speed

420rpm

Spindle speed

500rpm

Spindle speed

120rpm

Feed

F500

Feed

F100

Feed

F480

Width

100mm

Width

82mm

Width

36mm

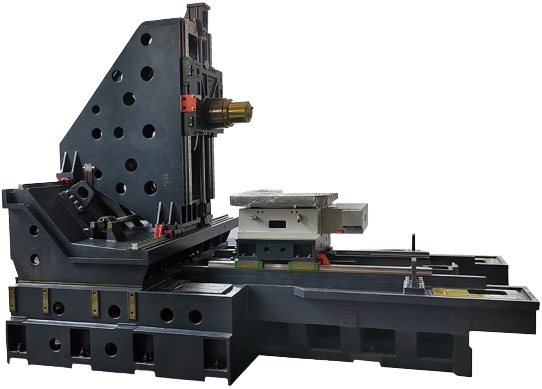

Machine Bed, Column

Equilateral triangle structure of the column, multi-layer stiffeners are arranged to improve the stability of the machine bed.

Positive T structure bed, X-axis stepped layout, enlarged line guideway span, rigid support.

Adopt a high-strength Rexroth roller guide, high load bearing, and stable precision.

Spindle

install 6 high-rigidity bearings;

Outer diameter 190mm Taiwan original BBT50 spindle;

Spindle air blow to prevent objects from entering the spindle;

The spindle is equipped with ring spray to improve processing quality. The standard FANUC large-torque-wide-area motor ilP30/8000 is equipped with stronger heavy-cutting ability.

Optical Linear Scales

Optional Heidenhain, Fagor Optical Linear Scales, accuracy ± 5um, to ensure machine tool positioning accuracy.

Double exchange table/ four-axis turntable

Realize workpiece exchange and improve processing efficiency;

The workpiece is placed outside for easy clamping;

High rigidity alloy turbine, wear-resistant, high positioning accuracy;

Heavy locking, reduces deformation, resistant to heavy cutting.

Tool magazine

Using Taiwan imported frequency conversion tool magazine, tool change speed is fast and stable.
