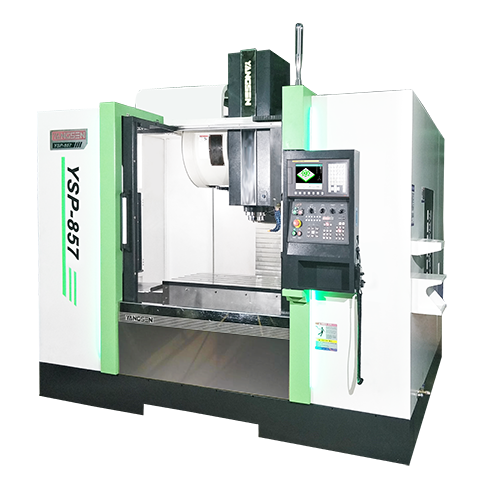

All three axes are equipped with servomotors that are one grade larger than the same models of other brands, with large torque output, fast and accurate positioning.
Max. X-axis Travel :
800mmMax. Y-axis Travel :
500mmMax. Z-axis Travel :
700mmMax Workpiece Length :
1000mmMax Workpieces Width :
530mmMax Workpieces Weight :
600KGApplication :
Auto PartsProcessing :
Surface Milling, Drilling Holes, Tapping, ScrapingVertical Machining Structural Characteristics
 |
The rigid body construction design to provide the ensurence of machining percision and rigidity Hand scrapping skills for box guideways, which ensures the best accuracy and life Boxway design on three axis is suitable for heavy cutting Spindle speed BBT40, the maximum speed is 8000rpm. |
Machine Cutting Performance:
|
Surface Milling |
Steel 45# |
Drilling Holes |
Steel 45# |
Tapping |
Steel 45# |
||
|
Cutting 6mm |
|
Cutter diameter Ø80 |
|
Cutting tapping M30 |
|
||
|
Cutter |
Ø63mm*5T |
Cutter |
Ø80mm*2T |
Cutter |
M30*3P |
||
|
Spindle speed |
550rpm |
Spindle speed |
800rpm |
Spindle speed |
120rpm |
||
|
Feed |
F500 |
Feed |
F100 |
Feed |
F420 |
||
|
Width |
80mm |
Width |
80mm |
Width |
50mm |
||
Vertical Frame Machine Structural Characteristics
 |

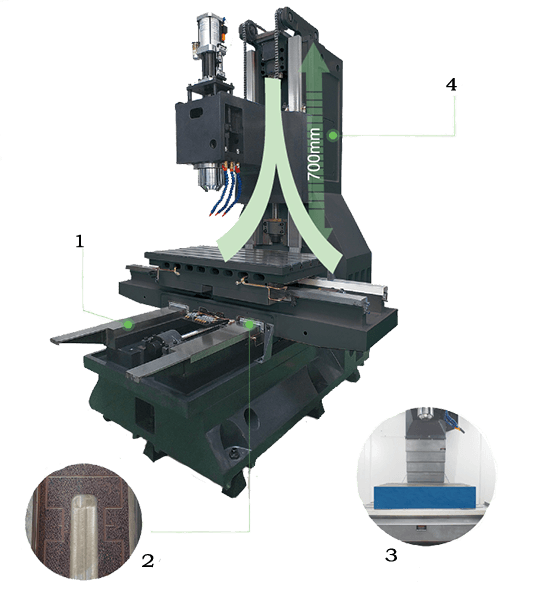

The bed is made of H300 cast iron, quenched, and all slide surfaces are precisely polished and covered with imported wear-resistant leather TURCITE-B. Ensure the accuracy and durability of the machine tool. 1. The wide and thick guide guideways ensure the stability of the machine tool during processing. 2. Scraping process 3. Each box-way type machine is subjected to load aging, and laser ballbar tests before leaving the plant. 4. T-shaped column design, the ultra-wide base for maximum rigidity with Z-axis traof 700mm.vel |
| Model | YSP-857 | ||
| Subject | Specifications | Units | |
| Travel | X/Y/Z axis | mm | 800/500/700 |
| Spindle Nose to Worktable | mm | 110-810 | |
| Spindle Center to Column | mm | 575 | |
| Three-Axis Guideway | / | Box Way (Captain Turcite) | |
| Worktable | Worktable Size (L*W) | mm | 1000X5330 |
| Maximum Table Load | kg | 600 | |
| T-Slot | mm | 5-18x100 | |
| Spindle | Spindle taper | type | BBT-40 |
| Spindle speed | rpm | 8000 | |
| Spindle Drive Type | / | Belt | |
| Feedrate | Rapid Traverse(X/Y/Z) | m/min | 15/15/12 |
| Cutting Feedrate(X/Y/Z) | m/min | 10 | |
| Tool Changer | Automatic fool Changer | / | ARM Type |
| Type of Tool Shank | type | BT-40 | |
| Tool Storage Capacity | Piece | 24 | |
| Max. Tool Diameter (Adjacent) | mm | 80 | |
| Max. Tool Diameter (Empty) | mm | 120 | |
| Max. Tool Length | mm | 300 | |
| Max. Tool Weight | kg | 7 | |
| Tool Change Time | sec | 1.4 | |
| Motor | Spindle Motor | kw | 7.5/11 |
| Three-Axis Servo Motor | kw | 2.0/2.0/3.0 | |
| Accuracy | Accuracy | mm | ±0.01 |
| Repeatability | mm | ±0.005 | |
| Power Required | Power Requirement | kva | 20 |
| Air Pressure Requirement | kg/cm² | 6^8 | |
| Others | External Dimensions (L*W*H) | mm | 2450*2400*2850 |
| Gross Weight | t | 6.5 | |
Standard Accessories
|
Safety Door Automatic Lubricating System Fully Enclosure Guard Air Gun |
Dual LED Work Light Heat Exchange for Electric Cabinet Spindle Coolant Nozzles Coolant Gun |
Daul LED Work Light LED 3 Color Warning Light Coolant Tank & Chip Tray Tool Box |
Spindle Nose Air Blow Leveling Bolts and Pads M30 Auto Off
|
Options
|
Optical Linear Scale Oil Skimmer Workpiece & Tool Probe |
Tool Breakage System Chip Conveyor System Umbrella Type Auto Tool Changer (16/20) |
Oil Mist Collector Oil Skimmer Rotary Worktable (4Th-Axis) |
10000rpm DDS Spindle 12000rpm DDS Spindle Arm Type Tool Changer |
