Vertical Machining Center configurations to handle your most demanding cutting conditions. An emphasis on rigidity in the construction and ultra-high precision let customers supply high value-added services to their clients, entering new markets, expanding business, and producing extreme tolerance work. High-speed spindles and optional factory-installed pallet changers increase spindle utilization and help to create a multi-tasking machining environment that optimizes up-time.
Max. X-axis Travel :
1200mmMax. Y-axis Travel :
700mmMax. Z-axis Travel :
600mmMax Workpiece Length :
1360mmMax Workpieces Width :
700mmMax Workpieces Weight :
1000KGApplication :
Auto PartsProcessing :
Surface Milling, Drilling Holes, Tapping, ScrapingVertical Machining Structural Characteristics
![]() |
Vertical Machining Center configurations to handle your most demanding cutting conditions. An emphasis on rigidity in the construction and ultra-high precision let customers supply high value-added services to their clients, entering new markets, expanding business, and producing extreme tolerance work. High-speed spindles and optional factory-installed pallet changers increase spindle utilization and help to create a multi-tasking machining environment that optimizes up-time. |
Machine Cutting Performance:
Surface Milling |
Steel 45# |
Drilling Holes |
Steel 45# |
Tapping |
Steel 45# |
||
Cutting 6mm |
|
Cutter diameter Ø80 |
|
Cutting Tapping M30 |
|
||
Cutter |
Ø63mm*5T |
Cutter |
Ø80mm*2T |
Cutter |
M30*3P |
||
Spindle speed |
550rpm |
Spindle speed |
800rpm |
Spindle speed |
120rpm |
||
Feed |
F500 |
Feed |
F100 |
Feed |
F420 |
||
Width |
80mm |
Width |
80mm |
Width |
50mm |

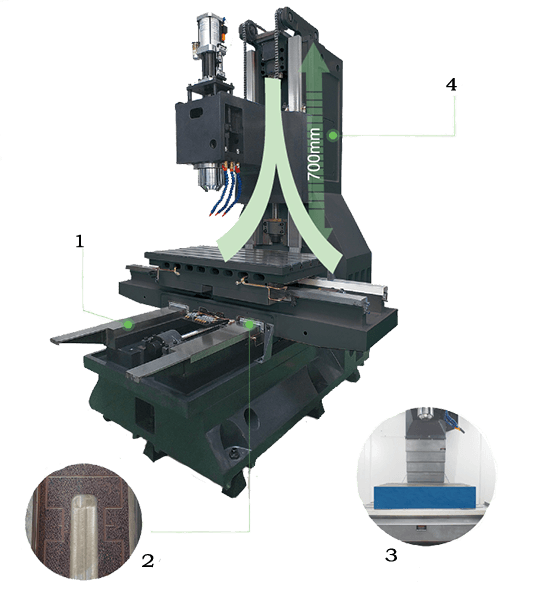

Vertical Frame Machine Structural Characteristics
![]() |
The bed is made of H300 cast iron, quenched, and all slide surfaces are precisely polished and covered with imported wear-resistant leather TURCITE-B. Ensure the accuracy and durability of the machine tool. 1. The wide and thick guide guideways ensure the stability of the machine tool during processing. 2. Scraping process 3. Each box-way type machine is subjected to load aging, and laser ballbar tests before leaving the plant. 4. T-shaped column design, the ultra-wide base for maximum rigidity with Z-axis traof 700mm. |
Vertical Machining Frame Structural Application
1. Box Parts
For example, automobile engine block and gearbox, machine tool spindle box, diesel engine block, gear pump casing, etc.
2. Complex Surface Parts
Complex curved surface parts in aviation, aerospace, transportation and other fields, such as cams, aircraft engine integral impellers, propellers, mold cavities, etc.
3.Irregular Parts
Heterogeneous parts refer to irregularly shaped parts (such as brackets, bases, profiling, etc.) that require multi-station mixed processing of points, lines, and surfaces.
4. Plate, Sleeve, Plate Parts
Such workpieces include plate-shaped parts with keyways and radial holes, hole systems and curved surfaces distributed on the end surface, or axial workpieces such as flange bushings, and plate-shaped parts that are processed more by the left hand, such as various motor covers, etc.
Vertical Machining Frame Structural Characteristics

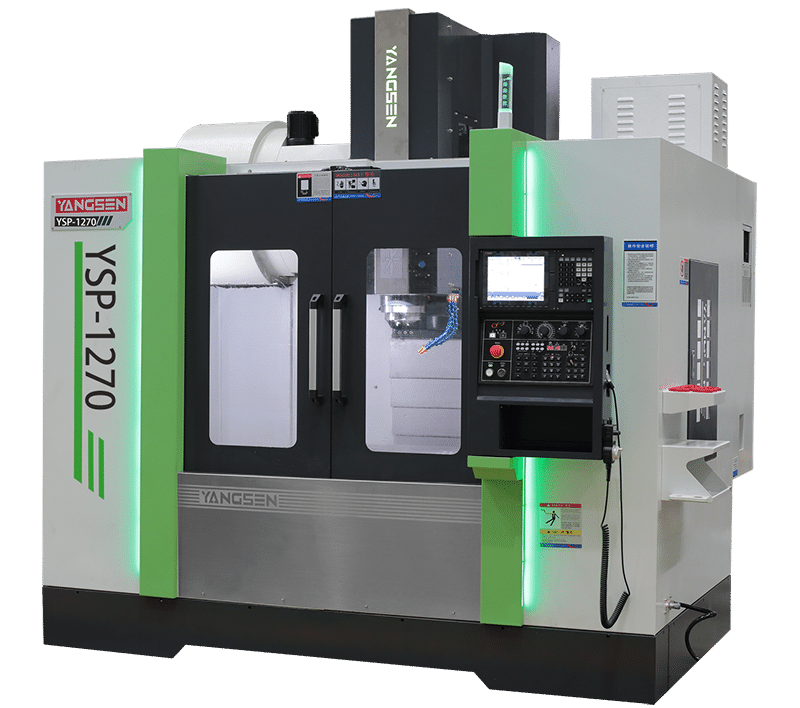

Model | YSP-1270 | ||
Subject | Specifications | Units | |
Travel | X/Y/Z axis | mm | 1200/700/600 |
Spindle Nose to Worktable | mm | 15-750 | |
Spindle Center to Column | mm | 785 | |
Three-Axis Guideway | / | Box Way (Captain Turcite) | |
Worktable | Worktable Size (L*W) | mm | 1360X600 |
Maximum Table Load | kg | 800 | |
T-Slot | mm | 5-22x153 | |
Spindle | Spindle taper | type | BBT-50 |
Spindle speed | rpm | 8000 | |
Spindle Drive Type | / | Belt | |
Feedrate | Rapid Traverse(X/Y/Z) | m/min | 10/10/10 |
Cutting Feedrate(X/Y/Z) | m/min | 10 | |
Tool Changer | Automatic fool Changer | / | ARM Type |
Type of Tool Shank | type | BT50 | |
Tool Storage Capacity | Piece | 24 | |
Max. Tool Diameter (Adjacent) | mm | 105 | |
Max. Tool Diameter (Empty) | mm | 200 | |
Max. Tool Length | mm | 350 | |
Max. Tool Weight | kg | 15 | |
Tool Change Time | sec | 4.9 | |
Motor | Spindle Motor | kw | 15 |
Three-Axis Servo Motor | kw | 3.0/3.0/4.5 | |
Accuracy | Accuracy | mm | ±0.01 |
Repeatability | mm | ±0.005 | |
Power Required | Power Requirement | kva | 30 |
Air Pressure Requirement | kg/cm² | 6^8 | |
Others | External Dimensions (L*W*H) | mm | 3600*3500*3200 |
Gross Weight | t | 10 |
Standard Accessories
Safety Door Automatic Lubricating System Fully Enclosure Guard Air Gun |
Dual LED Work Light Heat Exchange for Electric Cabinet Spindle Coolant Nozzles Coolant Gun |
Daul LED Work Light LED 3 Color Warning Light Coolant Tank & Chip Tray Tool Box |
Spindle Nose Air Blow Leveling Bolts and Pads M30 Auto Off
|
Options
Optical Linear Scale Oil Skimmer Workpiece & Tool Probe |
Tool Breakage System Chip Conveyor System Umbrella Type Auto Tool Changer (16/20) |
Oil Mist Collector Oil Skimmer Rotary Worktable (4Th-Axis) |
10000rpm DDS Spindle 12000rpm DDS Spindle Arm Type Tool Changer
|
