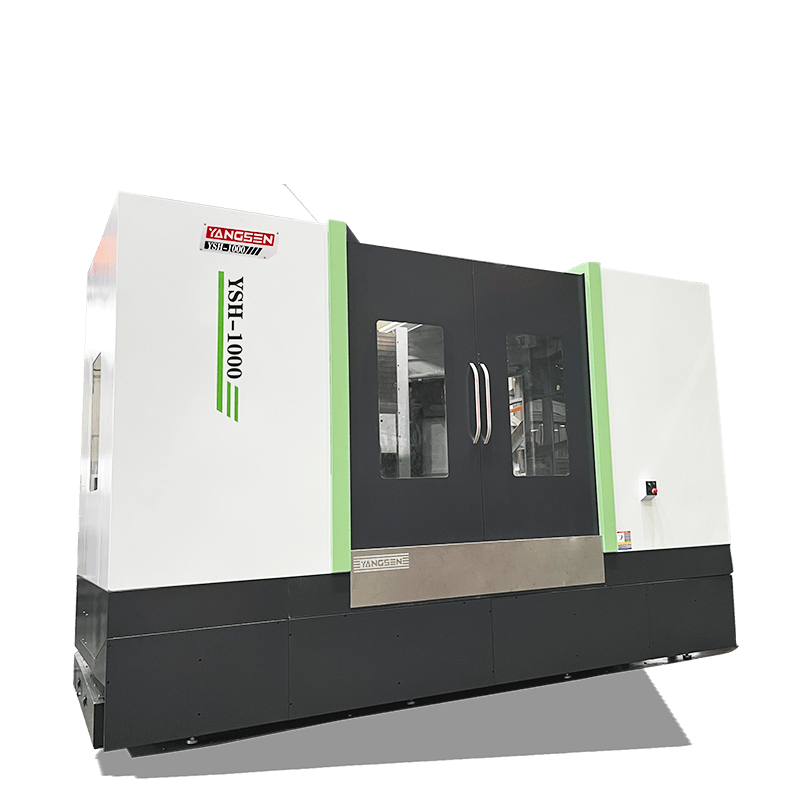

Horizontal machining center is mainly used to process parts with high precision, many processes, and complex shapes such as plates, disc parts, shell parts, molds, etc. It can continuously complete milling, drilling, expanding, reaming, and boring in one clamping.
Max. X-axis Travel :
2000mmMax. Y-axis Travel :
1400mmMax. Z-axis Travel :
1200mmMax Workpiece Length :
1000mmMax Workpieces Width :
1000mmMax Workpieces Weight :
3.0TApplication :
Auto PartsProcessing :

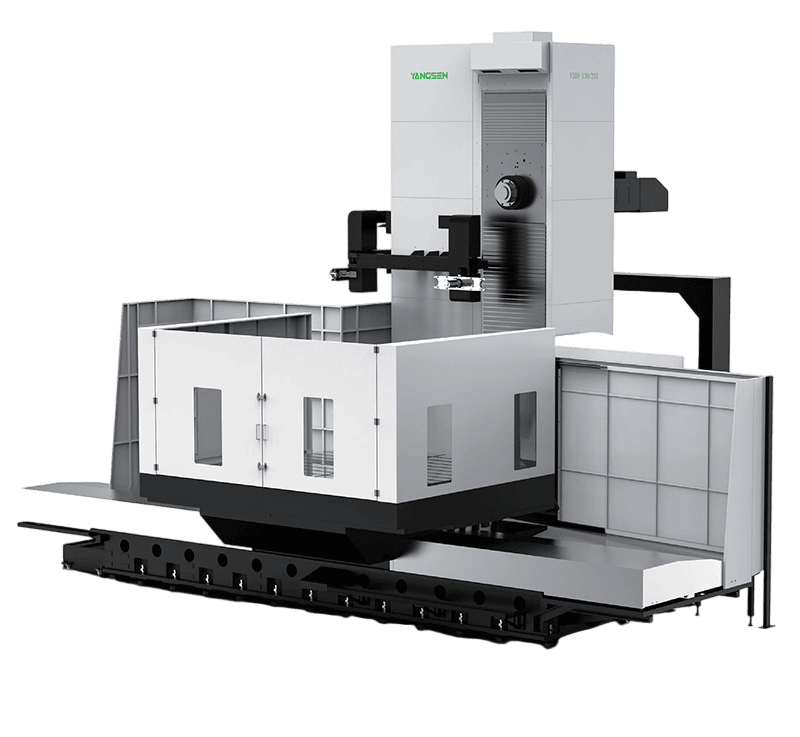

Surface Milling, Drilling Holes, TappingYSHD-1000 Horizontal Machining Center Structure Characteristics
 |
The series of high-speed precision CNC machining centers are classic models developed to meet the requirements of high speed, high cost performance, and high reliability. This series of machine tools can complete milling, drilling, tapping, and other processes. It has the characteristics of high precision, high speed, and high efficiency. It is suitable for small metal structural parts, 3C, automotive consumer products, 5G communication cavities, and related components, and other industries. The bed, worktable, sliding seat, column, spindle box, and other large parts are made of high-strength cast iron material, and the shape is resin sand process, and two aging treatments are used to eliminate stress. These large parts are optimized by SW and Ansys to improve the rigidity and stability of the large parts and the whole machine, and effectively suppress the deformation and vibration of the machine tool caused by cutting force. |
Machine Cutting Performance
|
Surface Milling |
Steel 45# |
Drilling Holes |
Steel 45# |
Tapping |
Steel 45# |
|
Cutting depth 7mm |
|
Cutter diameter Ø82 |
|
Tapping M36 |
|
|
Cutter |
Ø120mm*5T |
Cutter |
Ø82mm*2T |
Cutter |
M36*3P |
|
Spindle speed |
420rpm |
Spindle speed |
500rpm |
Spindle speed |
120rpm |
|
Feed |
F500 |
Feed |
F100 |
Feed |
F480 |
|
Width |
100mm |
Width |
82mm |
Width |
36mm |
Horizontal Machining Product Characteristics
 |
Machine Bed, Column Equilateral triangle structure of the column, multi-layer stiffeners are arranged to improve the stability of the machine bed. Positive T structure bed, X-axis stepped layout, enlarged line guideway span, rigid support. Adopt a high-strength Rexroth roller guide, high load bearing, and stable precision. |
 |
Spindle install 6 high-rigidity bearings; Outer diameter 190mm Taiwan original BBT50 spindle; Spindle air blow to prevent objects from entering the spindle; The spindle is equipped with ring spray to improve processing quality. The standard FANUC large-torque-wide-area motor ilP30/8000 is equipped with stronger heavy-cutting ability. |
 |
Optical Linear Scales Optional Heidenhain, Fagor Optical Linear Scales, accuracy ± 5um, to ensure machine tool positioning accuracy. |
 |
Double exchange table/ four-axis turntable Realize workpiece exchange and improve processing efficiency; The workpiece is placed outside for easy clamping; High rigidity alloy turbine, wear-resistant, high positioning accuracy; Heavy locking, reduces deformation, resistant to heavy cutting. |
 |
Tool magazine Using Taiwan imported frequency conversion tool magazine, tool change speed is fast and stable. |
Horizontal Machining Center Parameters
| Model | YSHD-1000 | ||
| Subject | Specifications | Units | |
| Travel | X/Y/Z axis | mm | 2000/1400/1200 |
| Spindle Nose to Worktable | mm | 300-1700 | |
| Spindle Center to Column | mm | 350-1550 | |
| Three-Axis Guideway | Roller Linear Guideway | ||
| Worktable | Worktable Size (L*W) | mm | 1000*1000 |
| Maximum Table Load | t | 3 | |
| Table Screw | mm | ||
| T-Slot | mm | 5-22x100 | |
| Number of Pallet | pcs | 1 | |
| Table Indexing | 1°/0.001° | ||
| Maximum Turning Diameter | mm | φ1600 | |
| Spindle | Spindle Taper | type | BBT-50 |
| Spindle Speed | rpm | 6000 | |
| Spindle Drive Type | Belt | ||
| Feedrate | Rapid Traverse(X/Y/Z) | m/min | 8/10/8 |
| Cutting Feedrate(X/Y/Z) | m/min | 10 | |
| Tool Changer | Automatic Tool Changer | ARM Type (Servo Drive) | |
| Type of Tool Shank | type | BT-50 | |
| Tool Storage Capacity | Piece | 24 | |
| Max. Tool Diameter (Adjacent) | mm | 112 | |
| Max. Tool Diameter (Empty) | mm | 200 | |
| Max. Tool Length | mm | 300 | |
| Max. Tool Weight | kg | 18 | |
| Tool Change Time | sec | 4.9 | |
| Motor | Spindle Motor | kw | 15/18.5 |
| Three-Axis Servo Motor | kw | 3.0/3.0/3.0 | |
| Accuracy | Accuracy | mm | ±0.008 |
| Repeatability | mm | ±0.005 | |
| Power Required | Power Requirement | kva | 35 |
| Air Pressure Requirement | kg/cm² | 6^8 | |
| Others | External Dimensions (L*W*H) | mm | 8160*6135*4100 |
| Gross Weight | t | 20 | |
|
Arm Type Tool Changer
Automatic Lubricating System
Fully Enclosure Guard
|
Rigid Tapping
Heat Exchange for Electric Cabinet
Coolant Tank & Chip Tray
|
Daul LED Work Light
LED 3 Color Warning Light
M30 Auto Off
|
Spindle Nose Air Blow
Leveling Bolts and Pads
|
|
Optical Linear Scale
CTS
|
Tool Breakage System
Chain Type Chip Conveyor System
|
Oil Mist Collector
Oil Skimmer
|
Rotary Table
Workpiece &Tool Probe
|
