CNC vertical machine center The feed axis of the vertical machining center is controlled by X, Y, and Z coordinates. The main shaft is driven by a servo motor. It can realize the drilling, milling, boring, expansion, reaming, tapping and other processes of complex parts such as various disks, plates, shells, cams, molds, etc., and three-axis roller lines. Rail structure, suitable for single-piece and mass production of various complex parts in various industries.
Max. X-axis Travel :
1000mmMax. Y-axis Travel :
600mmMax. Z-axis Travel :
680mmMax Workpiece Length :
1100mmMax Workpieces Width :
600mmMax Workpieces Weight :
10000KGApplication :
Auto PartsProcessing :
Surface Milling, Drilling Holes, TappingVertical Machining Structural Characteristics
 |
CNC vertical machine center The feed axis of the vertical machining center is controlled by X, Y, and Z coordinates. The main shaft is driven by a servo motor. It can realize the drilling, milling, boring, expansion, reaming, tapping and other processes of complex parts such as various disks, plates, shells, cams, molds, etc., and three-axis roller lines. Rail structure, suitable for single-piece and mass production of various complex parts in various industries. |
Machine Cutting Performance
|
Surface Milling |
Steel 45# |
Drilling Holes |
Steel 45# |
Tapping |
Steel 45# |
||
|
Cutting depth 7mm |
|
Cutter diameter Ø80 |
|
Tapping M30 |
|
||
|
Cutter |
Ø125mm*5T |
Cutter |
Ø80mm*2T |
Cutter |
M30*3P |
||
|
Spindle speed |
550rpm |
Spindle speed |
800rpm |
Spindle speed |
120rpm |
||
|
Feed |
F500 |
Feed |
F100 |
Feed |
F420 |
||
|
Width |
80mm |
Width |
80mm |
Width |
50mm |
||

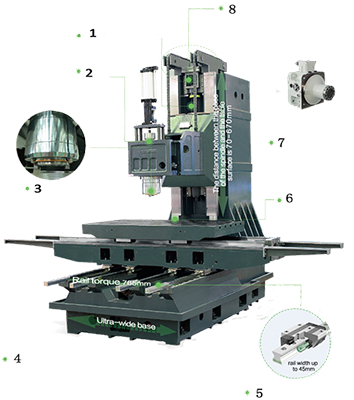

Vertical Frame Machine Structural Characteristics
 |
Japan NBK coupling/Japan NSK bearing Taiwan PMI outer diameter 50mm C3 grade ballscrew 1. Ballscrew pre-tensioning treatment to prevent hot stretch. 2. Box-way design at the rear of the spindle head, triangular structure, Z-axis 6-slider support, super rigid. 3. Install Taiwan Φ155 high rigidity BBT50, 6000rpm, 6 bearings, coolant nozzles design. 4. Three-axis travel X: 1300/Y: 750/Z: 680 Reserved for optical linear scales installation. 5. The Y-axis is supported by 4 German Rexroth ball linear guideway for maximum rigidity and accuracy. 6. Worktable: 1360*700 mm 7. BF Gearbox. Optional Italian BF gearbox, super cutting ability, high and low gear functions, stepless gear change. The bad is made of precision HT300 high grade cast iron |

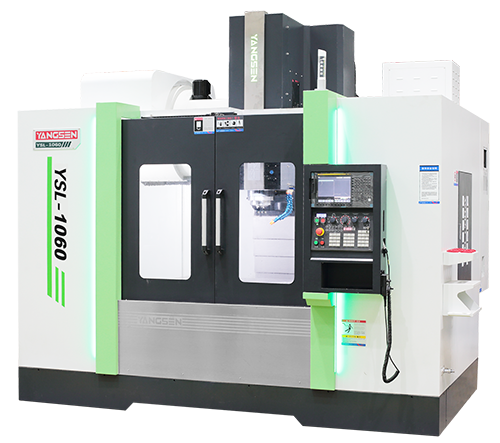

| Model | YSL-1060 | ||
| Subject | Specifications | Units | |
| Travel | X/Y/Z axis | mm | 1000/600/680 |
| Spindle Nose to Worktable | mm | 120-800 | |
| Spindle Center to Column | mm | 620 | |
| Three-Axis Guideway | / | X/Y Roller Linear Guideway & Z Box Way | |
| Worktable | Worktable Size (L*W) | mm | 1100x600 |
| Maximum Table Load | kg | 1000 | |
| T-Slot | mm | 5-18x90 | |
| Spindle | Spindle taper | type | BBT-40 |
| Spindle speed | rpm | 10000 | |
| Spindle Drive Type | / | Belt | |
| Feedrate | Rapid Traverse (X/Y/Z) | m/min | 30/30/15 |
| Cutting Feedrate (X/Y/Z) | m/min | 10 | |
| Tool Changer | Automatic Tool Changer | / | ARM Type |
| Type of Tool Shank | type | BT50 | |
| Tool Storage Capacity | Piece | 24 | |
| Max. Tool Diameter (Adjacent) | mm | 80 | |
| Max. Tool Diameter (Empty) | mm | 120 | |
| Max. Tool Length | mm | 300 | |
| Max. Tool Weight | kg | 7 | |
| Tool Change Time | sec | 1.4 | |
| Motor | Spindle Motor | kw | 7.5/11 |
| Three-Axis Seiw Motor | kw | 2.0/2.0/3.0 | |
| Accuracy | Accuracy | mm | ±0.005/300 |
| Repeatability | mm | ±0.003 | |
| Power Required | Power Requirement | kva | 20 |
| Air Pressure Requirement | kg/cm² | 6^8 | |
| Others | External Dimensions (L*W*H) | mm | 2530x2800x2850 |
| Gross Weight | t | 7 | |
