CNC Horizontal Machining Centers with automatic pallet changers are designed for higher efficiency and reliability. HMCs are also designed to be more rigid and with larger tool storage capacities. This design allows for increased repeatability and overall versatility. Horizontal Machining Centers without pallet changers are also available if you are just looking for a more rigid solution over a vertical machining center.
Max. X-axis Travel :
1100mmMax. Y-axis Travel :
750mmMax. Z-axis Travel :
950mmMax Workpiece Length :
630mmMax Workpieces Width :
630mmMax Workpieces Weight :
1.2TApplication :
Auto PartsProcessing :

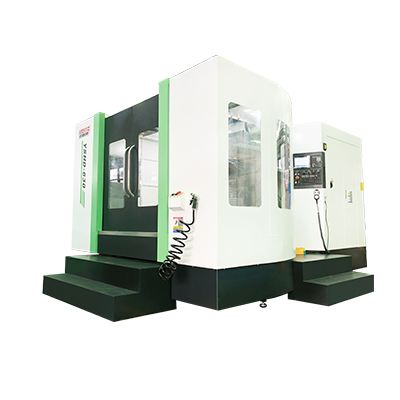

Surface Milling, Drilling Holes, TappingYSHD-630 HMC Structure Characteristics
 |
The CNC Horizontal Machining Center Series with automatic pallet changer combine proven machine design with advanced technology in control and manufacturing. Reliability and performance make this series a favorite among demanding job shops and in-house productions alike. The heavy cutting spindle and rigid machine structure enable higher machining efficiency with a better finish and longer tool life – resulting in greater productivity and profitability all around. Upgrade your global competitiveness today. |
Machine Cutting Performance
|
Surface Milling |
Steel 45# |
Drilling Holes |
Steel 45# |
Tapping |
Steel 45# |
|
Cutting depth 7mm |
|
Cutter diameter Ø82 |
|
Tapping M36 |
|
|
Cutter |
Ø120mm*5T |
Cutter |
Ø82mm*2T |
Cutter |
M36*3P |
|
Spindle speed |
420rpm |
Spindle speed |
500rpm |
Spindle speed |
120rpm |
|
Feed |
F500 |
Feed |
F100 |
Feed |
F480 |
|
Width |
100mm |
Width |
82mm |
Width |
36mm |
YSHD-630 Horizontal Machining Product Characteristics
 |
Machine Bed, Column Equilateral triangle structure of the column, multi-layer stiffeners are arranged to improve the stability of the machine bed. Positive T structure bed, X-axis stepped layout, enlarged line guideway span, rigid support. Adopt a high-strength Rexroth roller guide, high load bearing, and stable precision. |
 |
Spindle install 6 high-rigidity bearings; Outer diameter 190mm Taiwan original BBT50 spindle; Spindle air blow to prevent objects from entering the spindle; The spindle is equipped with ring spray to improve processing quality. The standard FANUC large-torque-wide-area motor ilP30/8000 is equipped with stronger heavy-cutting ability. |
 |
Optical Linear Scales Optional Heidenhain, Fagor Optical Linear Scales, accuracy ± 5um, to ensure machine tool positioning accuracy. |
 |
Double exchange table/ four-axis turntable Realize workpiece exchange and improve processing efficiency; The workpiece is placed outside for easy clamping; High rigidity alloy turbine, wear-resistant, high positioning accuracy; Heavy locking, reduces deformation, resistant to heavy cutting. |
 |
Tool magazine Using Taiwan imported frequency conversion tool magazine, tool change speed is fast and stable. |
YSHD-630 Horizontal Machining Machine Parameters
| Model | YSHD-630 | ||
| Subject | Specifications | Units | |
| Travel | X/Y/Z axis | mm | 1100/750/950 |
| Spindle Nose to Worktable | mm | 120-870 | |
| Spindle Center to Column | mm | 130-1080 | |
| Three-Axis Guideway | Roller Linear Guideway | ||
| Worktable | Worktable Size (L*W) | mm | 630*630 |
| Maximum Table Load | t | 1.2 | |
| Table Screw | mm | ||
| T-Slot | mm | 5-18x100 | |
| Number of Pallet | pcs | 1 | |
| Table Indexing | 1°/0.001° | ||
| Maximum Turning Diameter | mm | φ1100 | |
| Spindle | Spindle Taper | type | BBT-50 |
| Spindle Speed | rpm | 8000 | |
| Spindle Drive Type | Belt | ||
| Feedrate | Rapid Traverse(X/Y/Z) | m/min | 30/30/30 |
| Cutting Feedrate(X/Y/Z) | m/min | 10 | |
| Tool Changer | Automatic Tool Changer | ARM Type (Servo Drive) | |
| Type of Tool Shank | type | BT-50 | |
| Tool Storage Capacity | Piece | 24 | |
| Max. Tool Diameter (Adjacent) | mm | 112 | |
| Max. Tool Diameter (Empty) | mm | 200 | |
| Max. Tool Length | mm | 300 | |
| Max. Tool Weight | kg | 18 | |
| Tool Change Time | sec | 4.2 | |
| Motor | Spindle Motor | kw | 15/18.5 |
| Three-Axis Servo Motor | kw | 3.0/3.0/3.0 | |
| Accuracy | Accuracy | mm | ±0.005 |
| Repeatability | mm | ±0.003 | |
| Power Required | Power Requirement | kva | 30 |
| Air Pressure Requirement | kg/cm² | 6^8 | |
| Others | External Dimensions (L*W*H) | mm | 4905*3510*3255 |
| Gross Weight | t | 12 | |
|
Arm Type Tool Changer
Automatic Lubricating System
Fully Enclosure Guard
|
Rigid Tapping
Heat Exchange for Electric Cabinet
Coolant Tank & Chip Tray
|
Daul LED Work Light
LED 3 Color Warning Light
M30 Auto Off
|
Spindle Nose Air Blow
Leveling Bolts and Pads
|
|
Optical Linear Scale
CTS
|
Tool Breakage System
Chain Type Chip Conveyor System
|
Oil Mist Collector
Oil Skimmer
|
Rotary Table
Workpiece &Tool Probe
|
