Max. X-axis Travel :
550mmMax. Y-axis Travel :
650mmMax. Z-axis Travel :
550mmMax Workpiece Length :
2100mmMax Workpieces Width :
550mmMax Workpieces Weight :
1500KGApplication :
Auto Parts, Bathroom ProductsProcessing :
Milling, Drilling, Tapping |
High Rigidity

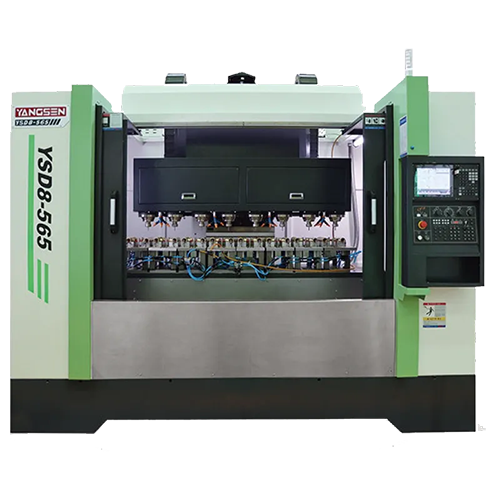

Column double-arm structure design; X/Z axis 6 sliding seat support, strong rigidity to ensure powerful cutting; three axis installs NSK Φ40mmC3 grade ballscrew, NSK original bearing (3062), 3+2 mode, pre-tensioning treatment to prevent thermal change bit.
High Efficiency It can process 8 parts at the same time, the maximum speed of the eight electric spindles is 18000rpm, and the surface quality of the processing is high. High Configuration Mitsubishi M80 system is stable, high-speed and high-precision; the three-axis motor upgrades XY axis 3KW (HG303), Z axis 4.5KW (HG453), and the configuration of high-power torque motor can better adapt to the high rigidity characteristics of the machine tool; the machine tool is equipped with brand-name components, such as : Schneider Electric. Japanese SHOWA oil pump lubrication system, SMC pneumatic components. |
 |
 |
| Faucet peeling | Polished surface of heat sink |
Customized Parameters
| Model | YSD8-565 | ||
| Subject | Specifications | Units | |
| Travel | X/Y/Z axis | mm | 550/650/550 |
| Spindle Nose to Worktable | mm | 150-700 | |
| Spindle Center to Column | mm | 700 | |
| Three-Axis Guideway | / | Roller Linear Guideway | |
| Worktable | Worktable Size (L*W) | mm | 2100x550 |
| Maximum Table Load | kg | 1500 | |
| Countertop bolt hole | mm | / | |
| T-Slot | mm | 3-18x140 | |
| Worktable Indexing | / | / | |
| Spindle | Spindle taper | type | BT30 |
| Spindle speed | rpm | 24000 | |
| Spindle Drive Type | / | Built-In | |
| Feedrate | Rapid Traverse (X/Y/Z) | m/min | 30/30/30 |
| Cutting Feedrate (X/Y/Z) | m/min | 10 | |
| Tool Changer | Automatic Tool Changer | / | 直排式 |
| Motor | Spindle Motor | kw | 7.5*8 |
| Three-Axis Servo Motor | kw | 3.0/3.0/4.5 | |
| Accuracy | Accuracy | mm | ±0.005 |
| Repeatability | mm | ±0.003 | |
| Power Required | Power Requirement | kva | 20 |
| Air Pressure Requirement | kg/cm² | 6^8 | |
| Others | External Dimensions (L*W*H) | mm | 3100*2600*3050 |
| Gross Weight | t | 9.8 | |
Standard Accessories
|
Safety Door Heat Exchange for Electric Cabinet Coolant Tank & Chip Tray |
Dual LED Work Light LED 3 Color Warning Light Air Gun |
Spindle Nose Air Blow Leveling Bolts and Pads Coolant Gun |
Automatic Lubricating System Fully Enclosure Guard M30 Auto Off |
Options
|
Optical Linear Scale Oil Skimmer |
Tool Breakage System Workpiece &Tool Probe |
Oil Mist Collector Arm Type Tool Changer |
CTS
|
